Entel DT985 ATEX IIC UHF DMR Digital Two Way Radio
The industrial grade DTEx DMR Digital Series is the latest addition to our range of Intrinsically Safe radios. The rugged DTEx delivers exceptionally loud audio coupled with outstanding audio clarity and the ergonomic controls are specifically designed for gloved hand use.
With a market-leading IP68 rating (2-meters 4-hours) the fully submersible, MIL-STD-810 DTEx can be depended on to withstand the most extreme and hostile of environments.
Entel DT985 ATEX UHF Digital Two Way Radio General Features
Robust accessory socket
DT985 accessory socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. The rugged, multi-pin interface and Micro-USB socket are both submersible and gold-plated to minimize any risk of damage and protect against corrosion. To ensure the integrity of IS protection levels any accessory connected to the handset automatically undergoes a validation process to safeguard against non-compliant accessories being used. All DT885FF accessories incorporate a robust locking connector to further safeguard the safety of the user.
Channels
The DT985 can be programmed with both analogue and digital channels, this is clearly indicated on the display together with the frequency. If a semi duplex channel is programmed the word “Repeater” will be displayed instead of the frequency.
Benefits of digital
Digital mode which gives significantly better audio, extended range and longer battery life in comparison to analogue radios.
Voice annunciation
This programmable feature announces either the channel position selected or a marine channel number (alias) - this gives further assurance to the user that they’ve selected the correct channel allowing them to focus on the task in hand.
Environmental protection to IP68 (2 Meters for 4 hours)
The DT985 offers the highest submersibility rating of any manufacturer. This protects against corrosion, withstanding total immersion in water to a depth of 2 meters for 4 hours to protect against the likely hazards encountered in extremely wet environments.

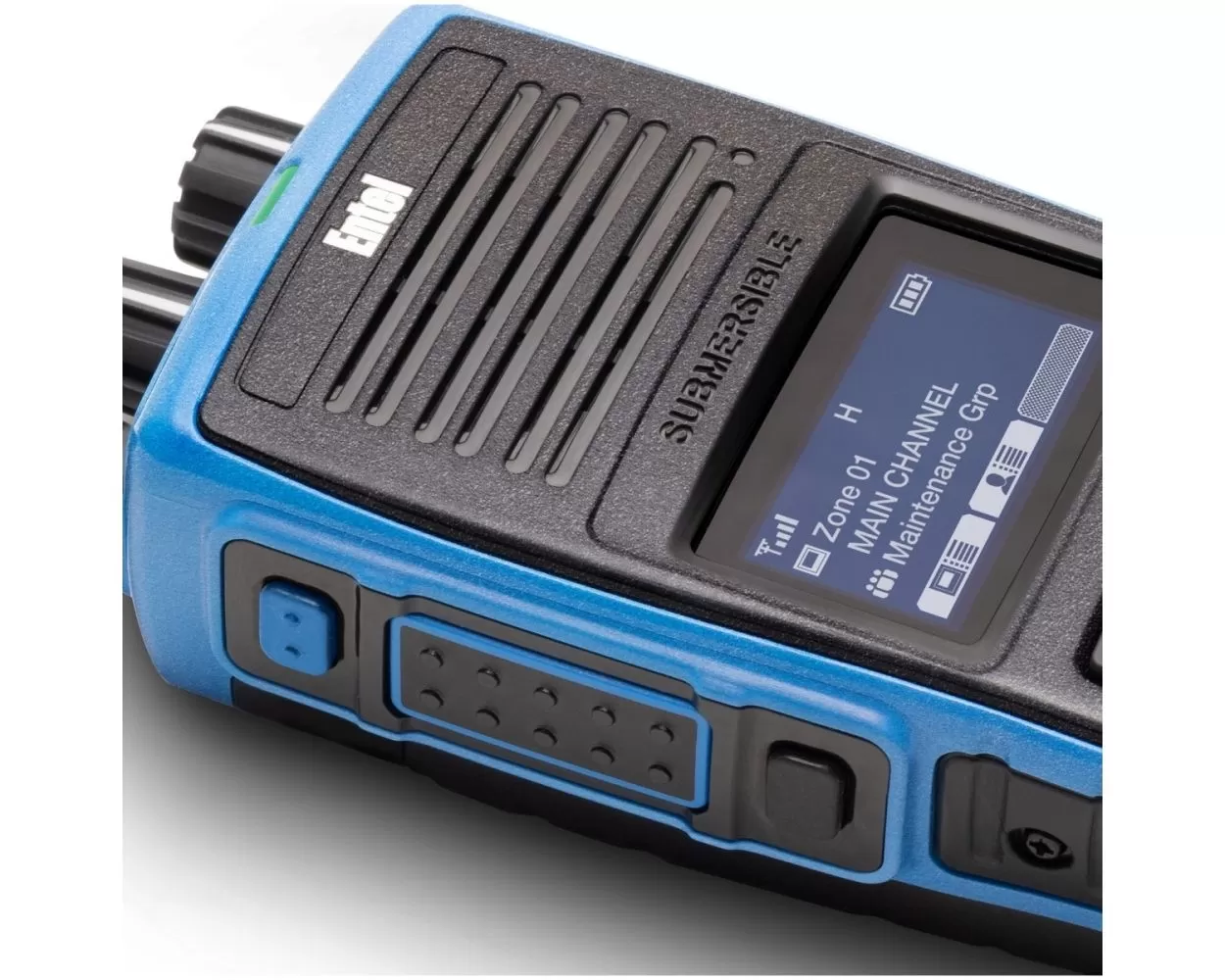

High contrast white on black OLED display
the DT985 model benefits from a high contrast white on black OLED display that delivers superior readability in varying light conditions adding to the DT985’s intuitive user interface.
Li-Ion battery technology & improved talk time
DT985 radios are supplied with the latest intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’, meaning that there is no need to fully discharge your battery before recharging. As a result of this, you are assured of a full charge each and every time you take your Entel battery from its charger.
Superior Audio
DT985 portables deliver loud & crisp audio no matter what environment you are in. All of the DT985's range of accessories incorporate a robust locking plug and high-grade cable and benefit from Entel’s proprietary “Smart Speech Tailoring” technology. This automatically detects the type of accessory connected and optimizes the audio accordingly to deliver the very best performance.
Entel DT985 ATEX UHF Digital Two Way Radio Convenience Features
Audio Accessories & BA Support
Entel also offer an extensive range of accessories including Draegor BA, most popular for Fire Fighters is the CXR bone conductive throat and skull microphones which eliminate ambient noise, further enhanced by DT985's speech tailoring technology delivering intelligible communications first time, every time
Simple onboard reprogramming app
With our free, unique and simple to use PC app, you can easily re-program a DT985 radio whilst still onboard. The user friendly app makes it easy to drag and drop a new programming file from an email to your DT985 radio(s).
This is a simple and seamless process that can be carried out by non-technical personnel.
Keylock
To avoid accidental operation, your radio's keys & controls can be locked.
Programmable channel monitor button
If you have channel protection enabled on your DT985 portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.
Scan
a programmable button allows channel scanning.
Entel DT985 ATEX UHF Digital Two Way Radio Safety Features
Entel DT985 ATEX UHF Digital Two Way Radio Key Features:
- 256 RF Channels, 8 Zones (2048 Channel pre-sets in total)
- IP68 Submersible (2m, 4 hours)
- MILSTD construction 810C/D/E/F/G
- High capacity Li-Ion battery
- Multiple channel zones
- Exceptionally loud & best clarify audio - in class
- 2 slot simplex
- Multiple receive groups
- Talker alias
- Lone-Worker & Man-Down
- Personal attack button
- Group calling
- Individual calling
- Caller ID
- Detailed or large display info - programmable
- Programmable buttons
- Gold plated accessory connector
- Locking accessory connector
- Accessory audio tailoring optimises audio for each accessory
- High contrast white on black OLED
- Drag and drop end user programmer
Entel DT985 ATEX UHF Digital Two Way Radio In Development Features:
- Receive text messaging
- Scan
- Channel voice annunciation
- All call
- AES 128 bit encryption
- AES 256 bit encryption
- ARC 4 40 bit encryption
- Transmit text messaging
- Programmable switch on logo
- Advanced voice annunciation (battery capacity etc.)
- Tier III trunking
- Remote mic live
- Call recording
- VOX
Entel DT985 ATEX UHF Digital Two Way Radio General Specifications:
| Frequency Range | UHF 400-470MHz |
| Channel Spacing | 12.5 & 25KHz |
| Operating Voltage | 7.4v |
| Weight | 435g |
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm |
| Programmable Buttons | 5 |
| Channels | up to 256 |
| Battery | CNB950EV2 1800mAh Lithium-Ion |
| Battery Endurance (5/5/90) Analogue mode | 14 hours |
| Battery Endurance (5/5/90) Digital mode | 17.5 hours |
Entel DT985 ATEX UHF Digital Two Way Radio Transmitter Specifications:
| Output Power UHF | ATEX IIC 1 Watt |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz |
| Conducted / Radiated Spurious Emissions | Better than -36dBm |
| Adjacent Channel Power | Better than 60dB |
| Audio Distortion (typical) | 3% |
Entel DT985 ATEX UHF Digital Two Way Radio Receiver Specifications:
| Sensitivity (Typical) | Analogue -121dBm (0.2uV) for 12dB SINAD Digital -121dBm (0.2uV) for 5% BER |
| Intermodulation response rejection (ETSI) | > 70dB |
| Adjacent Channel Selectivity (ETSI) | > 70dB(12.5KHz) 60dB(25KHz) |
| Spurious Response Rejection (ETSI) | > 70dB |
| Audio Output Power | 1 Watts |
| Audio Distortion (typical) | 3% |
| Conducted Spurious Emission (ETSI) | > - 57dBm |
Entel DT985 ATEX UHF Digital Two Way Radio Environmental Specifications:
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | MIL-STD810 C/D/E/F/G |
| Water Ingress | IP68 2 metres, 4 hours submersible |

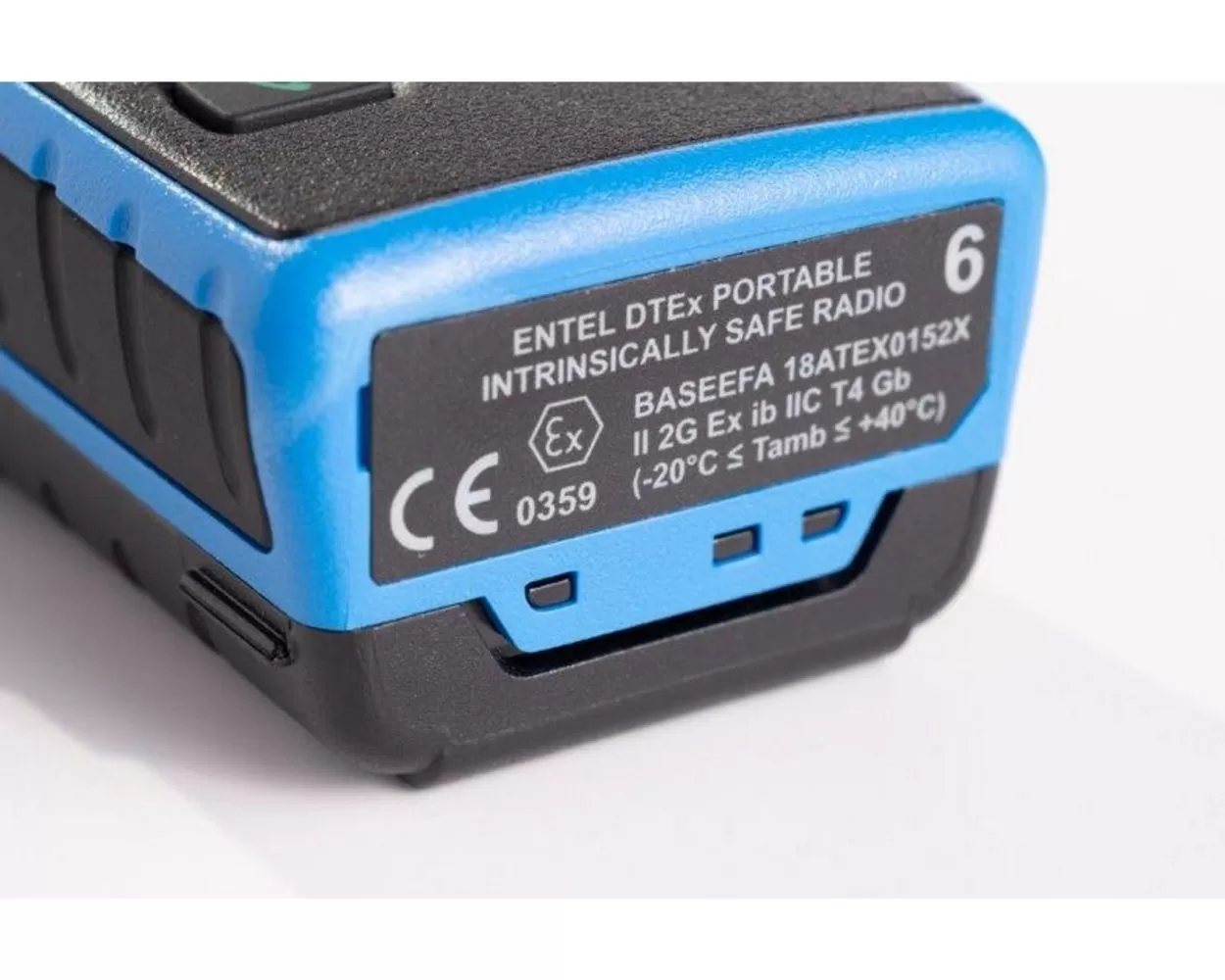

| Ex Protection | ATEX II 2G Ex ib IIC T4 Gb |
