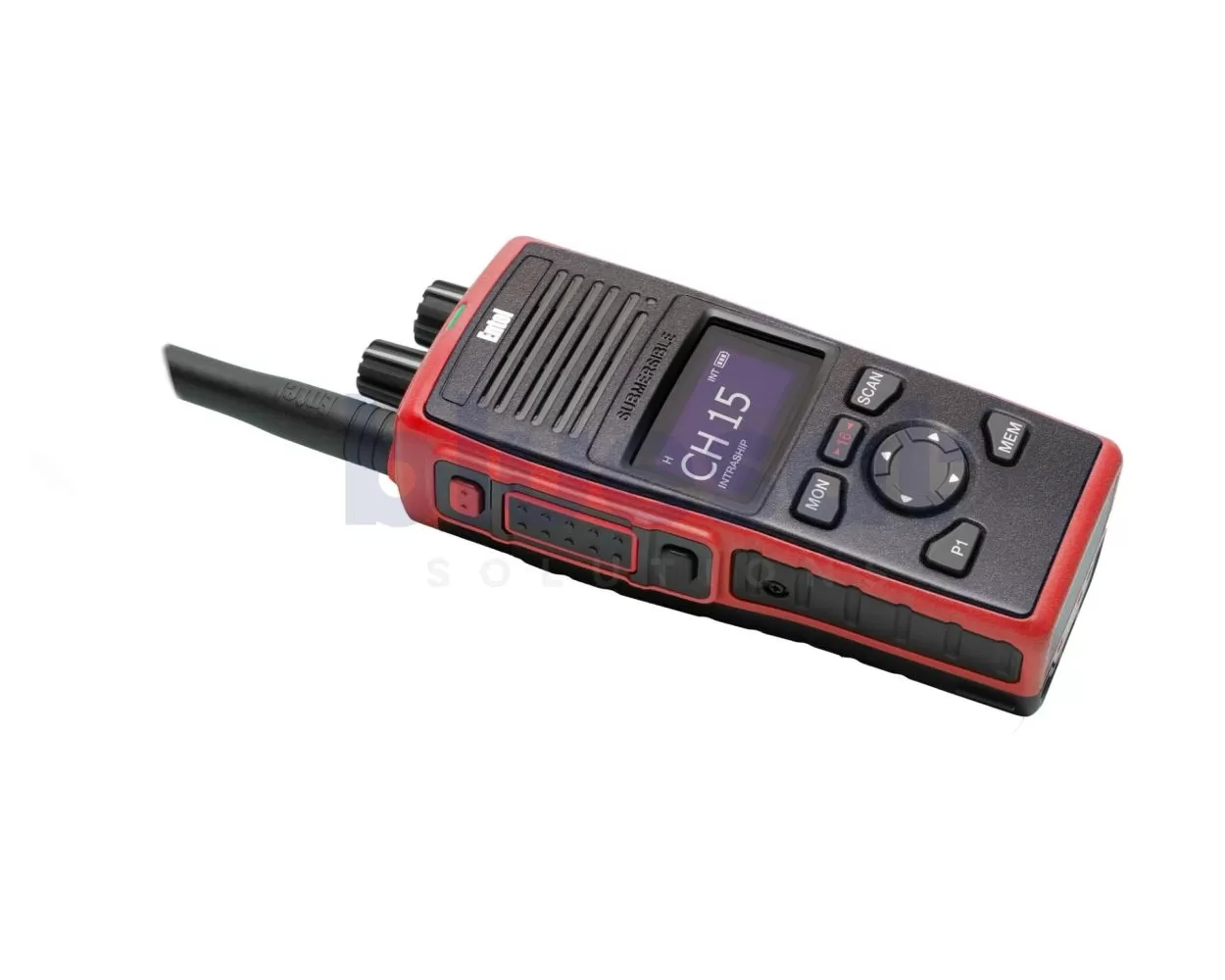

Entel DT985FF Fire Fighter Portable Radio MED, ATEX
The industrial grade DTEx Fire Fighter Series is designed and approved to meet the latest MED standard implementation regulation MED/5.20 and European ATEX directive.
Available in both VHF and UHF models, the ultra durable fire-red coloured DTEx Series sets the benchmark for next-generation MED compliant Firefighter radios.
Standard features include both analogue and digital modes of operation, high visibility OLED display, high torque ergonomic controls designed for gloved-hand use, and industry-leading IP68 2m 4 hours submersible rating, to provide 100% reliability and usability even in the most extreme conditions.
MED Approved Fire Fighter Portable Radio
Entel DTEx Fire Fighter Series is designed and approved to meet the latest MED standard implementation regulation MED/5.20 and European ATEX directive.
Entel DT985FF Fire Fighter Portable Radio General Features:
Channels
The DT985FF Marine can be programmed with both analogue and digital channels, this is clearly indicated on the display together with the frequency. If a semi duplex channel is programmed the word “Repeater” will be displayed instead of the frequency.
Benefits of digital
Digital mode which gives significantly better audio, extended range and longer battery life in comparison to analogue radios.
Li-Ion battery technology & improved talk time
DT985FF radios are supplied with the latest intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’, meaning that there is no need to fully discharge your battery before recharging. As a result of this, you are assured of a full charge each and every time you take your Entel battery from its charger.

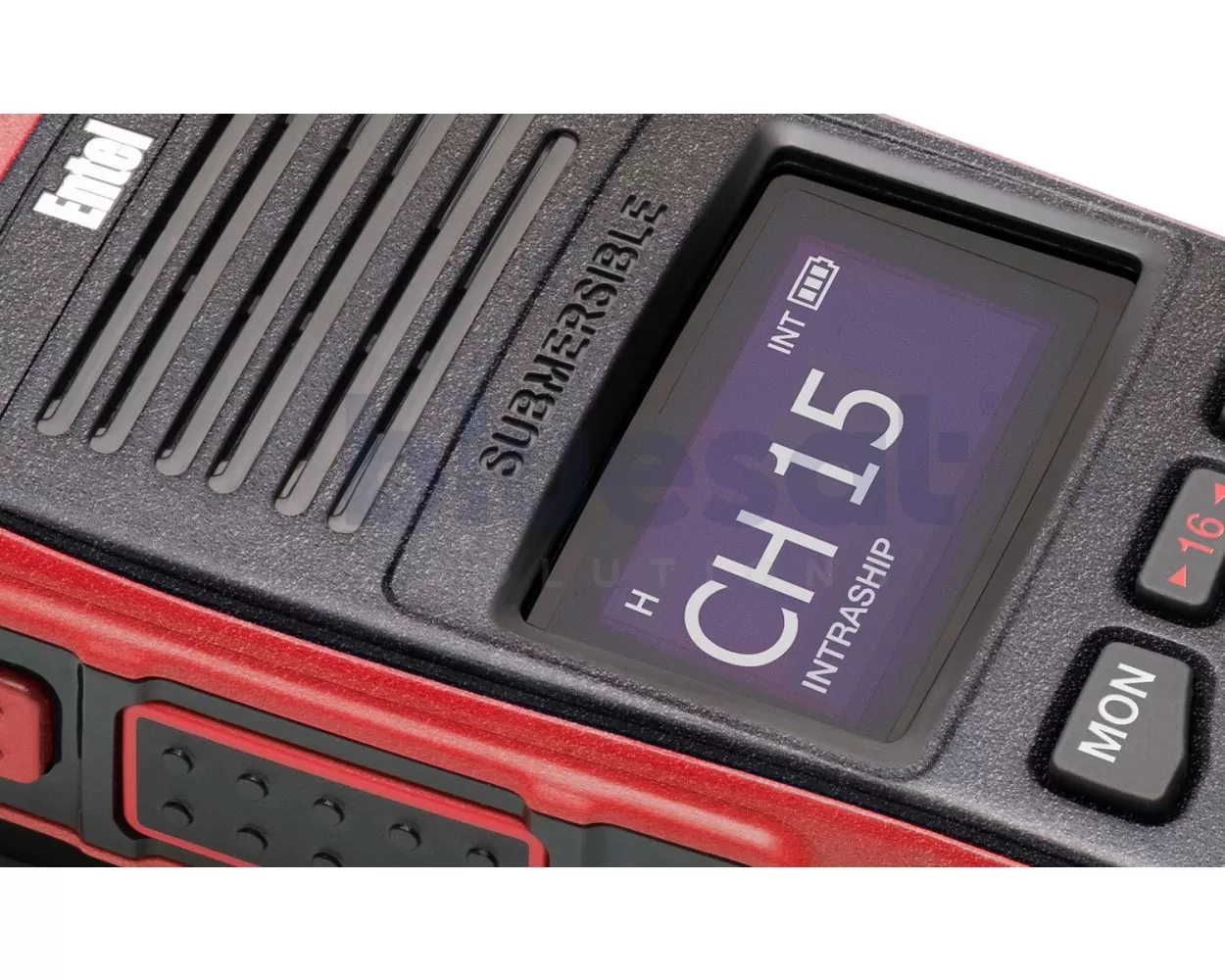

High contrast white on black OLED display
the DT985FF model benefits from a high contrast white on black OLED display that delivers superior readability in varying light conditions adding to the DT985FF’s intuitive user interface.
Robust accessory socket
DT985FF accessory socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. The rugged, multi-pin interface and Micro-USB socket are both submersible and gold-plated to minimize any risk of damage and protect against corrosion. To ensure the integrity of IS protection levels any accessory connected to the handset automatically undergoes a validation process to safeguard against non-compliant accessories being used. All DT985FF accessories incorporate a robust locking connector to further safeguard the safety of the user.
Environmental protection to IP68 (2 Meters for 4 hours)
The DT985FF offers the highest submersibility rating of any manufacturer. This protects against corrosion, withstanding total immersion in water to a depth of 2 meters for 4 hours to protect against the likely hazards encountered in extremely wet environments.
Programmable channel monitor button
If you have channel protection enabled on your DT985FF portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.
Entel DT985FF Fire Fighter Portable Radio Convenience Features:
Keylock
To avoid accidental operation, your radio's keys & controls can be locked.
Simple onboard reprogramming app
With our free, unique and simple to use PC app, you can easily re-program a DT985FF radio whilst still onboard. The user friendly app makes it easy to drag and drop a new programming file from an email to your DT985FF radio(s).
This is a simple and seamless process that can be carried out by non-technical personnel.
Superior Audio
DT985FF portables deliver loud & crisp audio no matter what environment you are in. All of the DT985FF's range of accessories incorporate a robust locking plug and high-grade cable and benefit from Entel’s proprietary “Smart Speech Tailoring” technology. This automatically detects the type of accessory connected and optimizes the audio accordingly to deliver the very best performance.
Audio Accessories & BA Support
Entel also offer an extensive range of accessories including Draegor BA, most popular for Fire Fighters is the CXR bone conductive throat and skull microphones which eliminate ambient noise, further enhanced by DT985FF's speech tailoring technology delivering intelligible communications first time, every time.
Scan
a programmable button allows channel scanning.
Entel DT985FF Fire Fighter Portable Radio Safety Features:
ATEX IIC T4 Approved
The DT985FF ATEX certified portables meet IIC T4 - the most stringent ATEX ratings as per EU directive 94/9/EC.
Entel DT985FF Fire Fighter Portable Radio Includes:
- Li-Ion battery pack
- Rapid Charger
- Belt Clip
- High Efficiency Antenna
- Quick Start User Guide
Entel DT985FF Fire Fighter Portable Radio General Specification:
| Frequency Range | UHF 450 – 470MHz |
| Channels | Marine UHF |
| Battery | CNB950EV2 1800mAh Lithium-Ion |
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm |
| Frequency Stability | ± 0.5ppm |
| Operating Voltage | 7.4v |
| Programmable Buttons | 5 |
| Channel Spacing | 12.5/25KHz |
| Battery Endurance (5/5/90 - Analog Mode) | 14 hours |
| Battery Endurance (5/5/90 - DMR Mode) | 18.5 hours |
Entel DT985FF Fire Fighter Portable Radio Transmitter Specification:
| Output Power | 1 Watt |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz |
| Conducted / Radiated Spurious Emissions | Better than -36dBm |
| Adjacent Channel Power | Better than 60dB |
| Audio Distortion (typical) | 3% |
Entel DT985FF Fire Fighter Portable Radio Receiver Specification:
| Sensitivity (typical) | -121dBm (0.2uV) for 12dB SINAD |
| Intermodulation response rejection (ETSI) | > 70dB |
| Adjacent Channel Selectivity (ETSI) | > 70dB(12.5KHz) 60dB(25KHz) |
| Spurious Response Rejection (ETSI) | > 70dB |
| Audio Output Power | 1-Watts |
| Audio Distortion (typical) | 3% |
| Conducted Spurious Emission (ETSI) | > - 57dBm |
Entel DT985FF Fire Fighter Portable Radio Environmental Specification:
| Ex Protection | ATEX II 2G Ex ib IIC T4 Gb |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | MIL-STD-810 C/D/E/F/G |
| Dust & Liquid Ingress | IP68 (2m 4h Submersible) |
