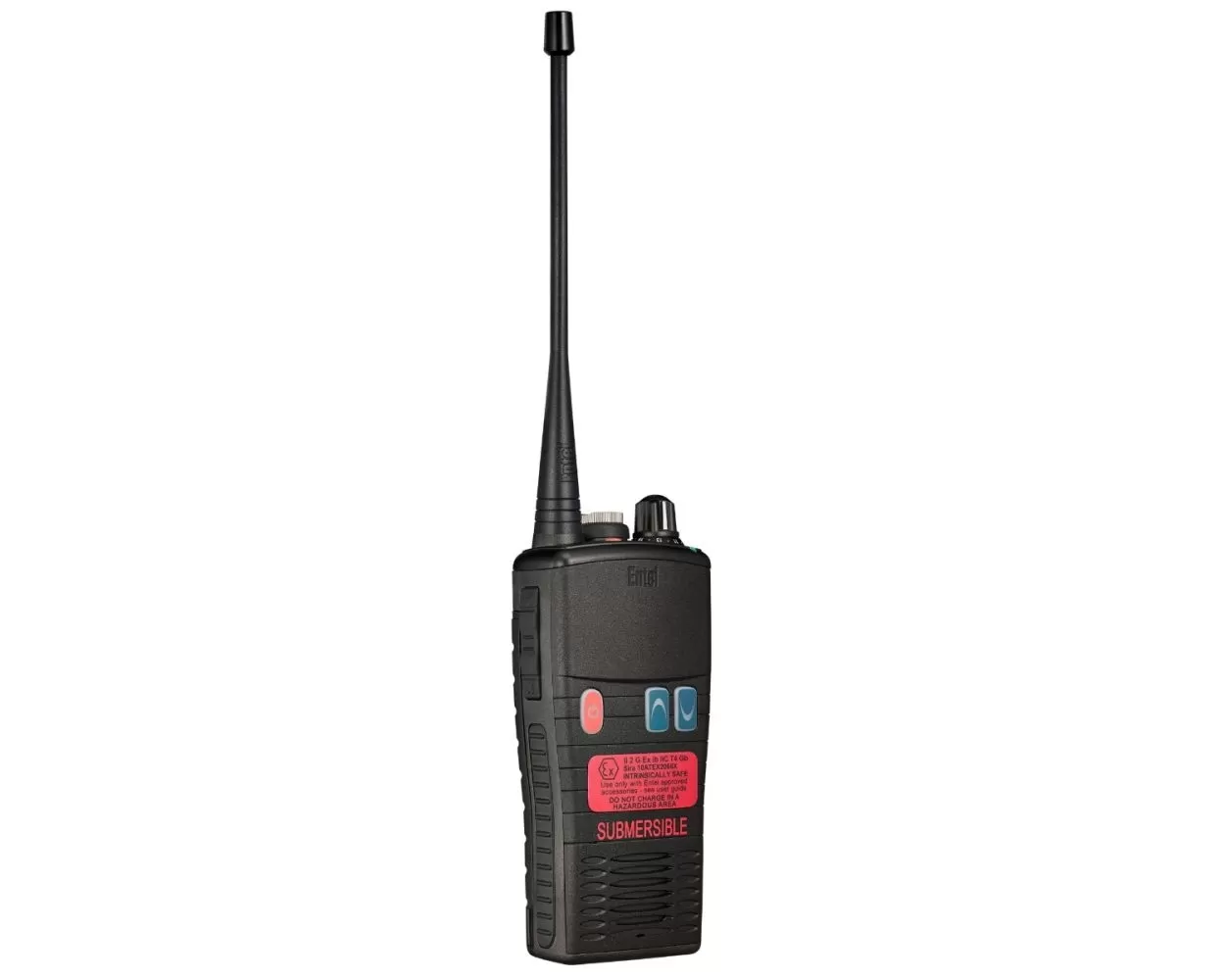

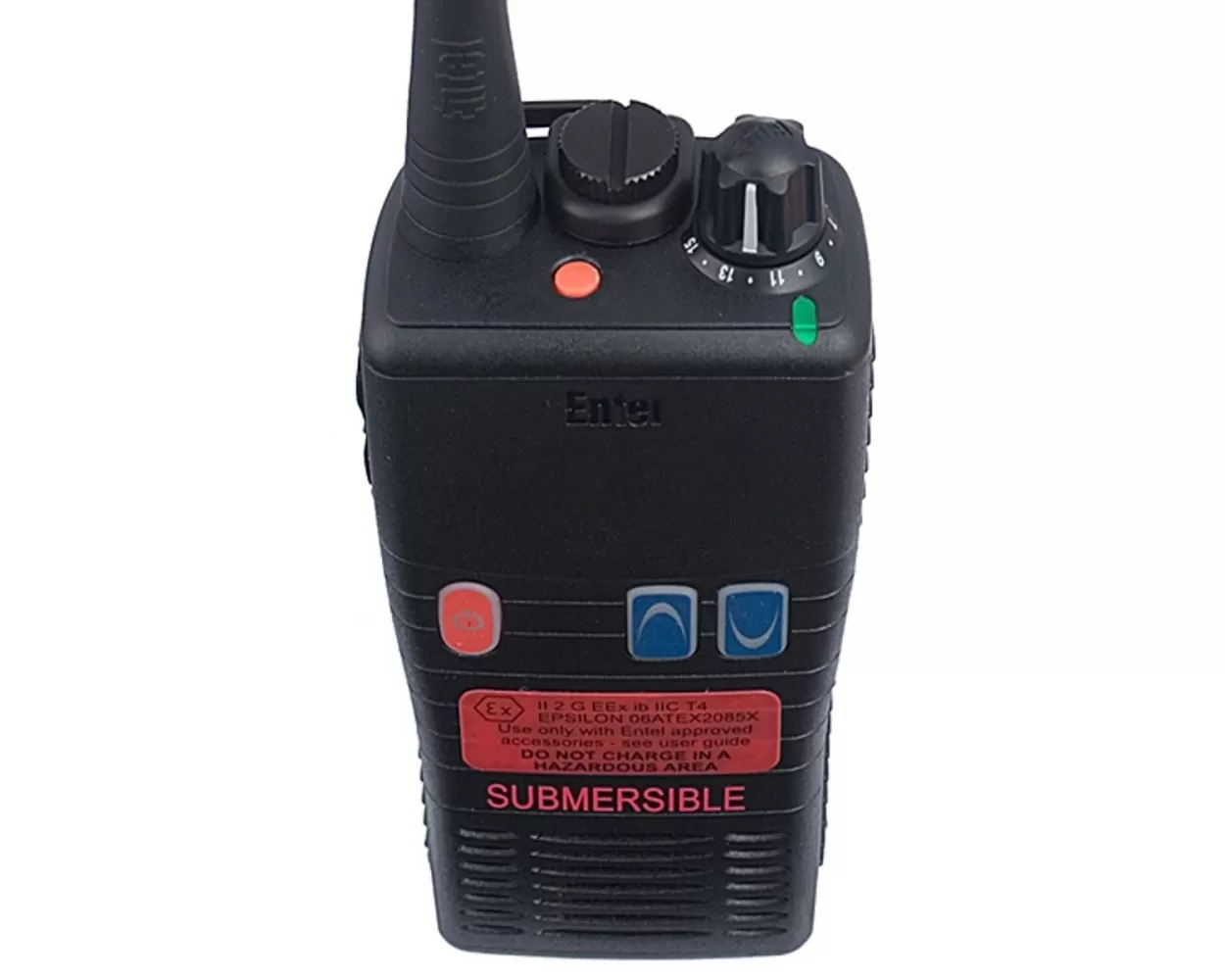

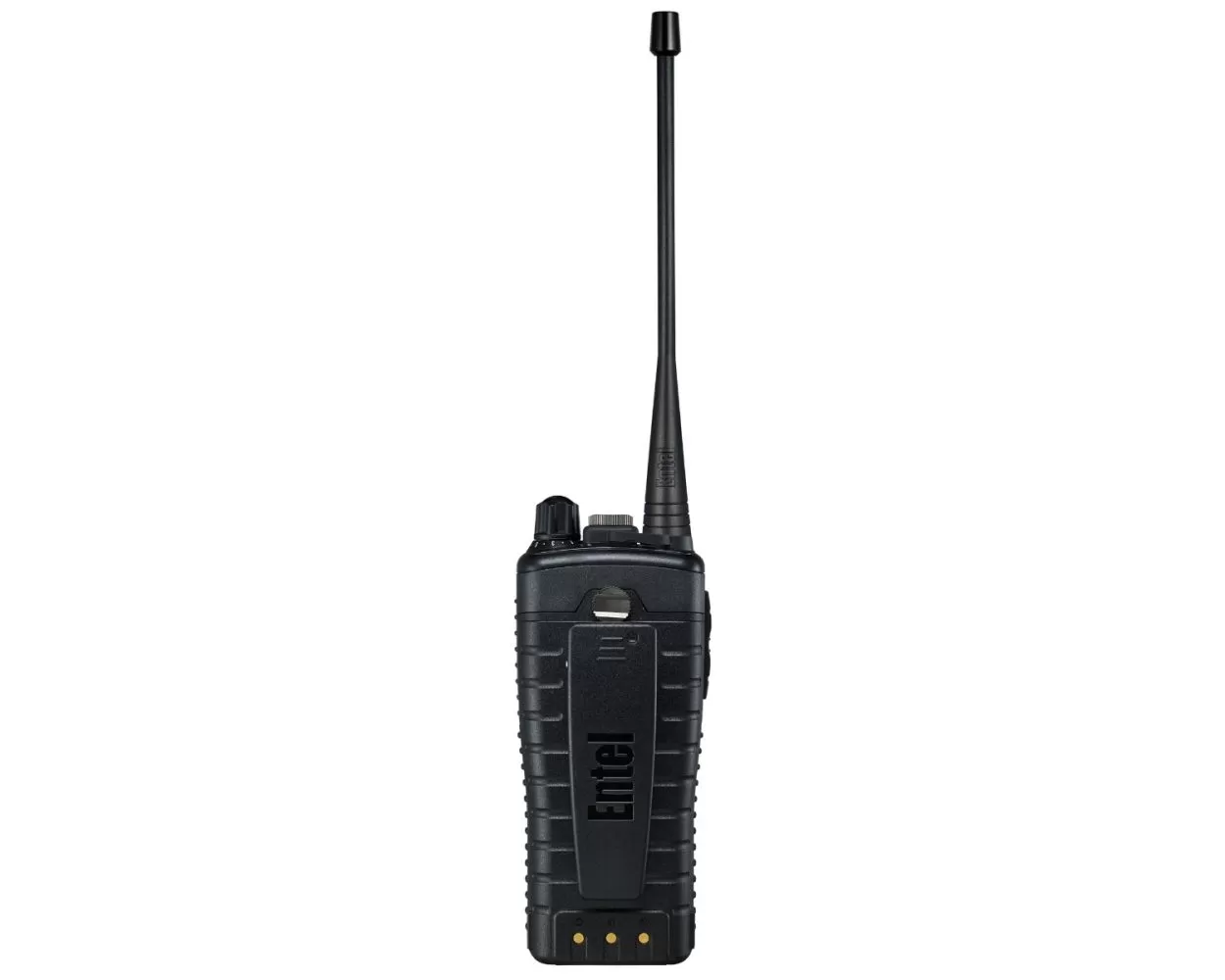

Entel HT982 UHF ATEX IIC Two Way Radio
The first time you handle Entel’s HT982 Series 2.0 portable you will be impressed by their superior build quality.
From the rugged ergonomic design that fits comfortably in your hand, to the exceptionally loud audio, the Entel HT982 Series 2 portable easily outclass the competition.
Entel HT982 Series 2 portable are ATEX (II 2 G Ex ib IIC T4) Intrinsically Safe certified, built to MIL-STD 810C/D/E/F for tough enduring performance and are fully Submersible to IP68 (2 meters depth for 4 hours).
Entel’s HT982 Series 2 portable will exceed the expectations of even the most experienced radio user.
Entel HT982 UHF ATEX IIC Two Way Radio General Features
1800mAh Li-Ion battery
Entel HT982 Series 2.0 portable are supplied with the latest intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’ meaning there is no need to fully discharge your battery before recharging. Therefore you are assured a full charge each and every time you take your Entel battery from its charger.
Entry & Sophisticated Models
The Entel HT982 Series 2.0 ‘Entry’ models provide instantaneous Push-To-Talk communications with ‘Advanced’ models adding extra features including Individual & Group calling, Lone-Worker protection, Text messaging etc.
Intrinsically Safe
Entel HT982 Series 2 portable are ATEX (II 2 G Ex ib IIC T4) Intrinsically Safe certified.
Environmental protection to IP68 (2 Meters for 4 hours)
The practical Entel HT982 Series 2.0 portable enjoy an IP68 (2 Meters for 4 hours) rated construction, which means that they are dust protected and fully Submersible.
MILSTD 810C/D/E/F
Meeting MIL-STD 810C/D/E/F and providing commercial grade construction for tough, enduring performance. Entel's Entel HT982 Series 2.0 portable conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.
Flash upgradeable to add future features
Entel adds and improves features on its Entel HT982 radio by way of software updates. Using Flash Upgrade technology your Entel HT982 radio can be upgraded by your Dealer at any time.
Robust accessory socket
The socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. Furthermore, the securing bolt incorporates a shearing point to protect the connector.
Channels
All non-display Entel HT982 portable provide 16 programmable channels. Display portable provide 255 programmable channels.
Entel HT982 UHF ATEX IIC Two Way Radio Convenience Features
Scan/priority scan
The Entel HT982 Series portable have the facility to scan for an active (or free) channel. When the channel is found, the radio will automatically select it for you. Priority scan will allow you to select one channel in the scan list that is treated as a "Priority". It will be checked more frequently than all other channels in the list.
Keylock
To avoid accidental operation your radios keys & controls can be locked by the user or, if set, automatically by the radio.
VOX hands free (with audio accessory)
When using an Entel VOX enabled audio accessory, your Entel HT982 portable can operate totally hands free. All you need to do is talk and the Entel HT982 portable will automatically transmit for you.
Programmable channel monitor button
If you have channel protection enabled on your Entel HT982 portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.
Talkaround
Some radio systems use a "repeater" to increase the system's range. However when you go outside the range of the repeater, communication with another radio is not possible no matter how close you are. Talkaround enables you to talk directly with another radio, bypassing the repeater.
Individual & Group Calling (advanced models only)
Entel’s advanced 5-Tone Selcall & MPT1327 Trunking models provide Individual, Group & All Call. The radio's contact list can be used to select the person to call, as well as speed dials.
Entel HT982 UHF ATEX IIC Two Way Radio Security Features
Programmable scrambler (voice inversion)
Used to encrypt your voice, protecting against casual eavesdropping.
Entel HT982 UHF ATEX IIC Two Way Radio Safety Features
Lone-Worker & Man-Down Alarms (advanced models only)
Entel’s advanced 5-Tone Selcall models are designed to protect lone workers. The radio’s orange button can be pressed to send an emergency signal to your colleagues. Should someone fall and become unconscious the optional Man-Down sensor can automatically send the alarm. The radios Lone-Worker timer checks the radios user is ok, if no response is received the radio will automatically send the alarm. The high volume local siren additionally alerts non-radio users in the vicinity to the emergency. This capability can be programmed by your Dealer.
Local Personal Attack Alarm
Entel HT982 portable include a personal attack alarm option. Once activated the speaker of your radio will emit a high pitched siren as a deterrent and provides a local call for assistance.
Entel HT982 UHF ATEX IIC Two Way Radio Includes
- CNB950E - 7.4v, 1800mAh rechargeable Lithium-Ion battery pack
- Drop-in charger
- CBH950 - Spring loaded belt clip
- High efficiency antenna (can be exchanged for stubby antenna at point of order)
- User manual
Entel HT982 UHF ATEX IIC Two Way Radio General Specifications:
| Frequency Range | 400 - 470MHz |
| Channels | Non LCD 16 Channels, LCD 255 channels |
| Channel Spacing | 12.5 kHz / 25 kHz |
| Communication Method | Simplex / semi duplex |
| Antenna Impedance | 50 ohm |
| Antenna | Whip / stubby |
| Battery Type | 1800 mAh Li-Ion battery pack |
| Power Supply Voltage | 7.4V DC |
| Current Drain (nominal) | 40mA |
| Duty Cycle (5/5/90) | 14.5 hours |
| Microphone | Internal condenser microphone |
| Operating Temperature | -20° to +55°C |
| Size (mm) | 59.5(W) x 130(H) x 37(D) |
| Weight | 277g with battery and aerial |
Entel HT982 UHF ATEX IIC Two Way Radio Transmitter Specifications:
| Power Output | 1W |
| Modulation | 8K0G3E/16K0G3E |
| Oscillator Method | PLL |
| Frequency Stability | 2.5PPM |
| Maximum Deviation | ±2.5 kHz(Narrow)/ ±5 kHz(Wide) |
| Audio Distortion | < 5% (1 kHz 60%) |
| Spurious Emission | -68 [dBc] |
| Hum & Noise | -40 [dB] |
Entel HT982 UHF ATEX IIC Two Way Radio Receiver Specifications:
| Receiver Type | Double Super Heterodyne type |
| Sensitivity | -0.25uV (12dB SINAD) |
| Frequency Stability | 2.5PPM |
| Spurious Rejection | +70 dB |
| Adjacent Channel Selectivity | -60 dB (Narrow) , -70 dB (Wide) |
| Distortion | < 5% (1 kHz 60%) |
| Hum & Noise | -40 dB |
| Audio Output | 1W |
