Icom IC-M803 MF/HF Marine SSB Transceiver - DISCONTINUED
Next generation Icom IC-M804 MF/HF Marine SSB Transceiver Now available
The Icom IC-M803 is a long-range MF/HF Class E DSC radio for ocean going sailors such as blue water cruisers that require Single-Side Band (SSB) on board. The IC-M803 is packed with features to keep users safe including an intuitive user interface and colour TFT LCD display, audio replay, GPS and more.
4.3-inch-Wide Viewing Angle Colour TFT Display

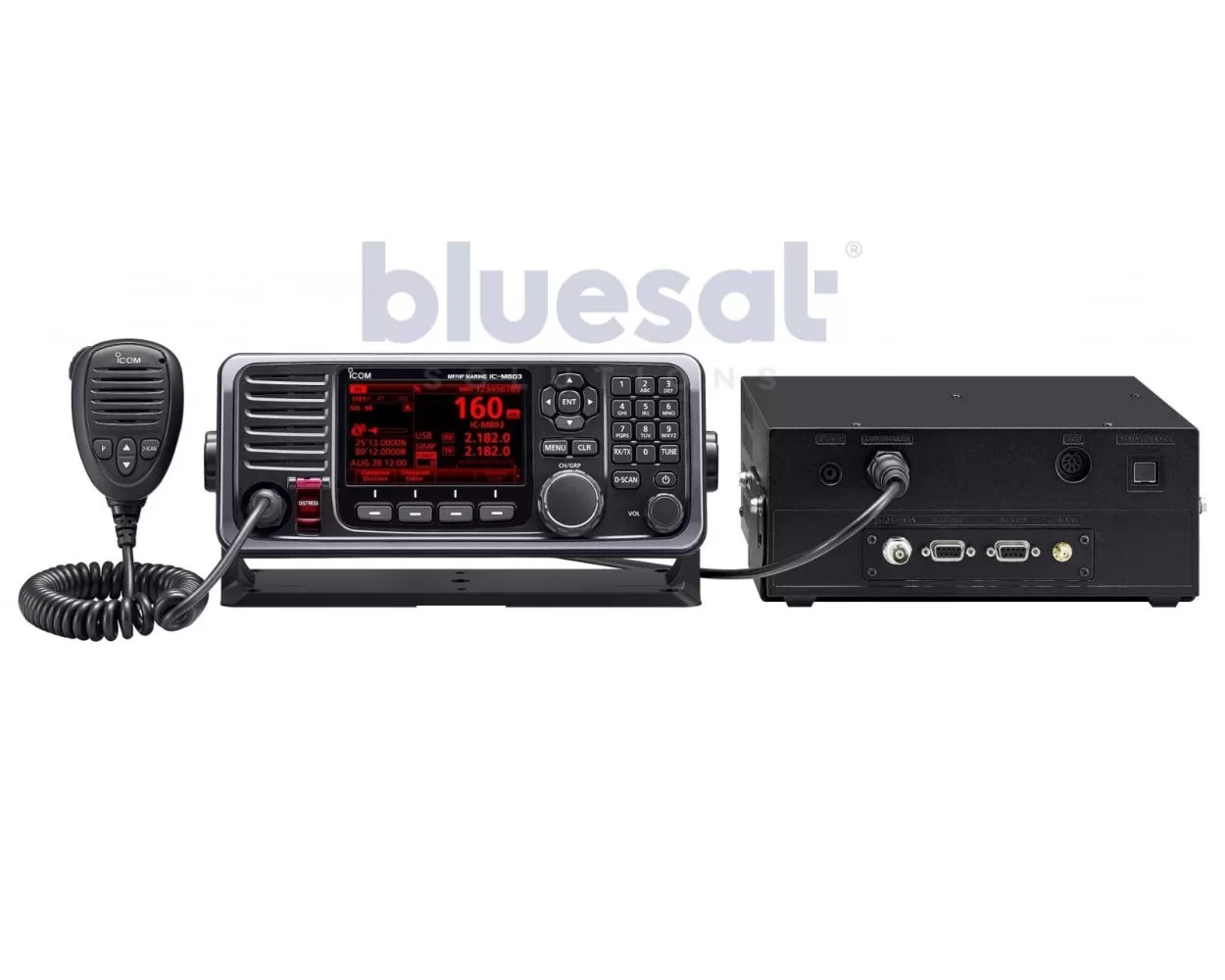

ImageThe 4.3-inch colour TFT display provides an almost 180 degree very wide viewing angle and displays high resolution characters and function icons. You can clearly see the display information from various viewing angles. The night mode display ensures good readability in low light conditions.
Intuitive User Interface
ImageA combination of the large control knob and soft-keys at the bottom of the display provides simple operation and easy access to frequently used functions. You can enter channel numbers, MMSI numbers, vessel names with the alpha-numeric keypad. In addition, one of the soft-key functions can be assigned to the microphone’s programmable button for quick access.
This product replaces the Icom IC-M802 which has now been discontinued from Icom product range. Please note that this product does not have type approval for UK/European flagged vessels. For use outside of UK waters.
Waterproof Remote-Control Head for Flexible Installation

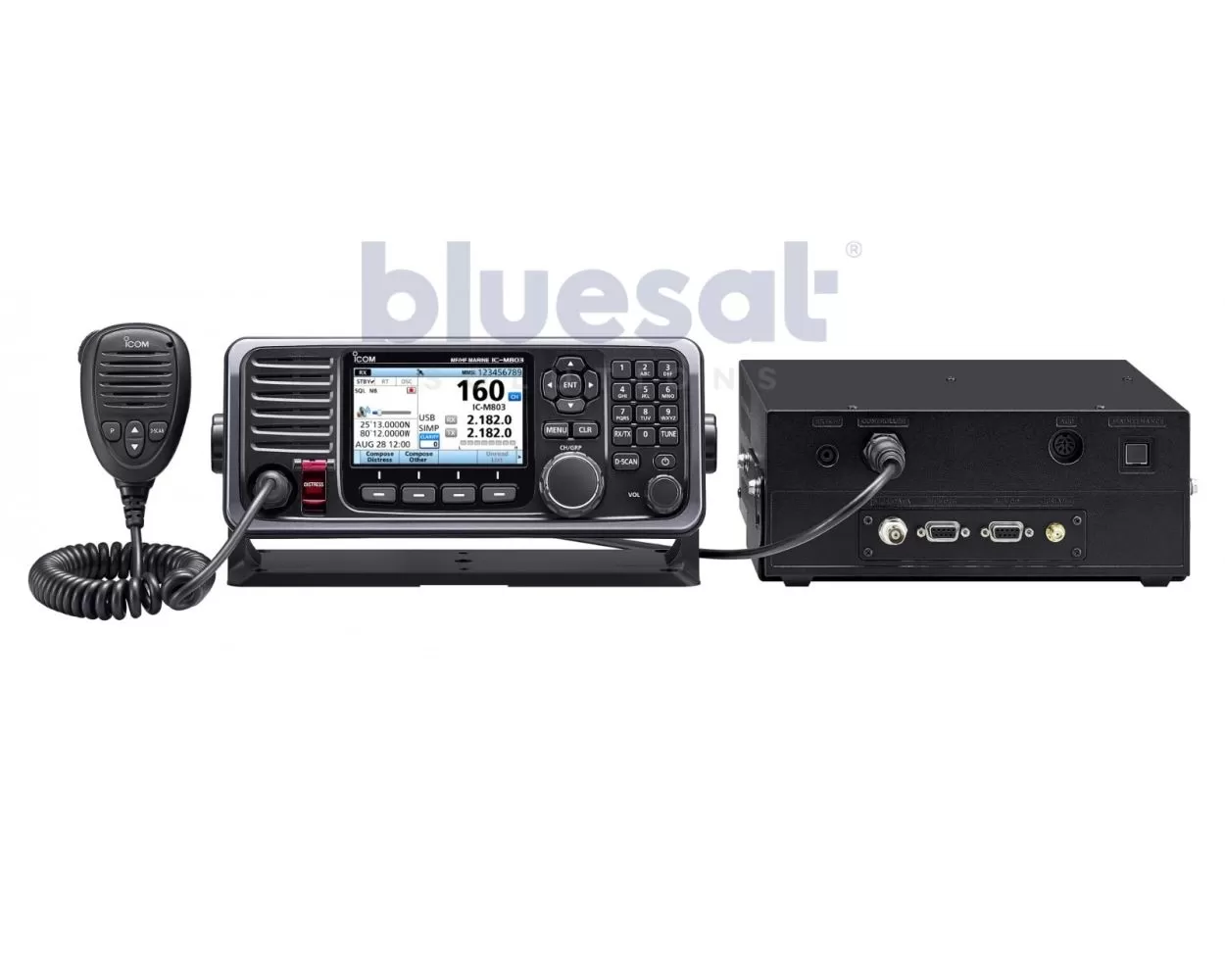

ImageThe Icom IC-M803 features a remote head that can be neatly installed near a chart table or NAV station while the control box mounts discreetly out of the way and out of sight. The controller can be interfaced into a computer or email modem to make a complete communication system. Connections are also available for an external loudspeaker. * Remote Head meets IPX7 waterproofing standards (1 m depth water for 30 minutes)
Integrated GPS Receiver and Distress Button for Emergency
ImageIn an emergency, press the large independent DSC button to send an automated DSC alert signal. The digital distress signal with GPS coordinates calls for help from other ships or coast stations. The GPS receiver offers GPS, GLONASS, SBAS, position, speed and UTC data when using the supplied GPS antenna. Position data can be outputted from the NMEA 0183 port for use with other devices.
Much like its predecessors, the IC-M803 features a remote head that can be neatly installed near a chart table or NAV station while the control box can mount discreetly out of the way and out of sight. The controller can be interfaced with a computer or email modem to make a complete communication system. Connections are also available for an external loudspeaker.
Built-in DSC Watch-Keeping Receiver with the Multiple Task Mode
ImageThe dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. A total of 100 MMSI numbers (75 Individual and 25 Group) for DSC calls can be stored with a 10-character ID name. When you receive a DSC call, while you are in process with another DSC call, the IC-M803 can hold both DSC procedures to switch between the DSC calls with the Multiple Task Mode function.
Two Minutes Instant Replay Memory
ImageThe Instant Replay function automatically saves the received audio. You can replay the received audio, and not miss any incoming calls.
Advanced RF Direct Sampling System
ImageThe Icom IC-M803 also includes an advanced RF direct simple sampling system that improves receiver sensitivity and delivers high quality audio.
HF Email Operation
ImageThe Icom IC-M803 can be set to memorise your HF email access frequency, mode and bandwidth setting into the email channels. Up to 160 email frequency channels and connection terminals for a PC and e-mail modem are available.
Icom IC-M803 MF/HF Marine SSB Transceiver Additional Features:
- 150 W (PEP) of powerful RF output
- 0.5–29.999 MHz continuous receiver coverage
- NMEA 0183 Version 4.10 data input/output (4800–38400 bps)
Icom IC-M803 MF/HF Marine SSB Transceiver Includes:
- Remote controller
- Remote control cable (5 m, 16.4 ft)
- Microphone, HM-214H
- DC power cable
- GPS antenna (5 m, 16.4 ft cable)
- Microphone hanger
- Mounting bracket kits
- ACC plugs
- Spare fuses
Icom IC-M803 MF/HF Marine SSB Transceiver General Specifications:
| Receive | 500 kHz–29.9999 MHz (Continuous) | |
| Frequency coverage | Transmit |
|
| DSC | 2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 16.8045 MHz | |
| Mode | TX/RX |
|
| DSC | J2B | |
| Antenna impedance | 50 Ω (unbalanced) | |
| Usable temperature range | –20°C to +55°C, –4°F to +131°F | |
| Frequency stability | TX/RX | ±10 Hz (below 29.999 MHz) |
| DSC | ±10 Hz | |
| Power supply requirement | 13.6 V DC ±15% (Negative ground) | |
| Current drain (at 13.6 V DC) | Receive | Less than 3.0 A (Maximum audio output) |
| Transmit | 30 A (Maximum output power) | |
| Dimensions (Projections not included) | Main unit | 240 × 94 × 238 mm, 9.4 × 3.7 × 9.4 in (W × H × D) |
| Controller | 274 × 114 × 86 mm, 10.8 × 4.5 × 3.4 in (W × H × D) | |
| Weight | Main unit | 4.41 kg, 9.7 lb (approximate) |
| Controller | 760 g, 1.7 lb (approximate) |
Icom IC-M803 MF/HF Marine SSB Transceiver Transmitter Specifications:
| Output power | 150, 100, 60, 20 W PEP (selectable) |
| Spurious emissions | Less than –62 dB (Peak output power) |
| Carrier suppression | More than 40 dB (Peak output power) |
| Unwanted sideband suppression | More than 55 dB (Peak output power with 1500 Hz AF Input) |
| Microphone impedance | 600 Ω |
Icom IC-M803 MF/HF Marine SSB Transceiver Receiver Specifications:
| Sensitivity |
|
||||||||||||||||||||||||||||||||||||
| DSC Sensitivity (J2B) |
|
||||||||||||||||||||||||||||||||||||
| Spurious response |
|
||||||||||||||||||||||||||||||||||||
| Audio output power | 4.0 W at 10% distortion with a 4 Ω load | ||||||||||||||||||||||||||||||||||||
| Clarity variable range | ±150 Hz |
