Intellian v100GX 1 Meter Ku-Ka band Convertable GlobalXpress Antenna

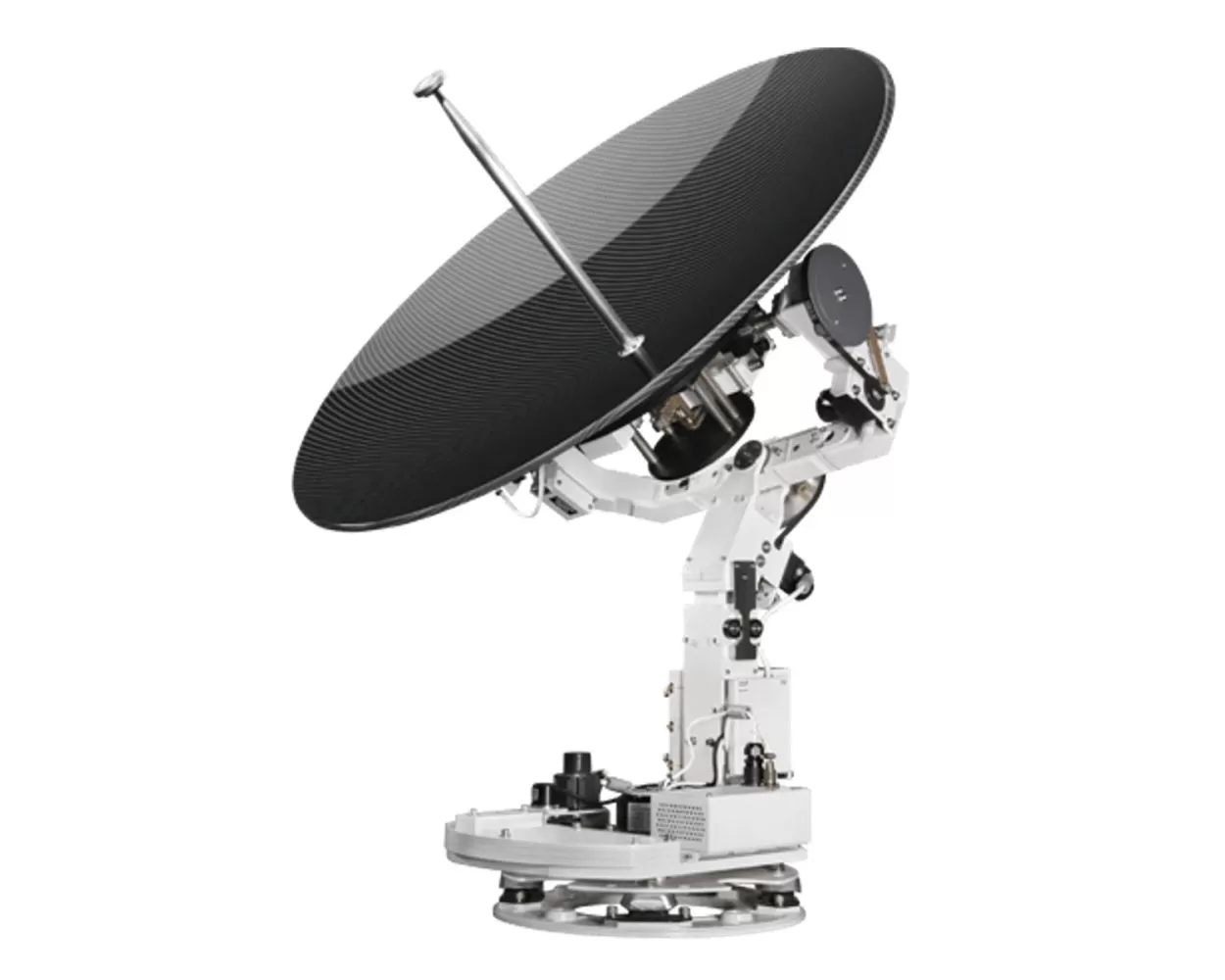

The v100GX is a 1 meter Ku-band to Ka-band convertible maritime stabilized antenna, a ready-to-use system for the super-fast, GlobalXpress (GX) Ka-band broadband service from Inmarsat.

The v100GX increases your return on investment with its plug and play conversion kit to enable a smooth upgrade path from Ku-band to the GX service without replacing the reflector or the radome. The precision molded carbon fiber reflector and frequency tuned radome are each optimized to deliver superior RF performance in both Ku and Ka- band.

The smart design of the convertible RF package means the system can be upgraded from Ku-band to GX in 10 minutes, without requiring a specialized service engineer.

Ku to GX in 4 Easy Steps

Easily and quickly convert from a Ku-band system to a Ka-band GX system in under 10min without removing the radome. All RF components are mounted on a single chassis to form an integrated RF module consisting of the BUC and the Intellian Global PLL LNB.

By removing only four bolts the whole module can be detached and taken out of the radome through the access hatch. The new BUC & LNB module fit right back into the same space with no need to rebalance the system. Finally, the Ku-band feed is easily replaced with the Ka-band feed.

Superior RF Performance

Frequency Tuned Radome

To ensure efficient operations for both Ku-band VSAT and Ka-band Inmarsat GX systems, the radome itself is designed to enhance both the Ka- and Ku-band system performance. The new Radome is also designed to match conventional domes, an important benefit on installations where great aesthetics are important.

Precision Dual Band Carbon Fiber Reflector

The v100GX is designed and engineered to operate on Ku and Ka-bands while maximizing the RF performance on both bands. The v100GX’s high-gain, precision carbon fiber reflector ensures the best service quality available when configured for Ku or Ka-band operation.

Intellian v100GX 1 Meter Ku-Ka band Highlights:

Simple 4-Step Conversion from Ku to Ka-band conversion in under 10 minutes
Precision Carbon Fiber reflector delivers optimal performance in Ka-band
Gyro-Free Satellite Search Capability without input from a ships compass
Dual VSAT Mediator integrates two VSAT antennas to combat onboard blockage zones
Remote management and control using the Aptus platform, with direct Wi-Fi connection
Patented Intellian Global PLL LNB
Open Platform system architecture works with all leading airtime service providers
3-axis stabilized antenna platform with unlimited azimuth

Intellian v100GX 1 Meter Ku-Ka band Features:

Simple Conversion from Ku to Ka

Converts easily and quickly from Ku-band system to a Ka-band system with a simple integrated RF module consisting of the BUC and LNB
The combined RF BUC & LNB assembly is attached to the rear side of the reflector, with no need to rebalance the system after conversion

Gyro-Free Satellite Search Capability

No external heading device input required
Reduces installation time, automated Bow offset using Aptus

Remote Access via Aptus

Built-in web interface for remote management, control and updating brings tech support aboard the vessel
Automated Diagnostics including internal Spectrum Analyzer

Global Satellite Library

Preinstalled database of detailed satellite data
Customizable satellite library for a specific network

Auto Beam Switching (ABS)

Supports ABS via the OpenAMIP protocol from iDirect and the ROSS Open Antenna Management (ROAM) protocol from Comtech

Global PLL LNB

Standard equipped with Intellian's patented Global PLL LNBs
The Global PLL LNB is the world's first Ku-band LNB module capable of receiving a full range of operating frequencies from any VSAT satellite around the globe

Optional Dual VSAT Mediator

Ensures uninterrupted broadband communications
Communicates simultaneously with two Antenna Control Units (ACU). Ideal for redundant antenna environments
Seamlessly switches between two antennas

Global Support

3-Year Global Warranty backed by over 300 Intellian Service and Support centers around the world

3 Year Global Warranty

Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
The new warranty policy (3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017

Anatel Approved
