SAILOR 6130 Mini-C LRIT System 406130A
The Thrane & Thrane TT-00-406130A-00500 is the premier standalone LRIT solution.
The SAILOR 6130 LRIT enables straightforward LRIT compliance through ease of operation and reliability. It offers the same benefits towards acceptance and compliance as the legacy system, but with a number of key enhancements.
Fully Approved
SAILOR 6130 mini-C LRIT System is approved by Inmarsat and major flag ASP state administrators and is fully compliant with the performance requirements described in IMO Resolution MSC.263(84).
So you can be sure that you are meeting requirements the new Terminal Control Unit enables operators to easily determine system status such as power, Inmarsat log-in and GPS fix.
Technical Innovation
New sealed, self-contained terminal design, 50 channel GPS module, high gain omni-directional antenna and the included NMEA 2000 and RJ45 cabling set SAILOR 6130 LRIT apart.
Accurate, reliable satellite fix and position, lower lifetime costs, no condensation issues and improved installation and maintenance thanks to unique cabling and upgraded design/technology.
Touchscreen Operation
Operation is via the new SAILOR 6006 Message Terminal, which stands out as the world's first touch screen, Wheelmarked GMDSS terminal.
The multimedia style interface is user-friendly, which in turn ensures the safe operation of the vessel's IMO safety and tracking systems.
Efficient Communication
SAILOR 6130 mini-C LRIT features ThraneLINK, a unique new system that enables efficient communication within the network.
Engineers can access a vessel's network from a single point for lower maintenance and lifetime costs. The system also identifies new products in a network, making installation easier.
SAILOR 6130 Mini-C LRIT System New Ordering Data:
| Manufacturer Part Number | Description |
| 406130A-00521 | SAILOR 6130 Mini-C LRIT System |
NMEA2K Mini Device Antenna Cable ordered separately:
| New setup antenna cables | Part number |
| 30 m NMEA2K Mini Device Cable | 406100-944 |
| 50 m NMEA2K Mini Device Cable | 406100-945 |
| 10 m NMEA2K Mini Device Cable | 406100-946 |
| 15 m NMEA2K Mini Device Cable | 406100-947 |
SAILOR 6130 mini-C LRIT System Old Ordering Data:
| Manufacturer Part Number | Description | NMEA2K Mini Device Cable Length |
| 406130A-00500 | SAILOR 6130 mini-C LRIT System 30M Cable | 30M Cable NMEA2K Cable |
| 406130A-00550 | SAILOR 6130 mini-C LRIT System 50M Cable | 50M Cable NMEA2K Cable |

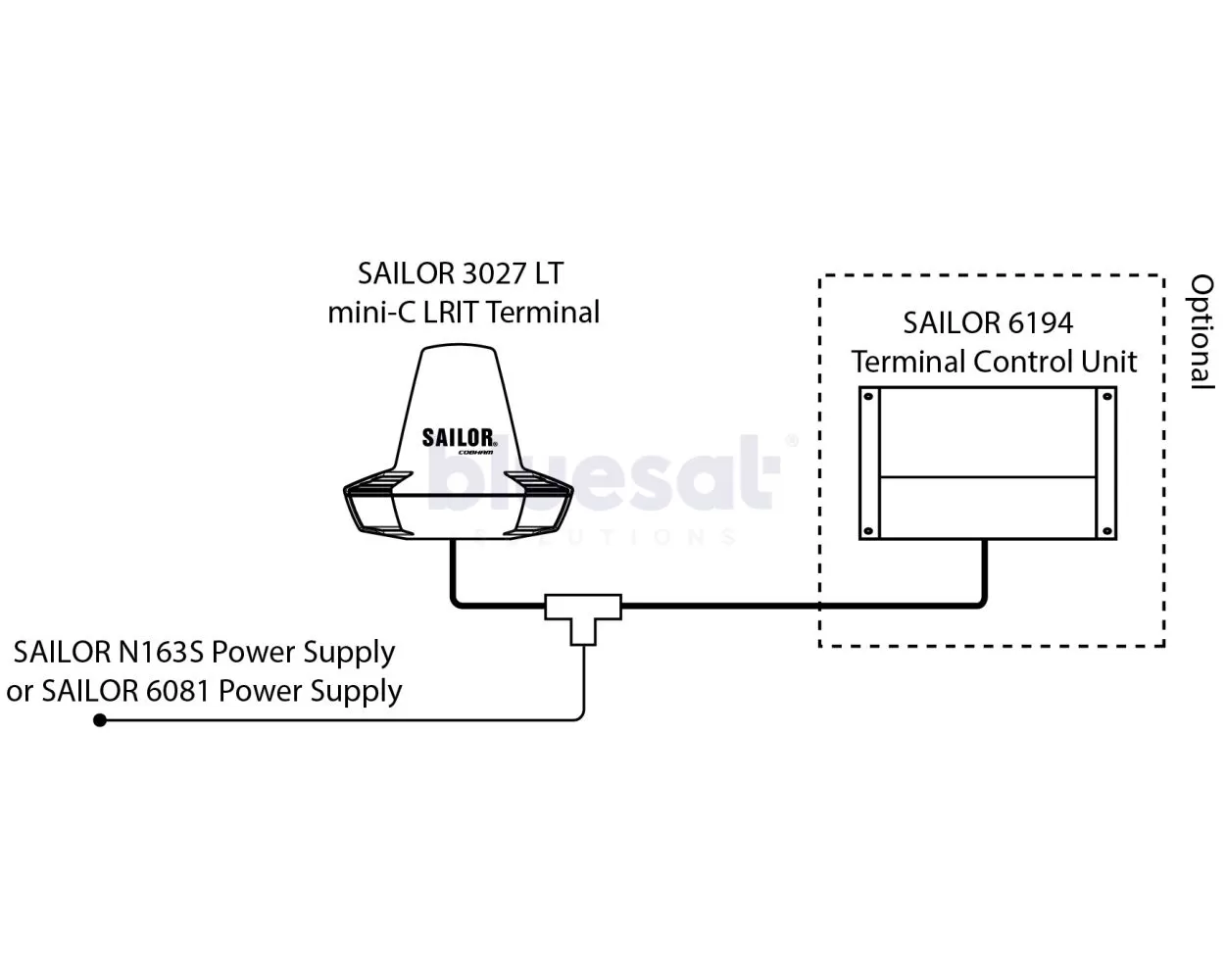

TT-00-406130A-00521 Thrane SAILOR 6130 Mini-C LRIT System Satellite Terminal Includes:
- SAILOR 3027 LRIT Terminal
- Mini/Micro NMEA2K Tee
- 6m NMEA2K Power cable
- User/installation guide
SAILOR 6130 Mini-C LRIT System Specifications:
SAILOR 6130 Mini-C LRIT System Comparison Chart
| SAILOR 6110 mini-C | SAILOR 6120 mini-C | SAILOR 6130 mini-C | SAILOR 6140 mini-C | SAILOR 6150 mini-C | |
| GMDSS | X | ||||
| SSAS | X | X | |||
| LRIT | X | X | X | ||
| SafetyNET | X | X | X | X | |
| Non-SOLAS Distress | X | ||||
| Tracking | X | X | X | X | X |
SAILOR 6130 Mini-C LRIT System Terminal Unit Specifications
| Operating frequencies | Rx Frequency Band: Rx: 1525 - 1545 MHz Tx Frequency Band: Tx: 1626.5 - 1646.5 MHz |
| GPS module | 50 channel |
| Terminal interface | NMEA2K DeviceNet Mini-style, Male |
SAILOR 6130 Mini-C LRIT System Antenna Unit Specifications
| G/T | -23.7 dBk at 5° elevation |
| EIRP | Min. 7 dBW at 5° elevation |
| Antenna elevation | -15° to 90° |
SAILOR 6130 Mini-C LRIT System Power Specifications
| Absolute power supply range | 10.5 - 32 VDC |
| Nominal power input | 15 VDC |
| Power consumption (typical) | Rx: 1.85 W @ 15 VDC Tx: 22 W @ 15 VDC |
| Interface options | CAN interface NMEA2K mini RS-232 LAN interface RJ45 |
SAILOR 6130 Mini-C LRIT System Dimensions And Weight
| mini-C Terminal | Diameter: 170.5 mm Height: 145 mm (without pole mount) Weight: 1,1 Kg |
| Terminal Control Unit | 239 mm x 172 mm x 54 mm Weight: 0,8 Kg |
