Cobham Explorer 710 BGAN Satellite Terminal

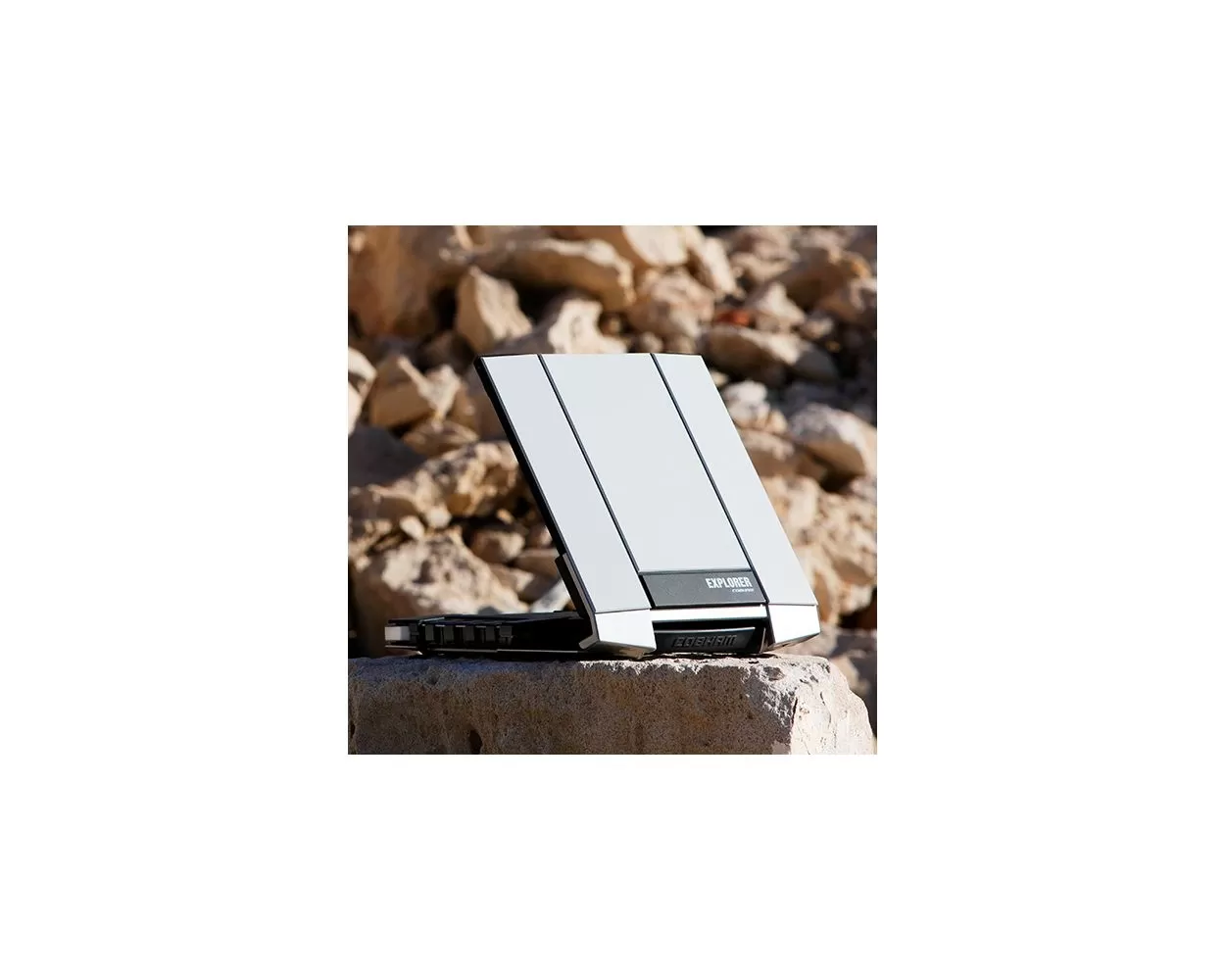

At the forefront of a new era of high-speed ultra-portable satellite streaming BGAN terminal, EXPLORER 710 is a sophisticated communication tool for broadcasting and other IP based industry applications.




BGAN but faster
EXPLORER 710 provides streaming rates over 600 kbps out of the box, when using new high data rate streaming.

With EXPLORER 710, you can leverage the fastest on-demand video streaming via satellite with guaranteed QoS to enhance the quality of live broadcasts and remote communication.

Unique possibilities
Continuing the tradition of technology leadership started when the EXPLORER team introduced its first BGAN terminal in 2005, EXPLORER 710 introduces several advanced new features.

Uniquely, it has the ability to bond the signals from multiple EXPLORER 710 terminals via Ethernet to achieve IP streaming rates of 1 Mbps or even higher - closer to standard definition broadcast quality.








Bring your own device
EXPLORER 710 also introduces Smart Phone apps to the world of BGAN connectivity, enabling users to wirelessly connect their own devices for voice calling and connectivity.

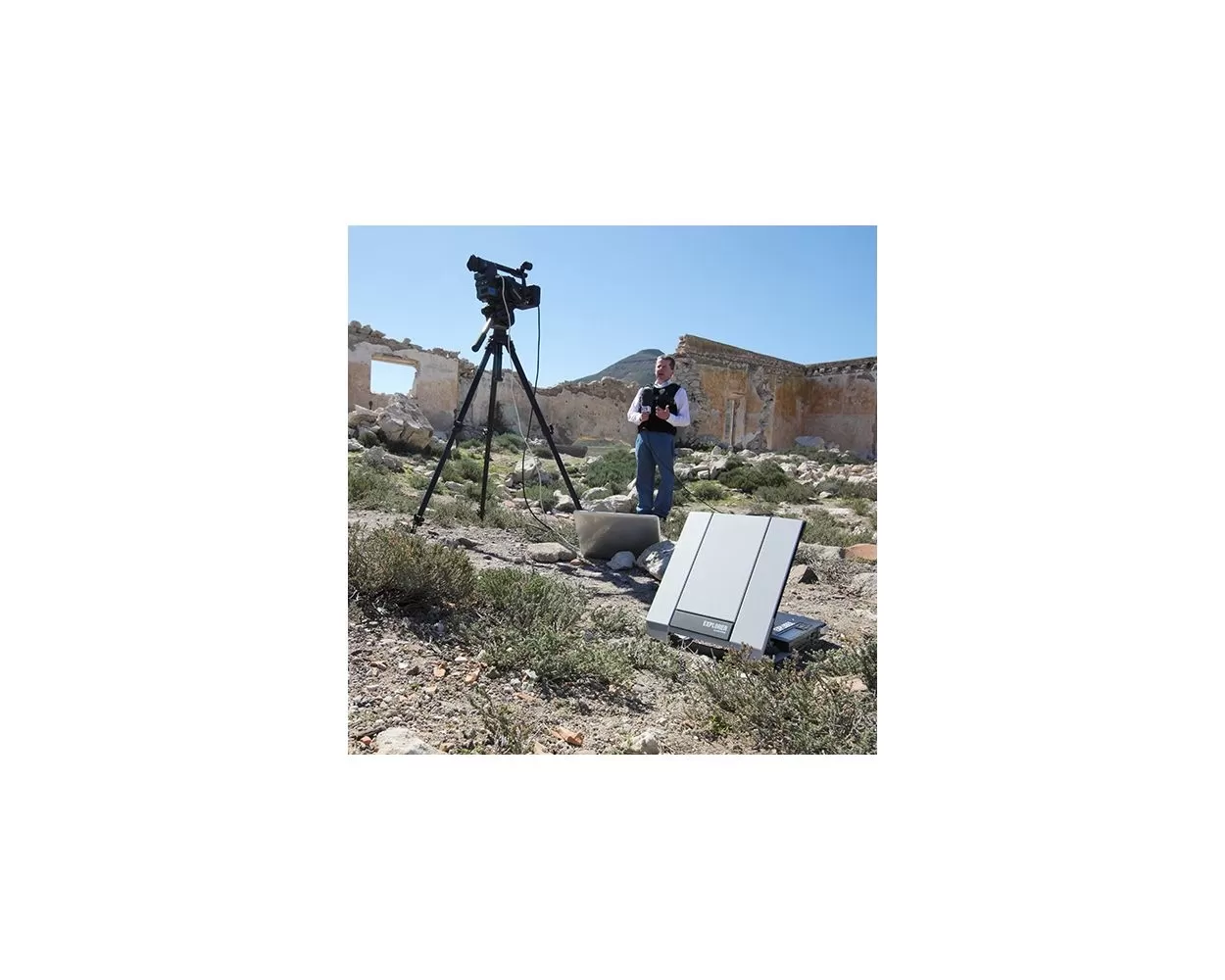

It's light, compact, tough and incredibly reliable. It opens more possibilities for connecting devices, offering more flexibility. It's ultra-portable, so you can be set-up within minutes of arriving on scene.

Next generation

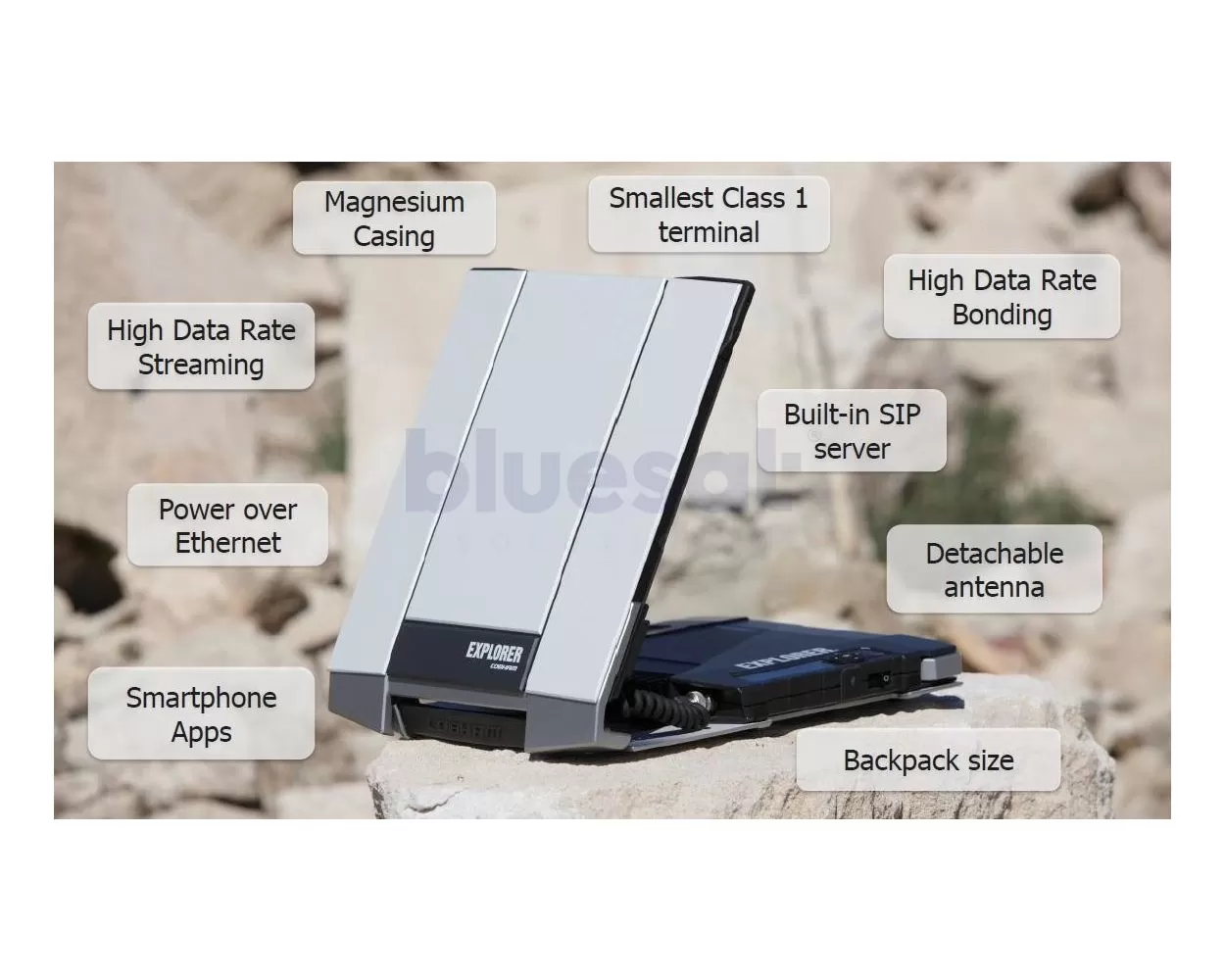

EXPLORER 710 is the complete package, featuring touches like a USB host interface, hot-swappable batteries, easy-to-use LED display and multiple interfaces.

It's the world's smallest and lightest Class 1 BGAN terminal and the first platform to make use of new high data rate streaming as standard, so is a true next generation BGAN terminal.





Cobham Explorer 710 BGAN Satellite Terminal Includes

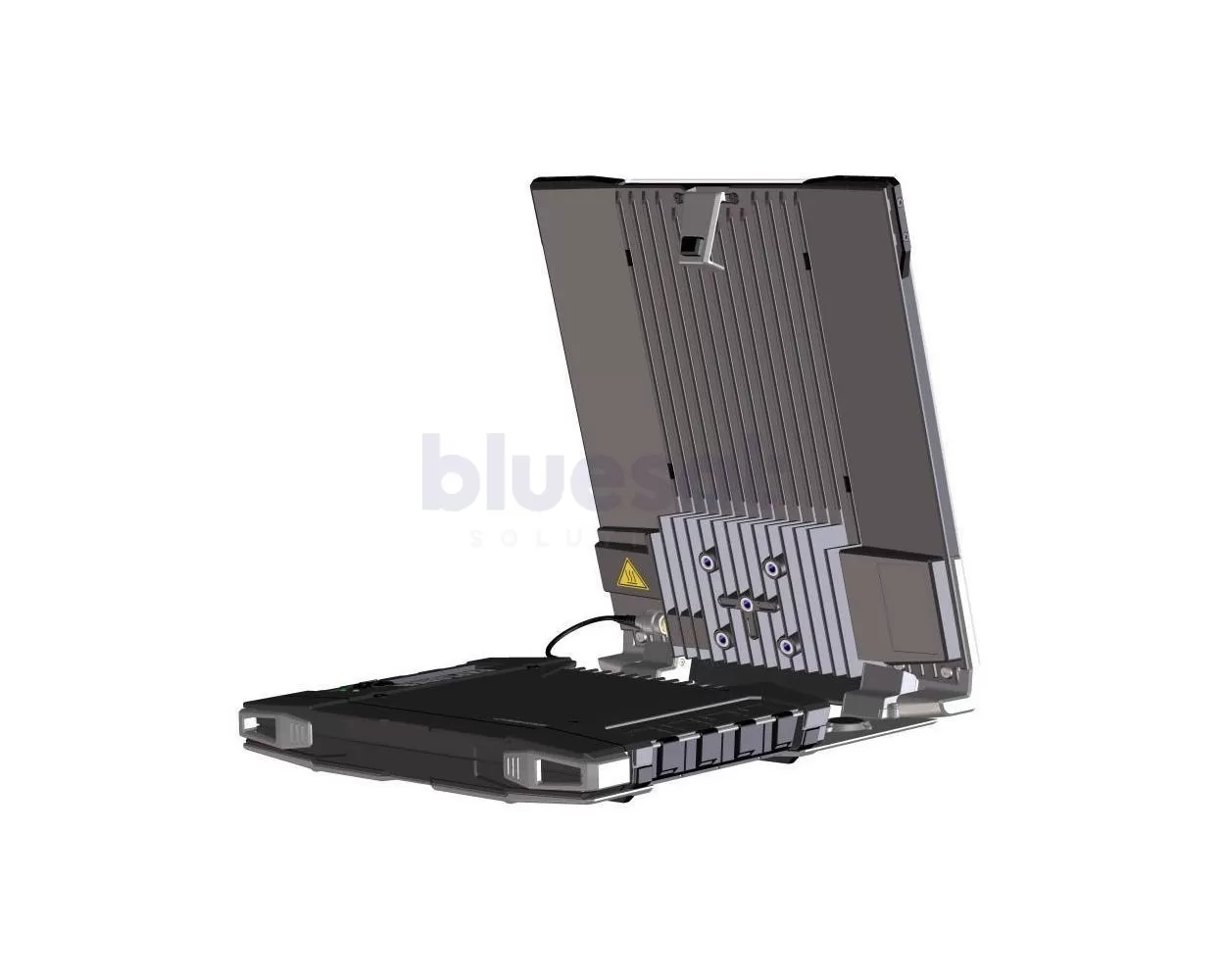

  • EXPLORER 710 Satellite Terminal with removable antenna

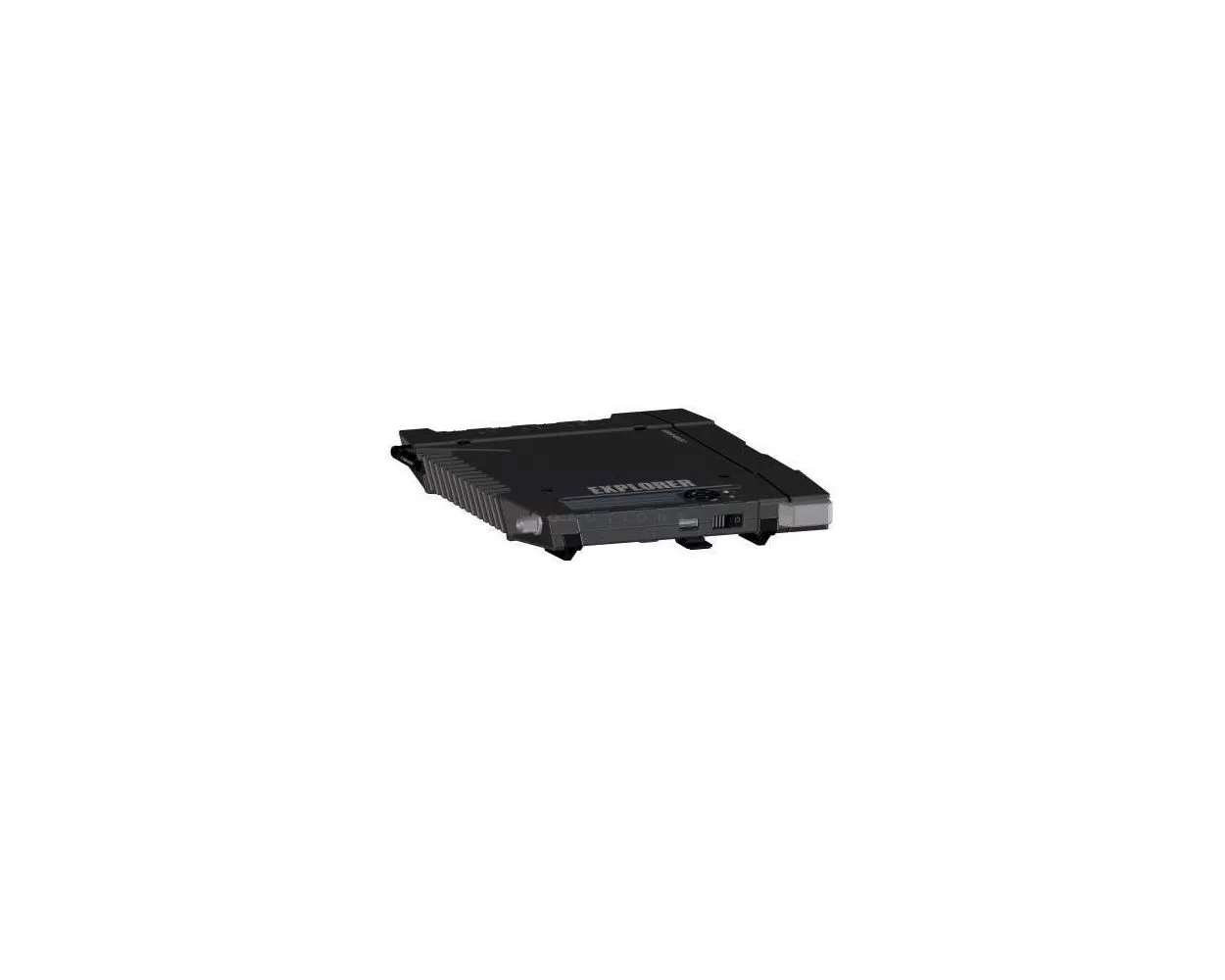

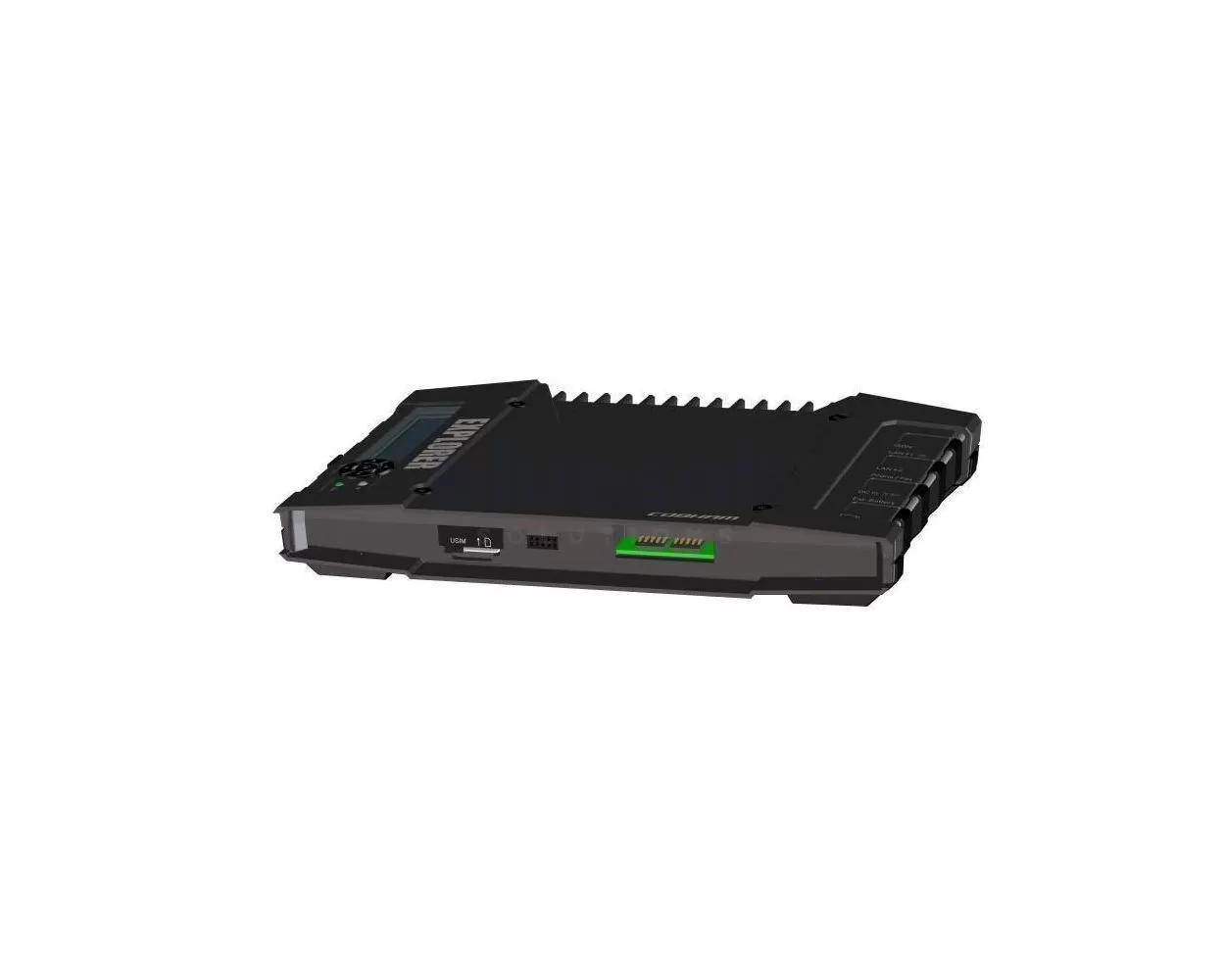

  • 403732B-005: EXPLORER 710 Transceiver
  • 403703B-005: EXPLORER 710 Antenna
  • EXPLORER 710 Softshell Case (403720B-050)
  • Short Antenna Cable
  • Ethernet Cable
  • Rechargeable Lithium Ion battery
  • 100-240V AC/DC Power Supply
  • Quick Start Guide

Voice
Stay only a voice call away from friends, family or colleagues even when in the remotest of areas.


SMS
Send a message through your device to an email address or SMS number. Not all mobile networks allow you to send text messages to satellite networks and as a result text messaging can be unreliable. Please check with your provider or contact us for further information.



Tracking
Automated tracking is available on this device meaning contacts back home can follow your journey or you can monitor the movement of your assets.


High Speed Data
This unit offers speeds capable of loading basic web pages, email and video. Airtime costs can quickly build up so make sure you setup usage alerts with us to keep on top of your spending.



Cobham Explorer 710 BGAN Satellite Terminal Coverage Map:



Cobham Explorer 710 BGAN Satellite Terminal Coverage Map



Cobham Explorer 710 BGAN Satellite Terminal Comparison Table:



  EXPLORER 300 EXPLORER 510 EXPLORER 710
Weight 1.4 kg 1.4 kg 3.5 kg
Size (H x W x D) 170 x 217 x 52 mm 202 x 202 x 52 332 x 279 x 54 mm
Battery Li-Ion – 30h standby
3h – standard voice
1h30 upload @ 96 kbps
Li-Ion – 24h standby
2h10 upload @ 128 kbps
2h10 Streaming @ 128kbps
Li-Ion – 24h standby
4h upload @ 128 kbps
1h45 Streaming @ HDR
Ingress Protection Rating IP54 IP66 Terminal IP52
Antenna IP66
Single/Multi-user Single (1 IP-address) Multi Multi
Standard Voice 4 kbps (AMBE+2) 4 kbps (AMBE+2) via SIP 4 kbps (AMBE+2)
Premium Voice   3.1 kHz Audio,
64 kbps via SIP
3.1 kHz Audio, 64 kbps
ISDN Data     UDI 64 kbps / RDI 56 kbps
Standard IP Up to 384 kbps Up to 464 kbps Up to 492 kbps
Streaming IP 32, 64 kbps 32, 64, 128 kbps 32, 64, 128, 192, 256,+280, +384, +580 kbps
BGAN X-Stream     Minimum 384 kbps
HDR Streaming     Minimum 580 kbps
Asymmetrical HDR     Yes
Built-in Bonding     Up to two HDR channels
Text (SMS) 160 characters
LAN (Ethernet) 1 port   2 ports
ISDN     1 port
Phone/Fax (2-wire) 1 port   1 port
USB   1 USB Host port 1 USB Host port
WLAN   802.11a/b/g 802.11a/b/g
Bluetooth Class 2
Antenna Integrated Integrated Detachable < 100m



Cobham Explorer 710 BGAN Satellite Terminal Specifications:



Cobham Explorer 710 BGAN Satellite Terminal General Specifications:

Dimensions 332 x 279 x 54 mm
13.07 x 10.98 x 2.13 inches
Weight (including battery)

3.5 kg / 7.7 lbs

Antenna: 1.9 kg / 4.2 lbs

Transceiver: 1.6 kg / 3.5 lbs

Global Services

Voice: 4 kbps AMBE+2

Premium voice: 3.1 kHz audio, 64 kbps

Standard IP: Up to 492 kbps

Streaming IP: 32, 64, 128 kbps

(256 kbps & BGAN X-Stream)

High Data Rate Streaming: Min. 600 kbps

Min. 300 kbps (Half-channel HDR)

ISDN: UDI 64 kbps / RDI 56 kbps

SMS: Not supported

Inmarsat Frequencies 1518.0 - 1525.0 MHz (Rx) (EMEA)
1525.0 - 1559.0 MHz (Rx)
1626.5 - 1660.5 MHz (Tx)
1668.0 - 1675.0 MHz (Tx) (EMEA)
EIRP 20dBW ±1dB
User Interface PMOLED Display, 5 navigation keys,
Audio and LCD pointing aids and LED
indicator, Compass
Languages ENG, FR, DE, ES, RU and CN
Approvals

Inmarsat Class 1 Type Approval at launch

CE & FCC at launch. Other approvals TBC



Cobham Explorer 710 BGAN Satellite Terminal Interfaces Specifications:

1 x Analogue RJ-11 phone/fax interfaces
2 x LAN (RJ-45) interface Power over Ethernet: PoE Cl. 2 on one RJ-45 interface
Max. cable length: 100m / 328ft (Cat5 UTP)
1 x USB host interface 2.0 (host), Charging up to 2A
1 x ISDN interface Connector type: RJ-45
Max. units per port: 8, max. total power supplied 1W
1 x Transceiver / Antenna Interface Connector type: TNC-TNC
Max. cable loss: 1.4 / 20dB @ 1.5GHz
WLAN Access Point Standard: IEEE 802.11 b/g
1 x BGAN SIM Card Slot



Cobham Explorer 710 BGAN Satellite Terminal Environmental Conditions Specifications:

Temperature Operational (ambient): -25°C to +55°C / -13°F to +131°F
Storage (excl. battery): -40°C to +80°C / -40°F to +176°F
Battery Storage Temperature 1 month: -20°C to +60°C / -4°F to +140°F
3 months: -20°C to +45°C / -4°F to +113°F
1 year: -20°C to +20°C / -4°F to +68°F
Water and Dust Transceiver: IP52 / Antenna: IP66
Relative Humidity 95% non-condensing at +40°C / +104°F



Cobham Explorer 710 BGAN Satellite Terminal Power Specifications:

DC Input Range 10.-32VDC
Power Consumption Intelligent Power Management 65W (max.)
AC/DC Power Supply

Input: 100-240VAC, 47-63Hz, 65W

Output: 19VDC

Connector type: 2.5 / 5.5 mm power jack

Battery Lithium ion, rechargeable
Stand-by time: 24 hours (to be confirmed)
Transmit time, max.: 2h30m @ 144 kbps
(25°C / 77°F) 1h30m @ 650 kbps
Receive time, max.: 3h30m @ 492 kbps
