Cobham Iridium Certus Sailor 4300 L-Band Satellite Terminal
The flexible global connectivity and voice solution
With over 280,000 L-band installations in the field, and more than 20 years of customer feedback, the SAILOR 4300 delivers what today’s customers demand – reliable, high-performing and cost effective connectivity at sea.
Compact and incredibly easy to install, the SAILOR 4300 Iridium Certus ConnectedTM terminal is the pinnacle of L-band satcom performance and reliability. It ensures that your link to the Iridium® NEXT network is always available so you can operate safer, smarter and more efficiently through the power of always-available communication and digitally connected applications.
Next generation
Iridium CertusSM is a new portfolio of global satellite services powered by Iridium® NEXT, a ground-breaking L-band global satellite constellation, which features a cross-linked Low-Earth Orbit (LEO) architecture to provide 100% coverage over the earth’s surface. With SAILOR 4300 providing your on board link, you are guaranteed high bandwidth IP connectivity and three high-quality voice lines for global calling wherever you are.
Heavyweight applications
Available in bulkhead and 19” rackmount configuration, SAILOR 4300 offers the most reliable connection to the Iridium® NEXT satellite network with speeds suitable for data-heavy applications including; videoconferencing, multi-user Internet/VPN, IoT and telemedicine, alongside regular usage including email, electronic forms/reporting and crew communication.
Operational continuity
SAILOR 4300 is designed to withstand the harshest maritime environments. Reliability is high and lifecycle costs are inherently low – it is built to such high quality that there is no scheduled service interval and no maintenance for at least 10 years after installation. But should something go wrong, you have the support and knowledge of Cobham SATCOM’s unique Global Service Network to get you back online wherever you are.
Understanding innovation
As the market leader in maritime L-band terminals, Cobham SATCOM delivers innovation based on our innate understanding of the operational realities and strategic goals of our service provider partners and end-users. When moving to Iridium® NEXT using SAILOR 4300, you get the best available Iridium CertusSM voice and data service anywhere in the world from an easy to install terminal with a rich feature-set and class-leading lifecycle costs.

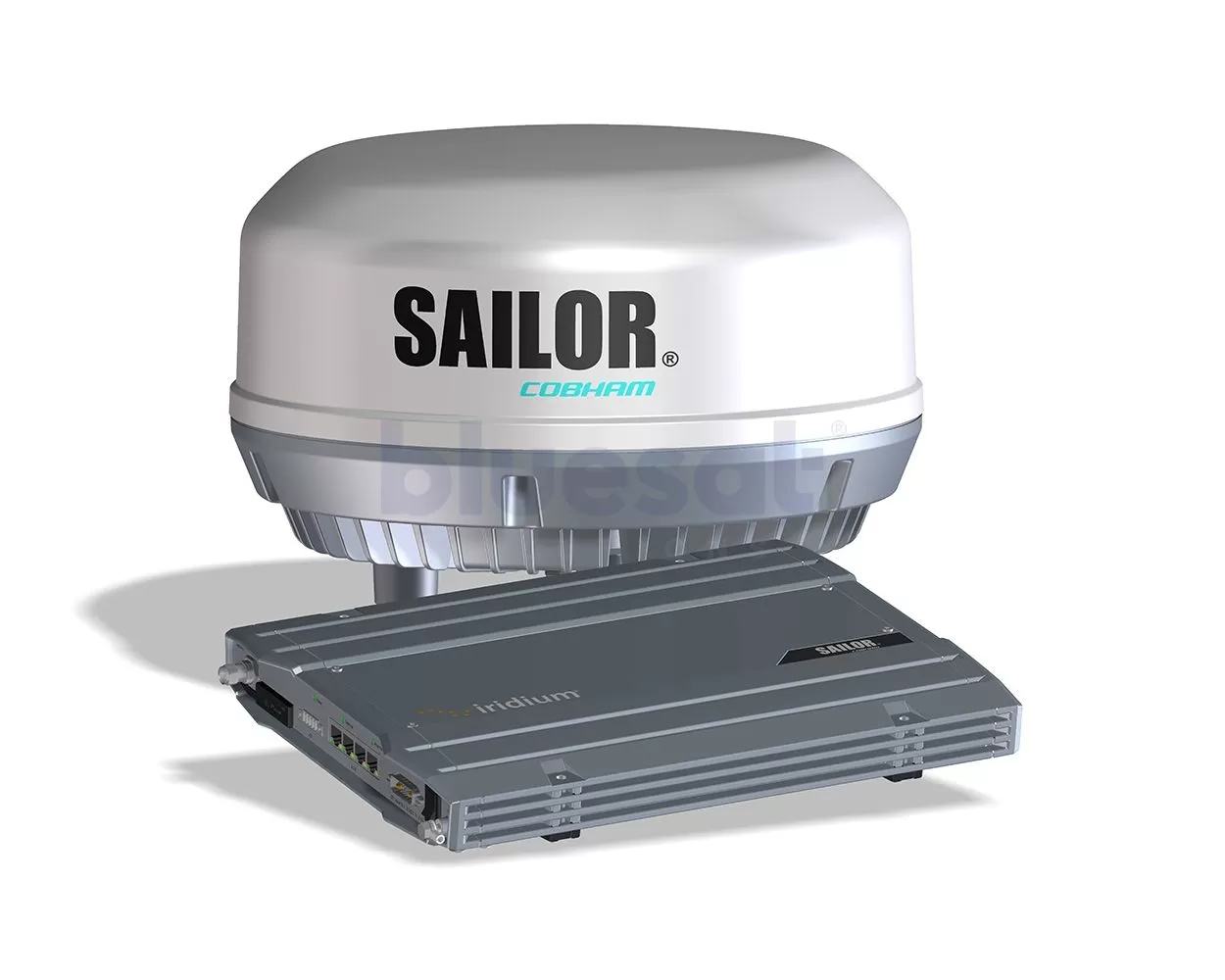

Cobham SAILOR 4300 Satellite Terminal Includes
- 404338A-00500 SAILOR 4338A Below Deck Unit
- 404352A-00500 SAILOR 4352A Above Deck Unit (without cable)
- 98-159746 Installation Guide SAILOR 4300 L-Band
- 98-159912 User manual SAILOR 4300 L-Band System
Cobham SAILOR 4300 Satellite Terminal General Specifications:
| Standard IP | 176/704 kbps |
| Ethernet/LAN | 4 ports |
| I/O Connector | 1 connector |
| Status LED | Full status LED panel |
| SIM Card Slot | 1 SIM Card slot for Iridium SIM card |
Cobham SAILOR 4300 Satellite Terminal Recommended Antenna Cable:
| Cable loss | Maximum 1.8ohm DC loop resistance maximum 10dB loss at 80MHz |
Cobham SAILOR 4300 Satellite Terminal Antenna Connectors Specifications:
| ADU | TNC, female |
| BDU | TNC, female |
Cobham SAILOR 4300 Satellite Terminal Power Supply And Consumption Specifications:
| DC input range (isolated) | 10.8V to 31.2V |
| Power (max) incl. antenna & PoE output | 120W @ 10-32 V |
Cobham SAILOR 4300 Satellite Terminal Environmental Conditions Specifications:
| Ambient Temperature | -25 to +55°C |
| Storage | -35 to +85°C |
| Automatic thermal surveillance | Shuts down system gradually in ease of own temperature |
| BDU operating humidity | 95% non-condensing at +40°C |
| BDU enclosure | IP31 |
| ADU operating humidity | 95% non-condensing at +40°C |
| ADU enclosure | IPX6 |
Cobham SAILOR 4300 Satellite Terminal Frequency Band Specifications:
| Rx 1616 | 1626.5 MHz |
| Tx 1616 | 1626.5 MHz |
SAILOR_4300_L_BAND_Product_SheetLeave a Feedback!
