EXPLORER 323 BGAN Terminal

EXPLORER 323 BGAN Terminal
Choose EXPLORER 323 for the Inmarsat BGAN network for a low cost satellite terminal that provide internet connectivity, voice communication and email when on the move.


Ultra-compact and integrated
At 32 cm in diameter and less than 10 cm high, the EXPLORER 323 is the smallest BGAN on-the-move terminal to date. The system a combines a satellite antenna with no moving parts and an integrated modem with WIFI connectivity.

The compact robust design and low price-point of opens up new applications for on-the-move communication, including trains and trucks.

Instant Access
With EXPLORER 323 BGAN terminal you are able to do voice and data communication even when your vehicle is moving. The terminal enables data speeds up to 270kbps standard IP operation down to 5° elevation on the Inmarsat BGAN network. You are able to get the job done even in remote areas with no or limited cellular coverage.


Easy to deploy
EXPLORER 323 is easy to deploy - just place the antenna on the roof of your vehicle, connect your PC or smart device to the EXPLORER 323 wireless network and you are ready to communicate.

You can virtually be in your office in no time at all. Access VPN, catch up on email, browse the web; with fixed BGAN pricing and no roaming fees when you cross borders.

Inmarsat BGAN and BGAN M2M
As a vehicular terminal, EXPLORER 323 is the first BGAN terminal to obtain both Inmarsat Class 12 Type Approval and BGAN M2M Certification, enabling it to operate with traditional BGAN and BGAN M2M SIM cards.

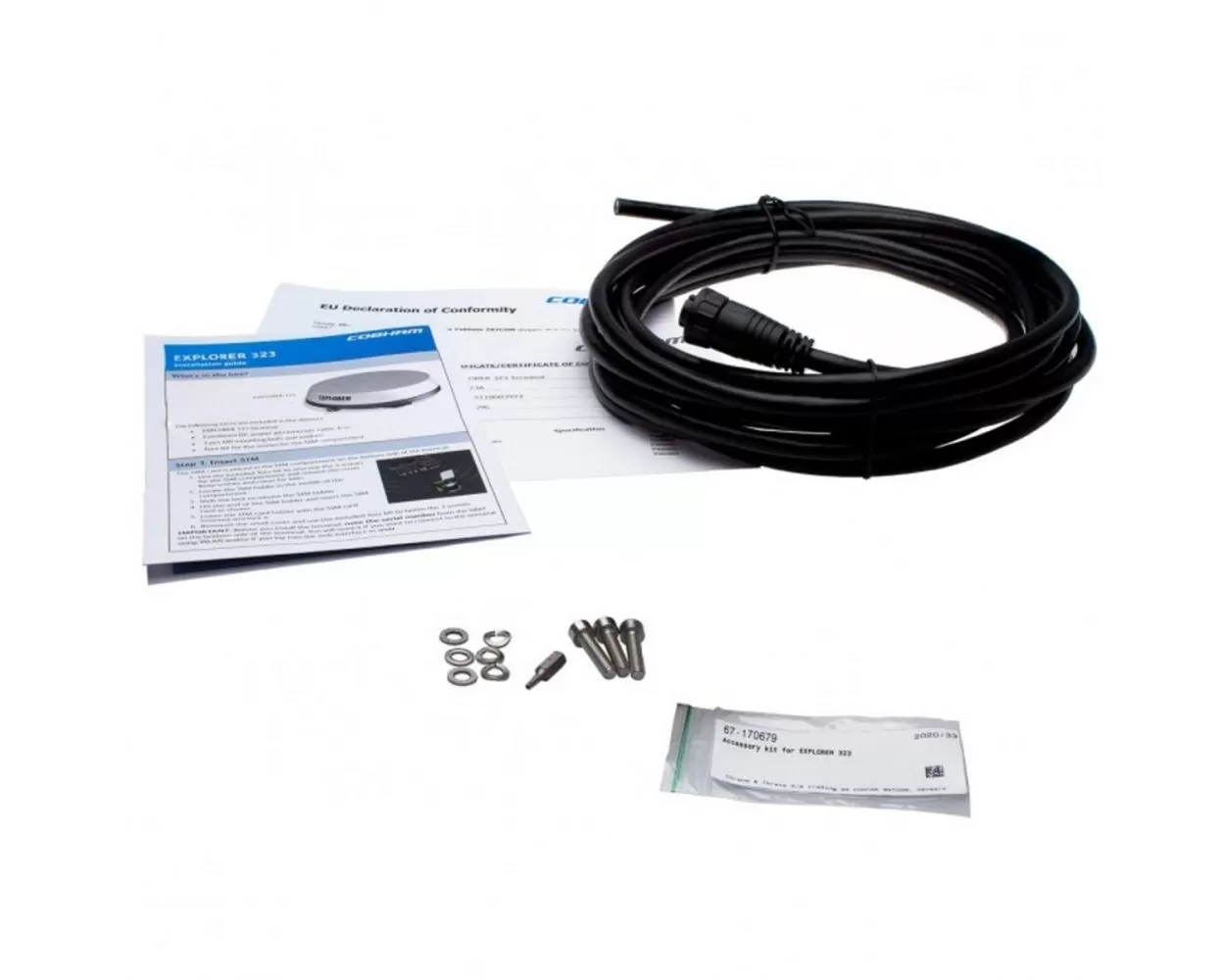

EXPLORER 323 BGAN Terminal Includes:

Explorer 323 antenna and integrated terminal

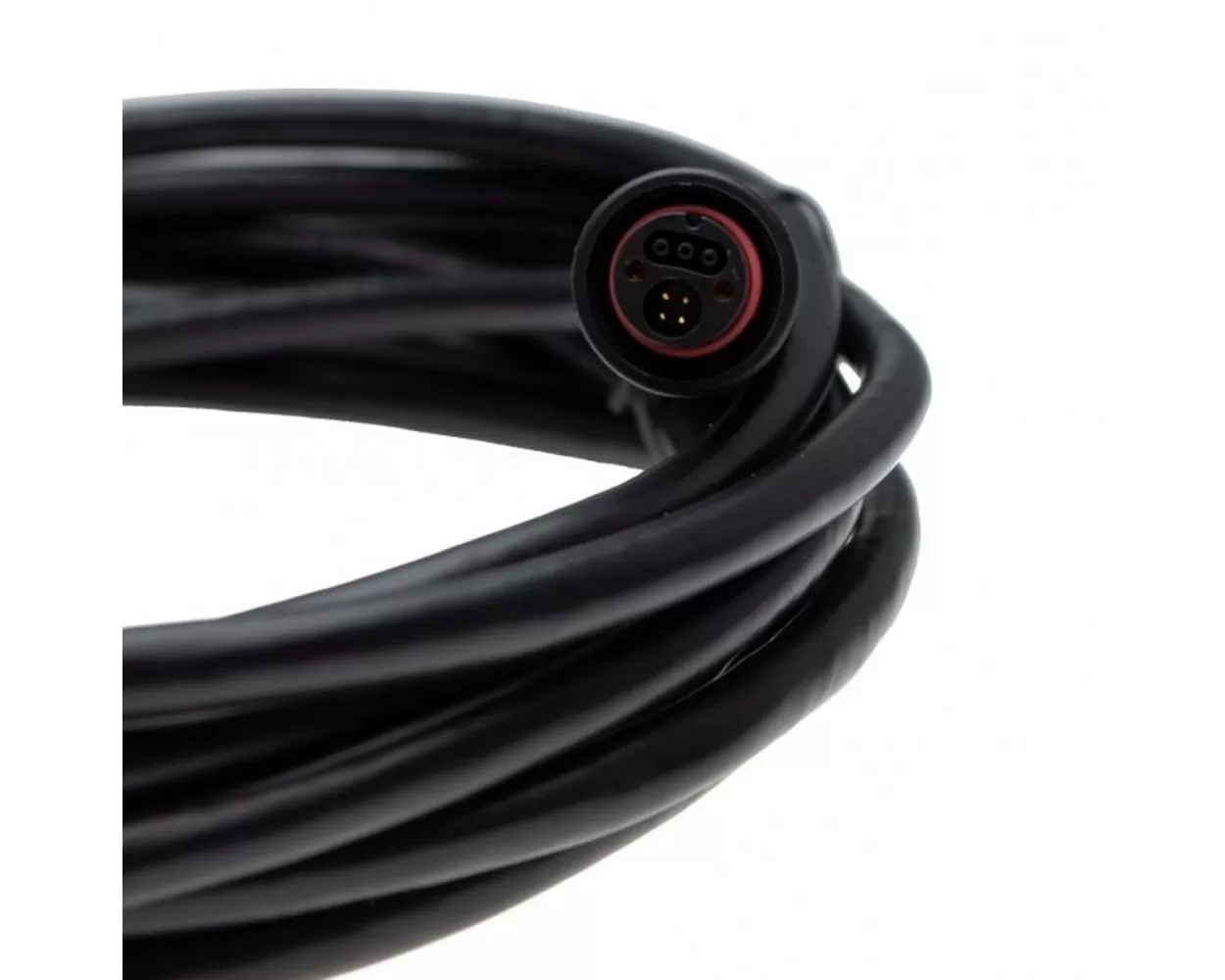

6 m combined 24 V DC power and ethernet cable (open ended)
Installation Guide

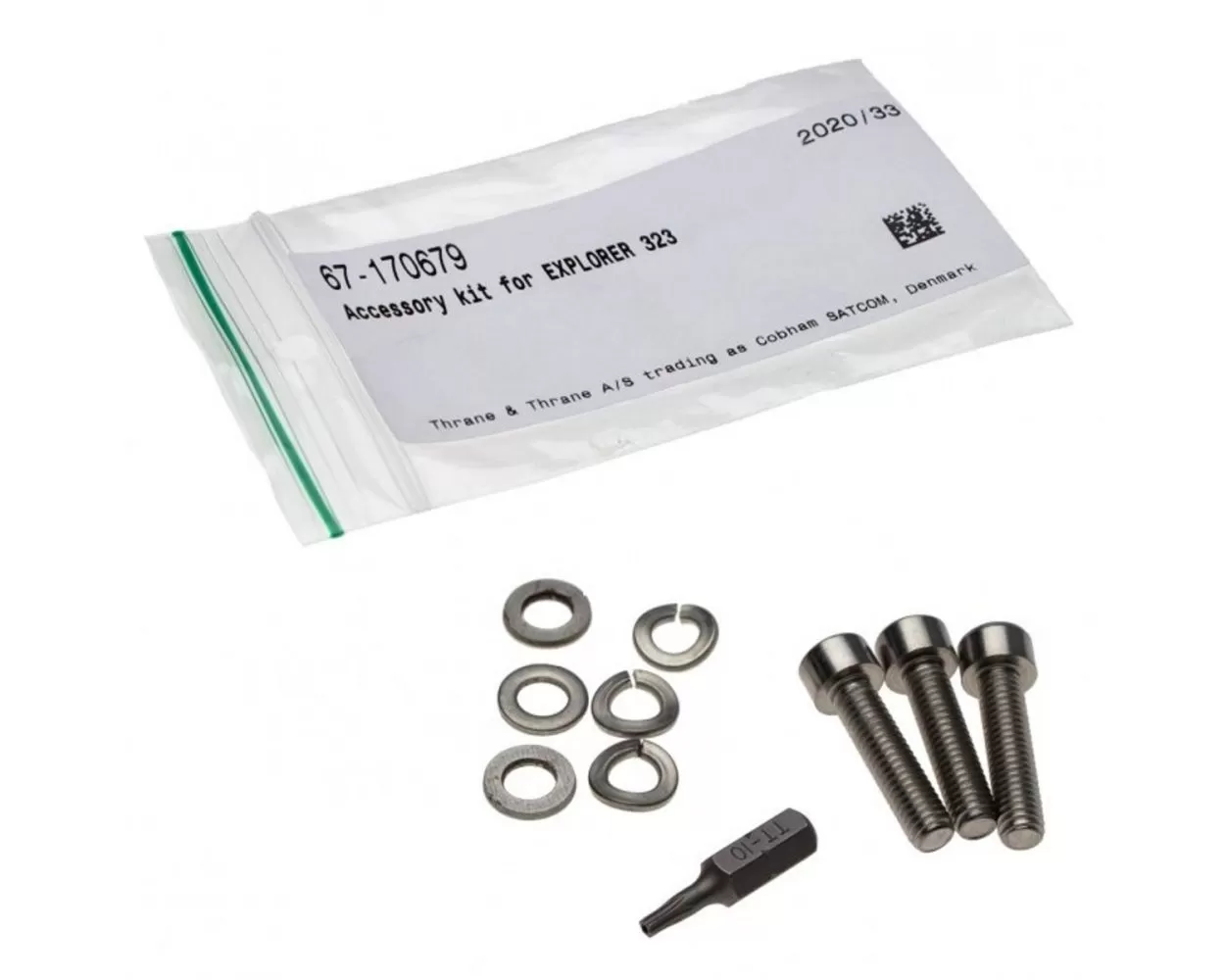

Screws for mounting



Compact & Lightweight
The terminal is ultra-compact and lightweight (just 3.6 kg/7.9 lbs), and has the lowest profile of any BGAN Comms-On-The-Move terminal (97mm including mounts). It uses 12 volts from your vehicle's power port.


Robust & Durable
With no moving parts and an IP 66-rating, EXPLORER 323 is robust and durable and designed for use in any environment. The switched beam technology provides users with service all the way down to 5° elevation.


Global Coverage
BGAN (Broadband Global Area Network) offers global coverage internet (except poles) to various of satellite terminals connected to a laptop in remote locations.

EXPLORER 323 BGAN Terminal Key Features

• Voice and data communications on-the-move
• Ultra-compact, easy to deploy, one-piece design (the transceiver is integrated into the domed antenna)
• Cost effective
• Rugged and robust with no moving parts
• Designed to operate in extreme environments
• Designed for use with Inmarsat BGAN and BGAN M2M services

• Voice calling using the Explorer Connect Android and iOS apps
• SMS message using smartphone messaging app
• Asset tracking over the BGAN M2M network
• Web interface for usage logs, options and many other features.
• Designed for extreme environments - IP66 and operates at -25 to +55°C / -13 to 131°F
• Compact design - 12.7" diameter 3.82 height (.321 x .097 meter)
