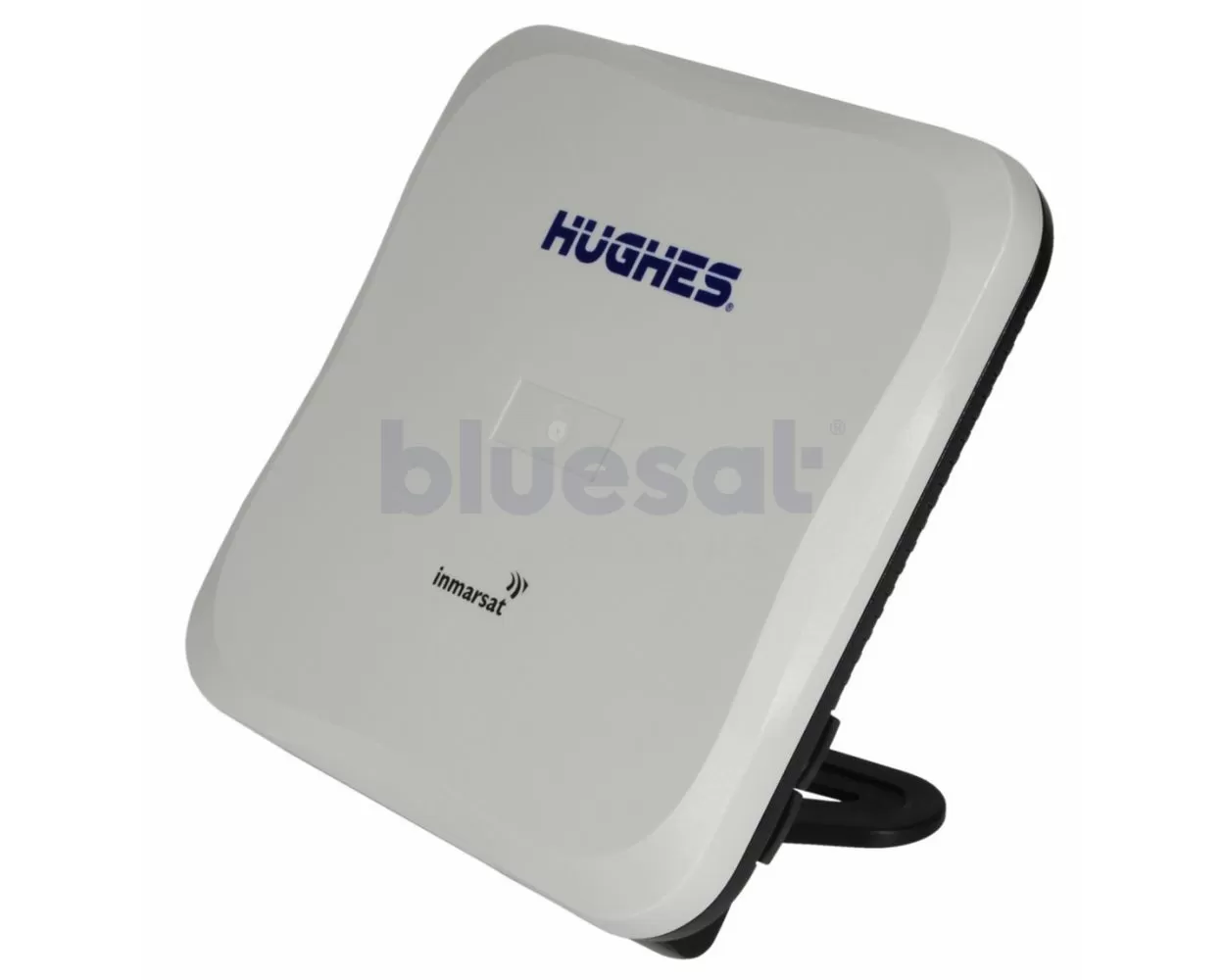

Hughes 9202 BGAN Land Portable Satellite Terminal
Broadband satellite IP terminal with built-in Ethernet, replaceable battery pack, RJ11 for voice or fax, external port to connect a tracking antenna, and built-in 802.11 Wi-Fi access point.
A budget-friendly and highly attractive class 2 portable terminal, the Hughes 9202 is ideal for governments and NGOs, first responders, public safety and mobile health care workers, and remote personnel in industries such as utility, oil and gas, forestry, cable, and telecommunications.
The Hughes 9202 operates over the Inmarsat Broadband Global Area Network (BGAN) satellite service and provides high-performance connectivity and reliability for the most demanding users and extreme conditions.
Using the world’s smallest class 2 BGAN terminal, users can connect at IP broadband speeds up to 464kbps, as well as take advantage of such features as built-in multi-user Wi-Fi access and automatic context activation (ACA), including the ability to transmit SMS messages via the integrated user interface (IUI) without a connected laptop, smart phone, or other user device.
The Hughes 9202 allows the user to send and receive IP traffic via Ethernet and Wi-Fi. In parallel with the packet data service, the Hughes 9202 supports full ISDN and circuit switched voice and fax calls via a two-line RJ11 plug.
Corporate disaster planners and remote field personnel can collaborate with confidence and efficiency with various agencies and headquarters staff using video, voice, and data simultaneously. As with all Hughes BGAN models, the Hughes 9202 is IP-based, delivering selectable, dedicated Quality of Service (QoS) levels.
Hughes 9202 BGAN Features:
- Rugged and durable IP55 rating

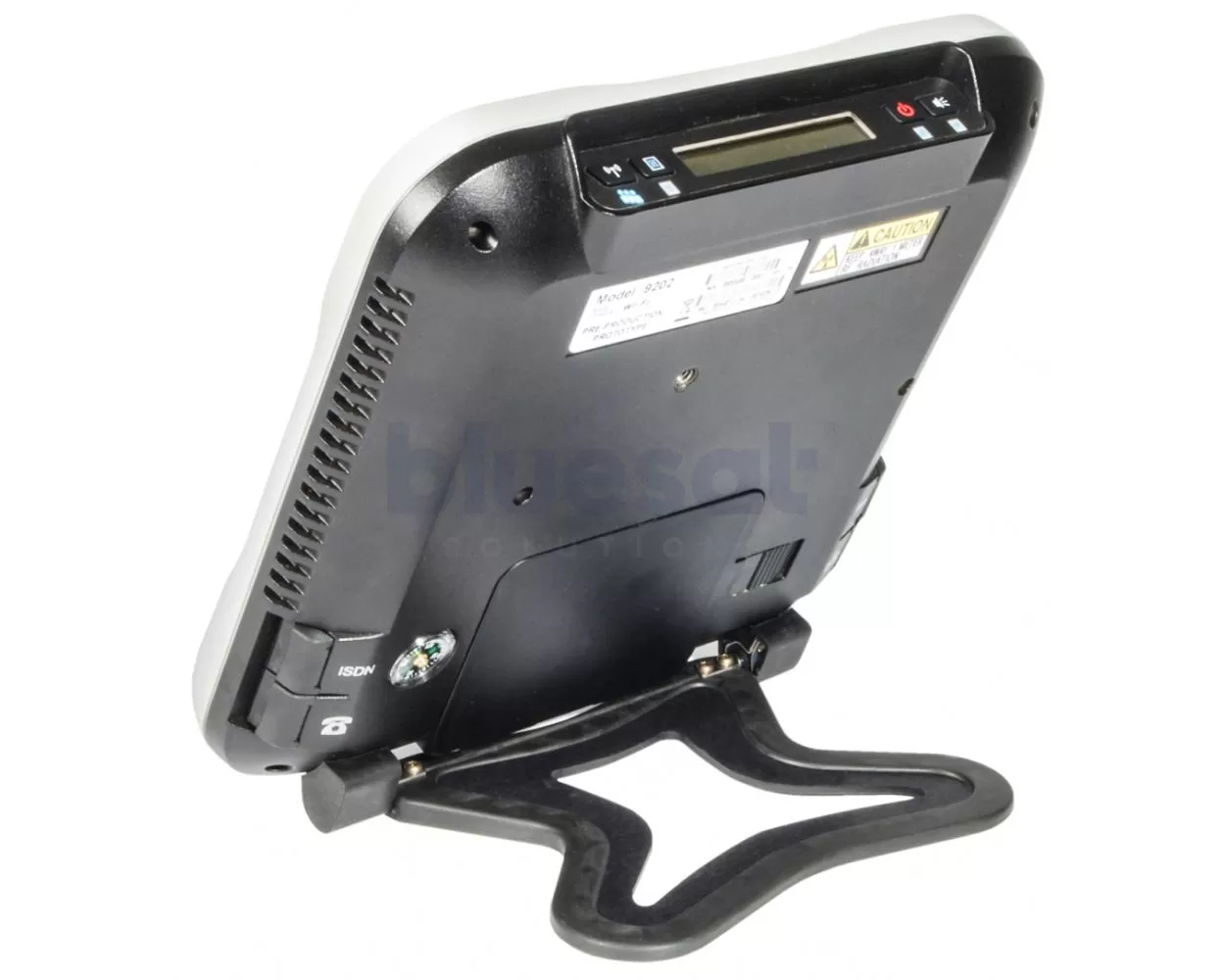

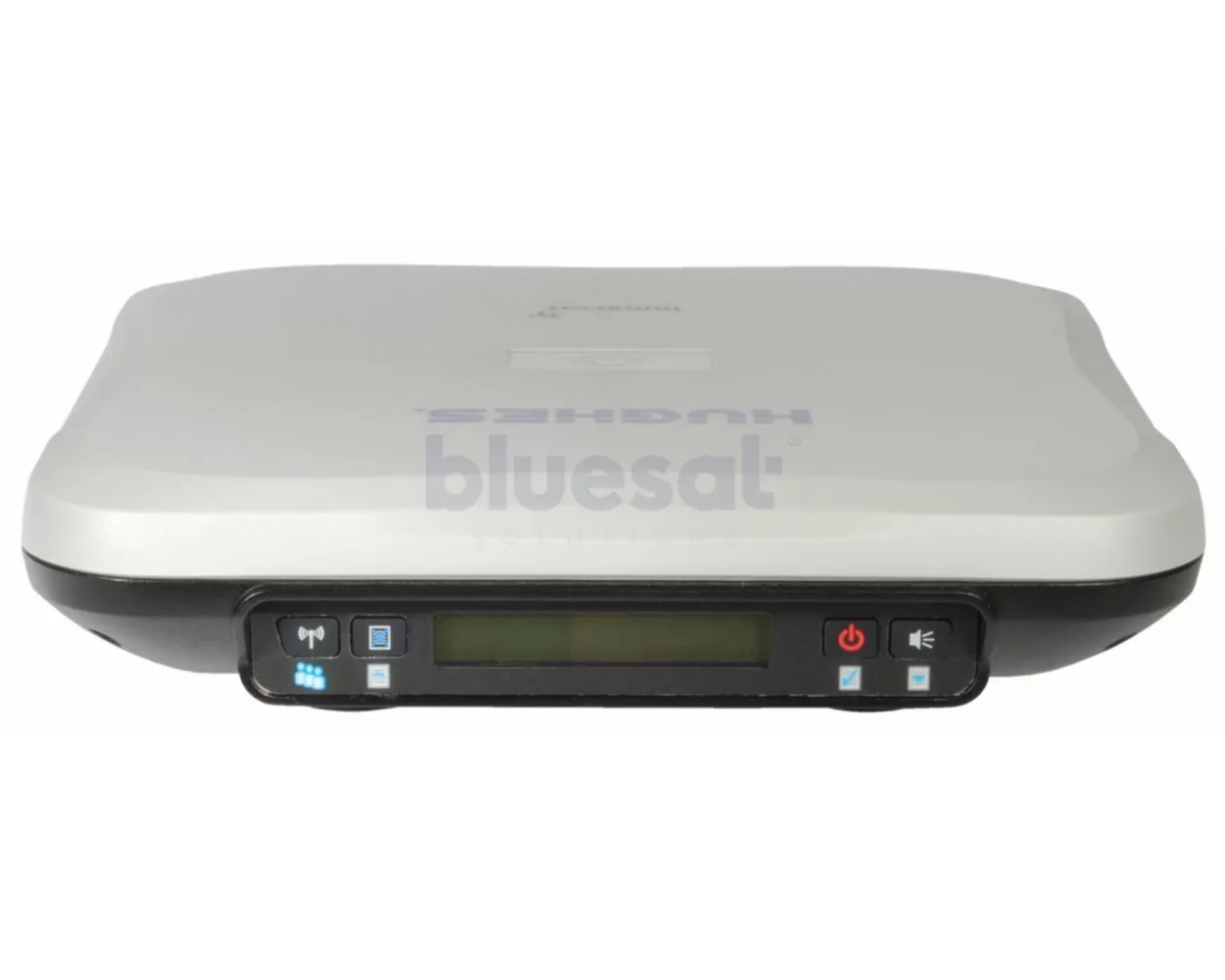

- Backlit LCD user display including four-button control
- Wi-Fi supporting multi-user access
- Two-line RJ11 for voice and fax
- Advanced integrated user interface (IUI)
- Automatic Context Activation (ACA)
- XL-band supported
Hughes 9202 Inmarsat BGAN Terminal Interfaces:

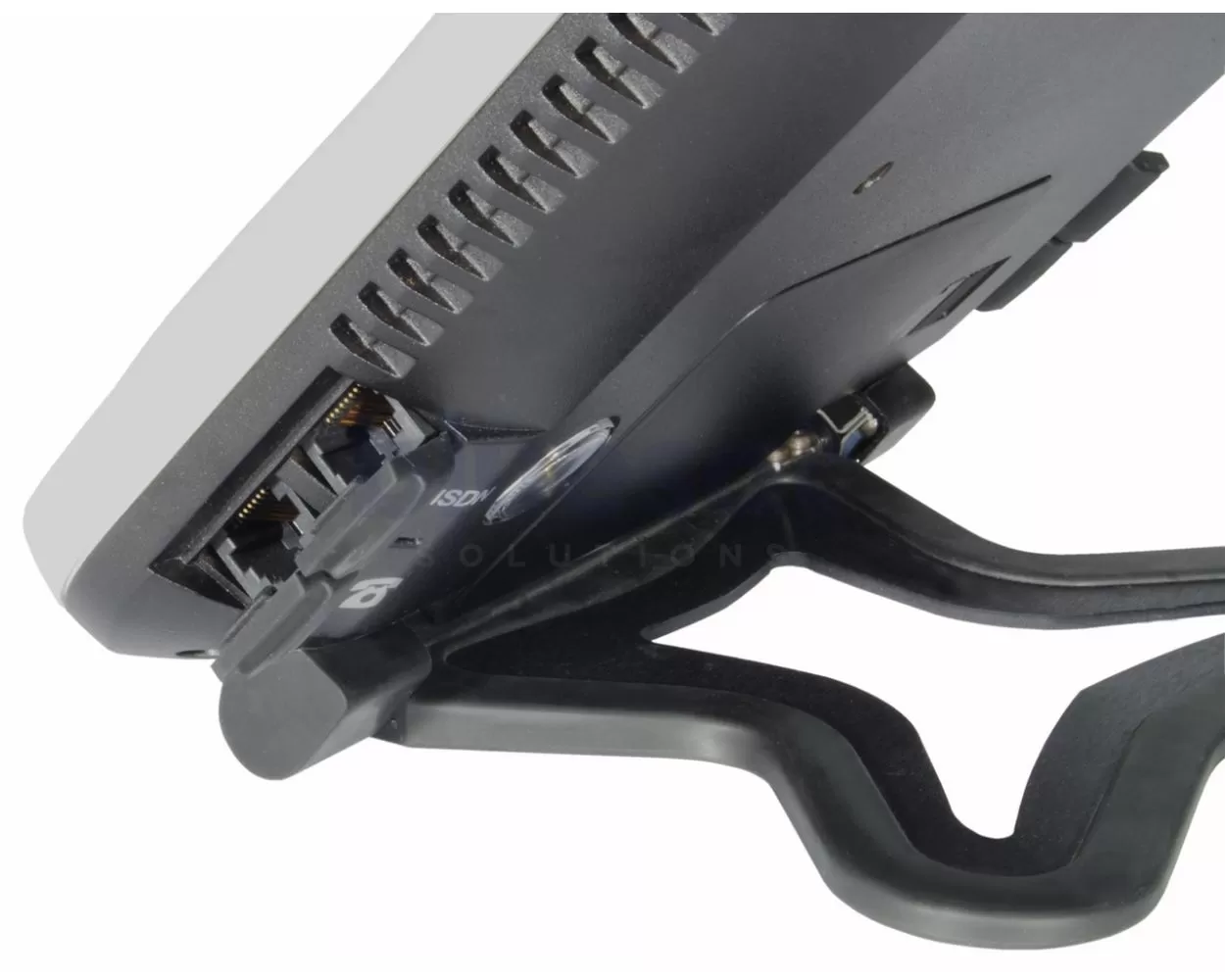

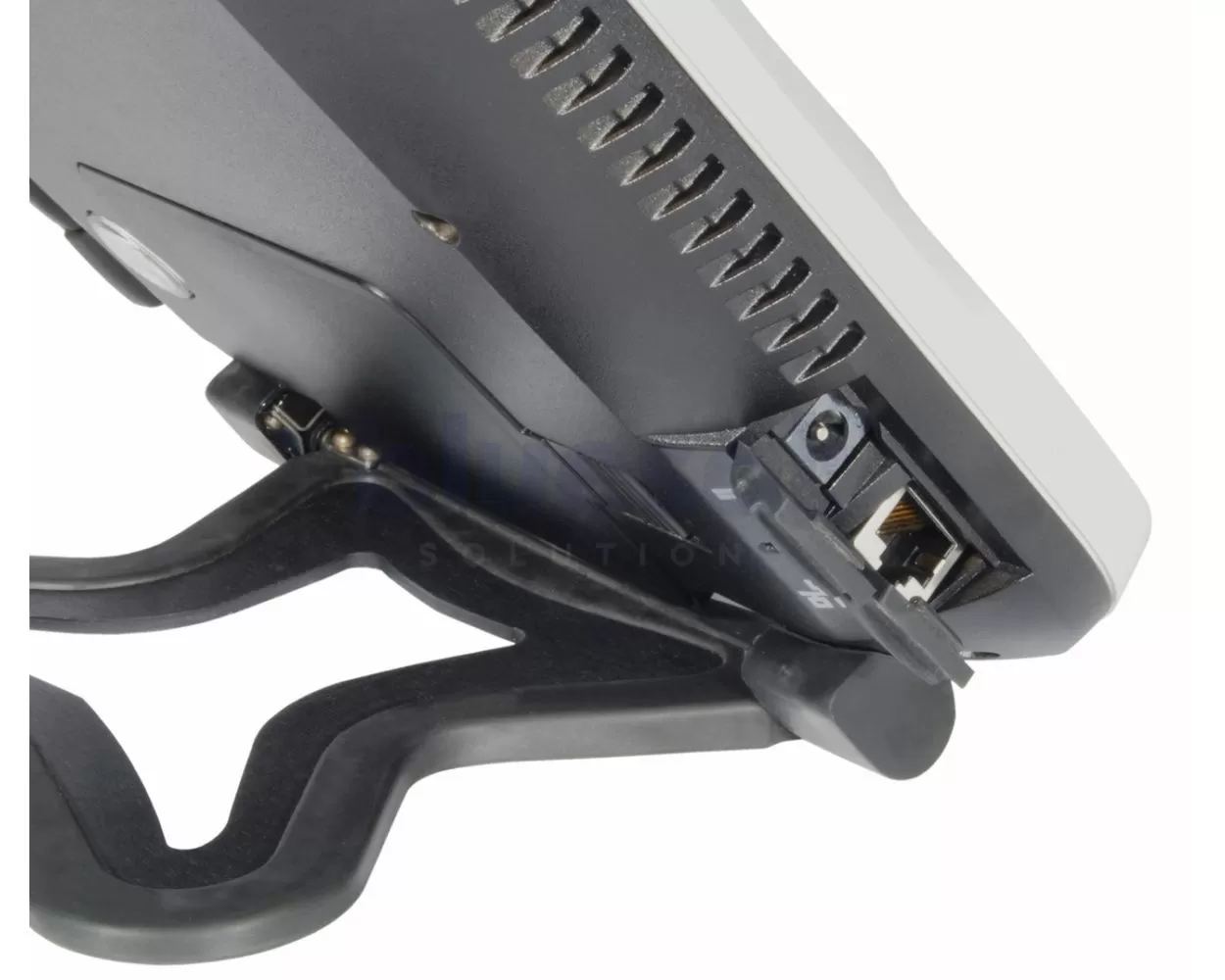

- Ethernet connection (RJ45)
- 802.11b Wi-Fi
- Two-line RJ11 for voice and fax
- ISDN

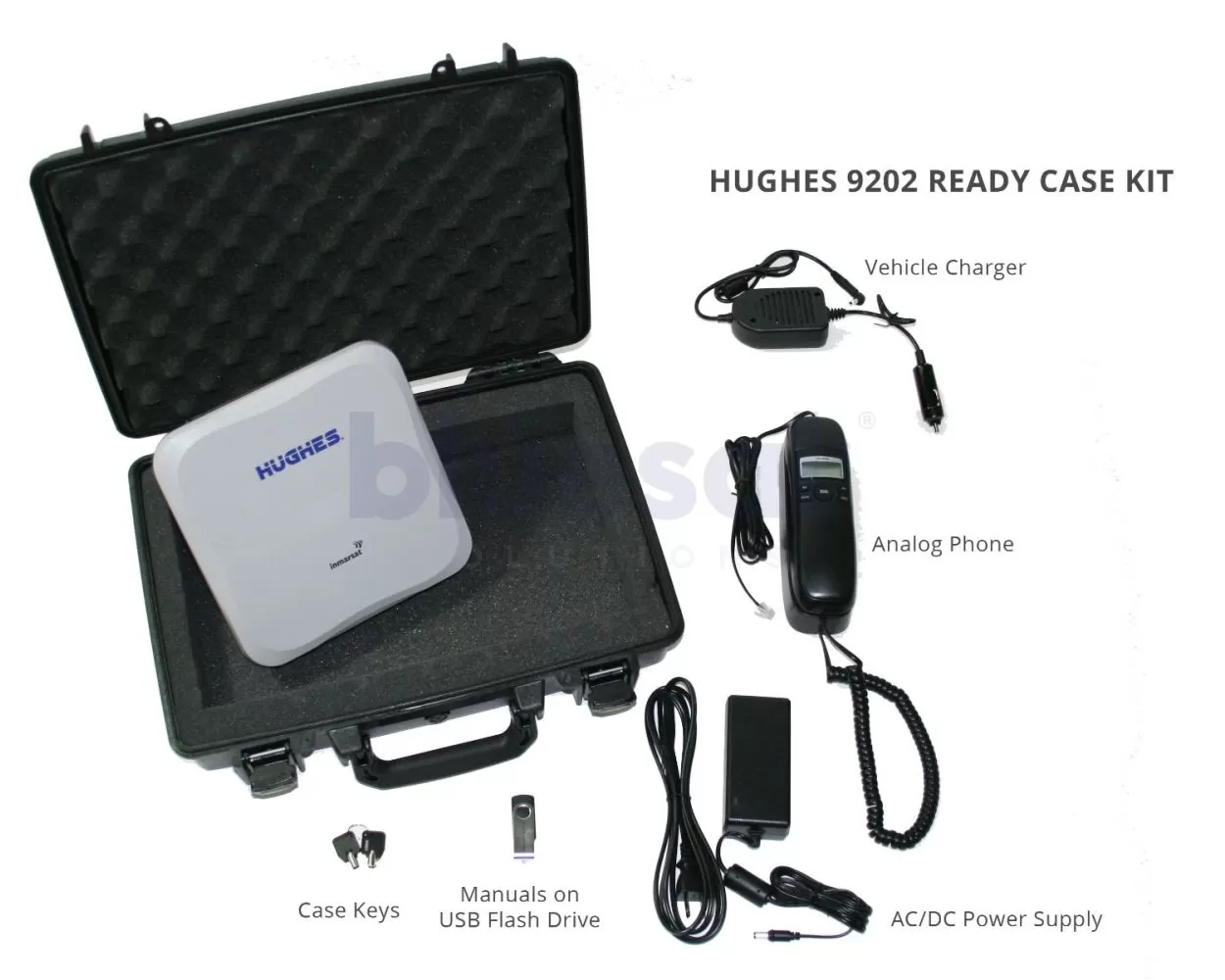

Hughes 9202 Inmarsat (HUGHES-9202) Includes:
- Hughes 9202 Land Portable Terminal

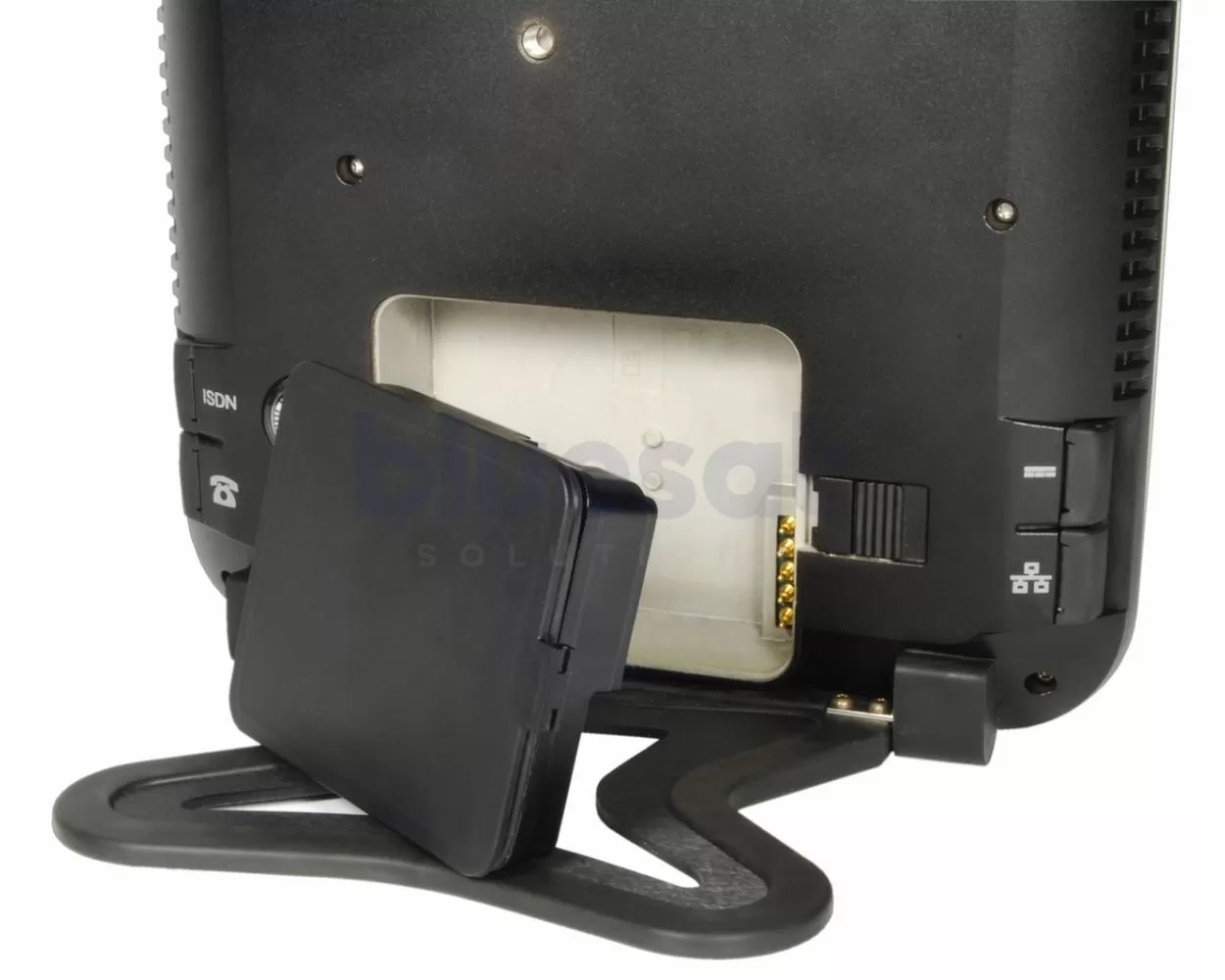

- Rechargeable lithium ion battery pack
- 5m Ethernet cable
- AC/DC adaptor with UK, EU, and US power cables
| Key Highlight: | High performance, multi-user device |
| Manufacturer: | Hughes Network Systems www.hughes.com |
| Size: | 216 x 216 x 45 mm (8.5 x 8.5 x 1.8 in.) |
| Standard IP: | Up to 448 Kbps send, up to 464 Kbps receive |
| Streaming IP (send & reveive): | 32, 64, 128, 176 Kbps |
| Voice: | Via RJ-45 ISDN handset, via ISDN TA with two RJ-11 ports for voice or 3.1kHz for audio / fax |
| ISDN: | 64 Kbps via RJ-45 |
| Other data Interfaces: | thernet, USB, WLAN 802.11b |
| Ingress protection: | IP55 |
| Terminal Capability: | Internet, Email, Phone, VoIP, ISDN (64 Kbps), FTP, FoIP (Fax), SMS Text, Video Streaming |
| Internet Connection Speed: | Class 2 BGAN - 464 Kbps down x 448 Kbps up with standard IP connection |
| BGAN Rx/Tx Frequencies: | L-band, Rx @ 1518.0-1559.0 MHz, Tx @ 1626.5-1660.5 & 1667.3-1676.2 MHz |
| Wireless LAN: | 802.11b - 100' radius. Up to 11 concurrent wireless connections |
| Wireless Security: | WEP 64 & 128 bit, MAC filtering options for up to 10 devices |
| Interfaces: | RJ45 Ethernet, Two Line RJ11 Phone port - requires small RJ11 splitter for 1 phone and 1 fax |
| Other Ports: | Power & charge port |
| Phone Features: | Call forwarding, call waiting, call holding, call barring, call transfer |
| Streaming Services 1:1CIR: | 32, 64 and 128 Kbps |
| Dimensions: | 216 x 216 x 45 mm (8.5 x 8.5 x 1.8 in.) |
| Weight: | 1.5 kg (3.3 lbs.) |
| Onboard Battery Life: | 36 hours on standby, 5.5 hours continuous RX, 3.25 hours continuous transmitting/streaming |
| Max Vibration: | 200-2000 Hz, 0.3 m2/s3; MIL-SPEC 810B METHOD 500.3 procedure 1 |
| Humidity: | 95% RH at +40° C (+104 F) |
| Operating Temperatures: | -5˚ C to +55˚ C (+23° F to +131° F) with battery or -25˚ C to +60˚ C (-13°F to +140°F) without battery. |
| Battery Charging Temperature: | 0˚ C to 40˚ C (+32° F to +104°F) |
| Rain / Water / Dust: | IP55 Compliant |
| Power: | 20 Volts DC 110 to 240 AC |
| Power Cables: | 2 pin US type, 3 pin Euro, 2 Pin UK |
| Other Cables: | USB, Ethernet (RJ-45), ISDN (RJ-45) |
| Wind: | Operational wind loading (with stand secured to ground) 40 km/h (25 mph) |
| Ice: | 20 mm before non-operation |
