Hughes 9450-C11 Series BGAN Mobile Satellite Terminal

Hughes 9450-C11 Series BGAN Mobile Satellite Terminal
Connect at IP broadband speeds of up to 464 kbps while on-the-move using the world’s smallest mobile BGAN terminal.

Smallest Class11 BGAN tracking antenna available. Customers can connect at IP broadband speeds of up to 464 kbps while on-the-move using the world’s smallest C11 mobile BGAN terminal—the Hughes 9450-C11. The Hughes 9450-C11 Series terminal is fully approved for operation on Inmarsat’s Broadband Global Area Network (BGAN) satellite service and provides high-performance, on-the-move connectivity for the most demanding environments.


Fully Automomous Tracking
Fully autonomous tracking antenna acquires and tracks the BGAN satellite signal while on the move.

High-Speed Data
Customers can now connect at IP broadband speeds of up to 464 kbps while on the move using the world’s smallest mobile BGAN terminal. Also, the Hughes 9350 offers streaming IP speeds of up to 128kbps.



The Hughes 9450-C11 Series is a budget-friendly and highly competitive mobile terminal, ideal for government, first responders, public safety, mobile healthcare, and remote mobile fleet personnel in industries such as utility, oil and gas, forestry, cable, and telecommunications.


Near Global Coverage
Inmarsat offers reliable global coverage, excluding the poles.

Simultaneous us of Ethernet and WLAN
The Hughes 9450 terminal also has four (4) Ethernet ports with Power over Ethernet (PoE) that allow the user to connect multiple devices. The terminal supports analog and ISDN circuit-switched voice calls, along with fax and 64 kbps ISDN data.



Corporate disaster planners and remote field personnel can collaborate reliably and efficiently with various agencies and headquarters staff using video, voice/VoIP and data simultaneously. Select Hughes 9450-C11 models include a built-in Wi-Fi access point (see below table for details). The Hughes 9450-C11 terminal is IP-based and offers selectable, dedicated Quality of Service (QoS) levels.


Easy to Install
The Hughes 9450 offers simple and flexible options for quick installation on any vehicle.The mini-antenna may be permanently mounted for fleet-style installation or the optional magnetic roof mount can be used for rapid installation and removal. The antenna includes a single, 8 meter RF cable connection.

GTCTrack Compatible
Our online mapping portal can track your Hughes 9450 to provide real-time information via your GPS location. Any person provided with the login can become an operator to monitor any number of GSM or satellite assets simultaneously in real time and historically on both the Basic and Professional plans.



Simple, quick, and flexible options are available for installation on any vehicle. The mini-antenna may be permanently mounted for fleet-style installation or the optional magnetic roof mount can be used for rapid installation and removal. The antenna includes a single, RF cable connection.


Key benefits:

Geo-Fencing capabilities (Professional Plan only)
Alert options available, with varying degrees of urgency for operator and device holder
Global Tracking
Multiple layer options and map views
Inclusive to all devices with GPS tracking capabilities
Past-tracking data points are always accessible until the device is de-activated
Mapping and asset grouping customisation options are available
Data Reporting and Scheduling functions
Notifications and alerts can be sent directly to the holder of the device


Hughes 9450-C11 BGAN Mobile Satellite Terminal Features



Voice
Stay only a voice call away from friends, family or colleagues even when in the remotest of areas.

SMS
Send a message through your device to an email address or SMS number. Not all mobile networks allow you to send text messages to satellite networks and as a result text messaging can be unreliable. Please check with your provider or contact us for further information.

Tracking
Automated tracking is available on this device meaning contacts back home can follow your journey or you can monitor the movement of your assets.

High Speed Data
This unit offers speeds capable of loading basic web pages, email and video. Airtime costs can quickly build up so make sure you setup usage alerts with us to keep on top of your spending.

Hughes 9450-C11 Mobile BGAN Unit (Class 11) Includes:

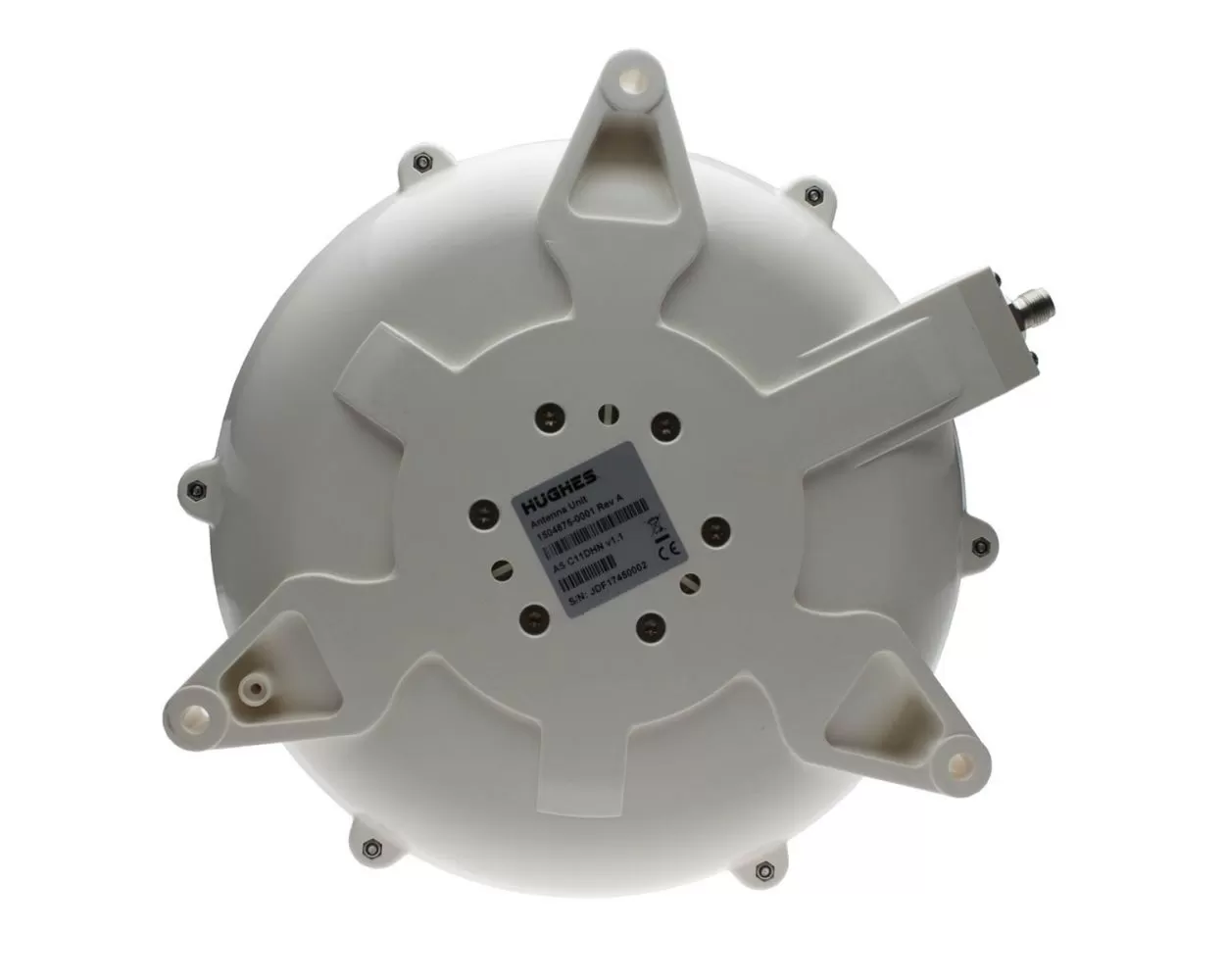

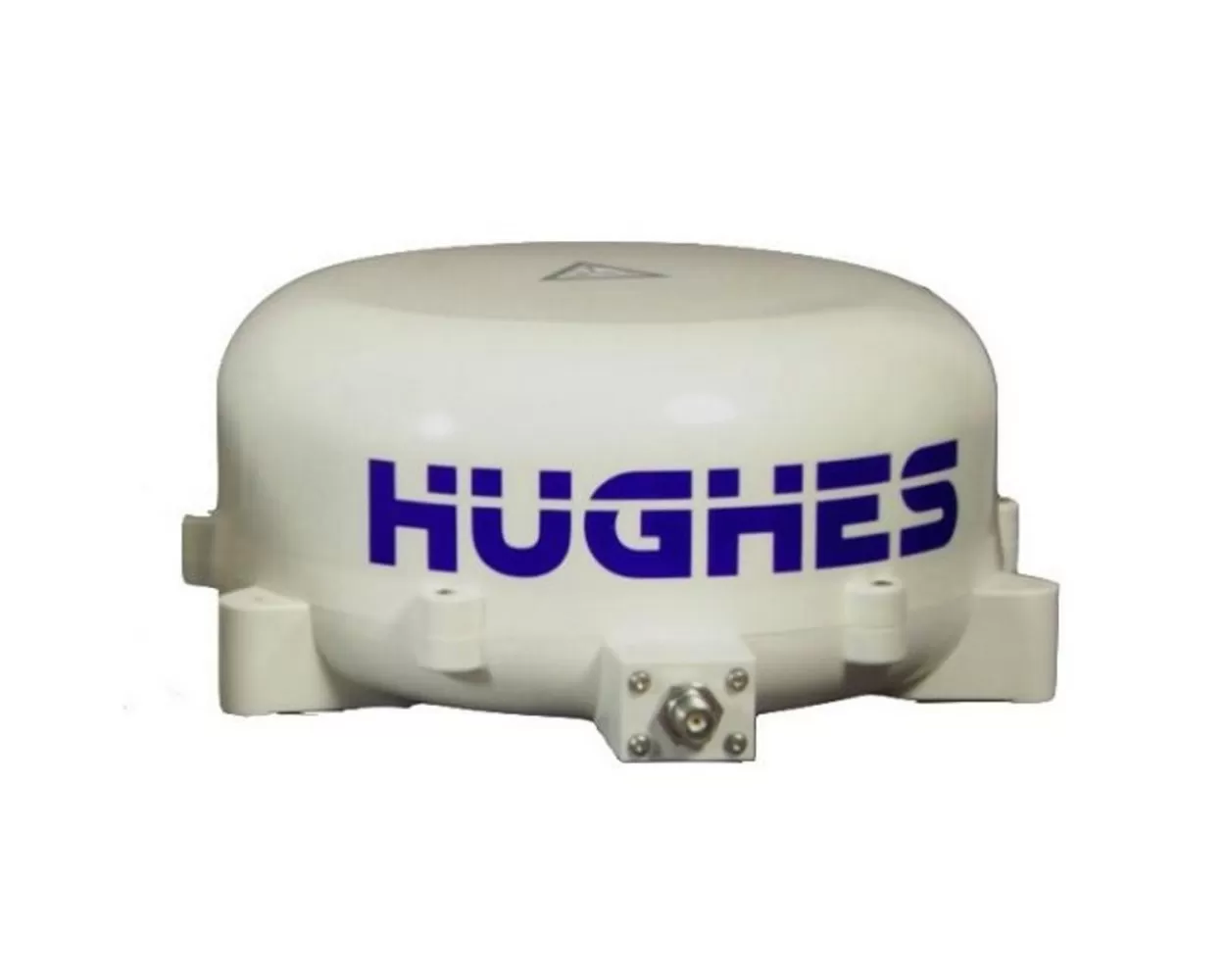

• A compact 12" Inch antenna - All weather design

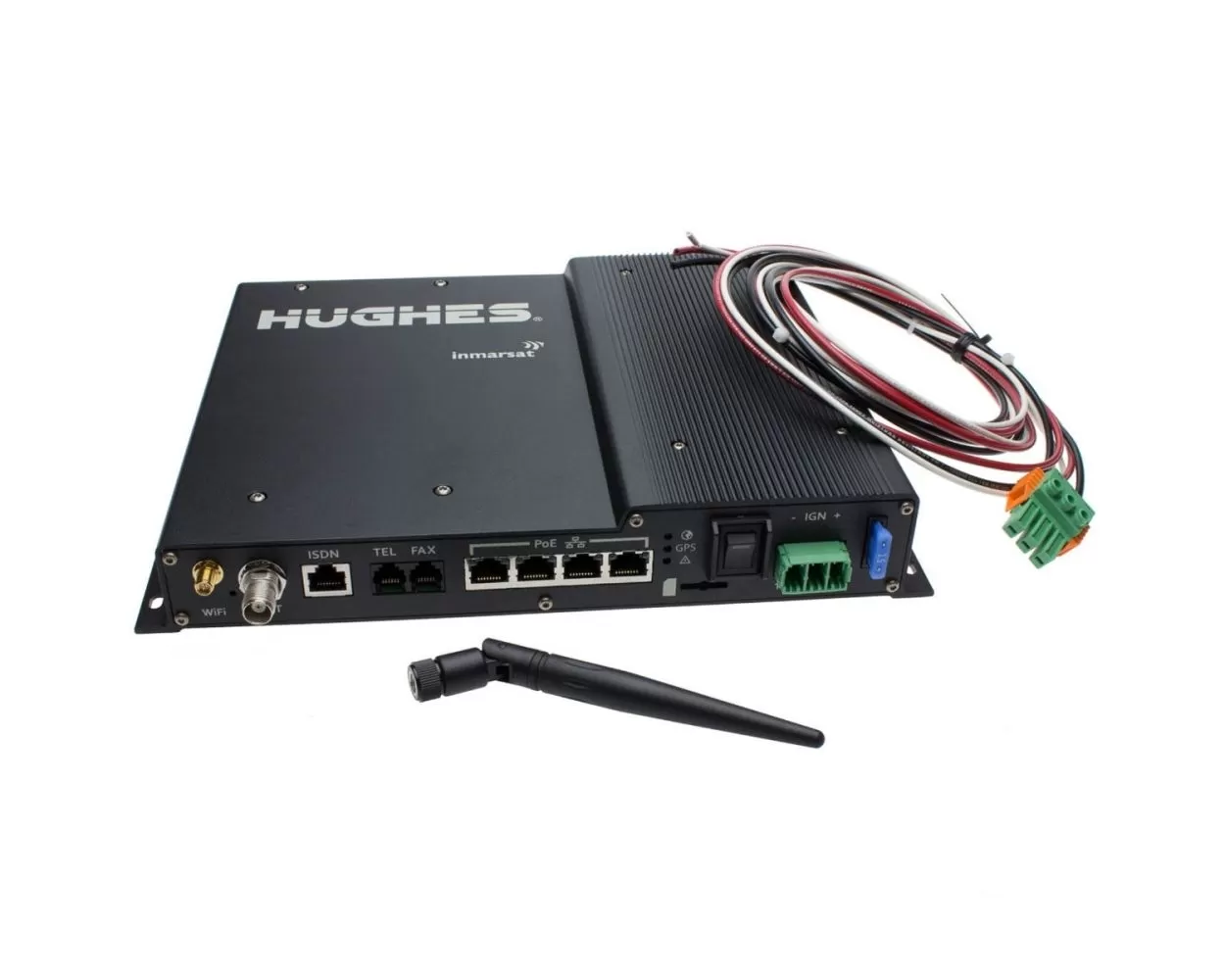

• Transceiver with 4 Ethernet ports and 2 phone ports
• 8 meter antenna cable
• Magnetic mounts (with the Mag-Mount selection)
• Power cable
• Quickstart Guide, Users Manual, Installation Manual on Thumbdrive
