Hughes 9502 BGAN Terminal - One piece model

Hughes 9502 One-piece Terminal
The most advanced machine-to-machine BGAN terminal in the world. The Hughes 9502 One-piece Terminal has the highest industry rating for ingress protection (IP66), exceptionally low power consumption, and an integrated antenna ideal for un-attended sites with M2M applications such as SmartGrid, environmental monitoring, surveillance, pipeline control, well site automation and other long-term unmanned SCADA systems.


For SmartGrid, SCADA, M2M
Somewhere far way, on a lonely windswept plain, a silent, dust-covered sentinel pings the skies, making sure your critical data makes its way home…

And if it’s drawing less than 1 Watt in idle mode, then for sure it’s a Hughes 9502 One-piece Terminal with integrated antenna. Sure, it might be lonely out there, but the Hughes 9502 One-piece likes it that way. Built specifically for long-term, un-attended sites with M2M applications, or SCADA systems that require long-distance communications links for critical data exchanges, the single-piece design is the world’s most-advanced BGAN M2M all-IP terminal.

They Don’t Get Any Tougher than This
Rated IP66 for ingress protection, the 9502 One-piece BGAN terminal is at the top of the industry scale. With a 66 rating, the unit is fully-sealed against particles and dust, and able to operate for long-term deployments in regions subject to wind-borne particulates or dust-storms. It also means that the single-piece construction with integrated antenna is highly-resistant to wet-weather of all kinds, able to withstand high-powered jets of water from every direction.

Properly secured using the optional mount, the Hughes 9502 One-piece has a wind-survival speed of 161 kph (100 mph). Its an all-climate, all-weather terminal, with an operational temperature range that goes from sub-freezing to extreme heat: -40° to +75° C (-40° to +176° F).

With these operational parameters, you can deploy the Hughes 9502 One-piece anywhere the INMARSAT system of communication satellites reaches, and be confident that your systems will be in contact and connected even in extreme conditions.


Energy-efficient
Remote locations that rely on solar battery arrays, or other stored-energy solutions to remain in operation need efficient, low-power devices that help conserve energy over the long-term. The low power-consumption of the Hughes 9502 makes it ideal for sites that are remote, off-the-grid, or power-challenged. Drawing less than 1 watt in idle mode, less than 20 watts sending and less than 3 watts receiving makes the Hughes 9502 the right solution for sites with sensitive power budgets, enabling the Hughes 9502 to provide end-to-end IP connectivity for even the most remote, power-challenged locations.

Hughes 9502 One-piece Terminal Highlights:

• Receive: < 3W
• No usage charge for over-the-air (OTA) modem software upgrades
• Integrated IP Watchdog to ensure "always-on" network connectivity. No manual intervention required to recover from an outage
• Auto-on/auto-context activation automatically restores power and PDP connection to itself following loss of power and/or IP connection
• Built-in GPS receiver

• Remote control via SMS provides management platform for command and control to the terminal using SMS, including configuration, debugging, and remote access to Web interface
• Most-advanced M2M all IP BGAN terminal in the world
• No minimum connection charge
• Minimum billing increment of 1 Kbyte
• Ultra-low power consumption
• Idle: < 1W
• Transmit: < 20W
• Security enhancements with extended layers of embedded security options
• No PC required for basic installation

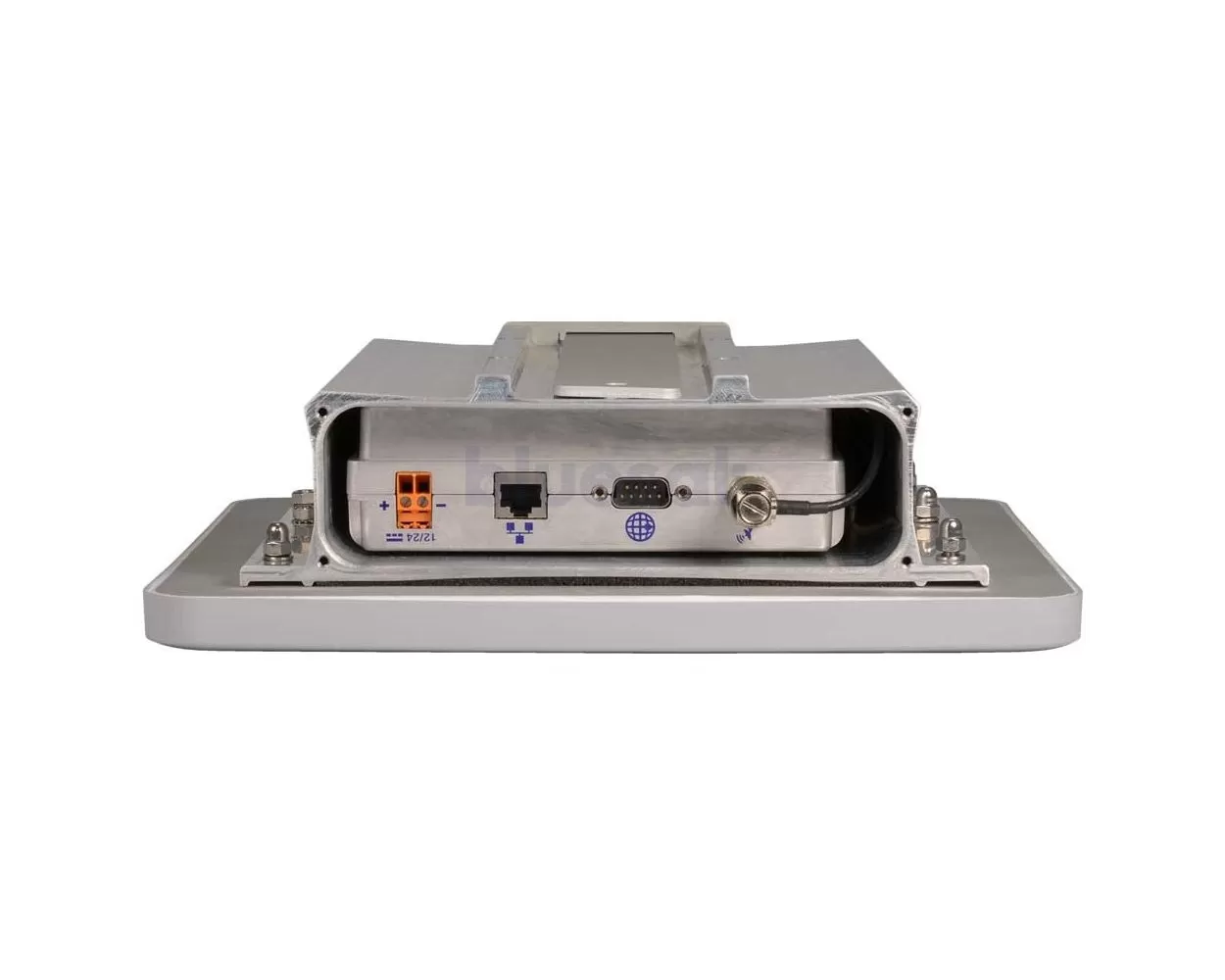

• RJ-45 Ethernet port
• USB Type B for connection to PC for configuration of terminal
• RS-232 (DB9) to external NMEA 0183-based GNSS device (e.g., GLONASS receiver)
