Inmarsat Beam IsatDock2 MARINE

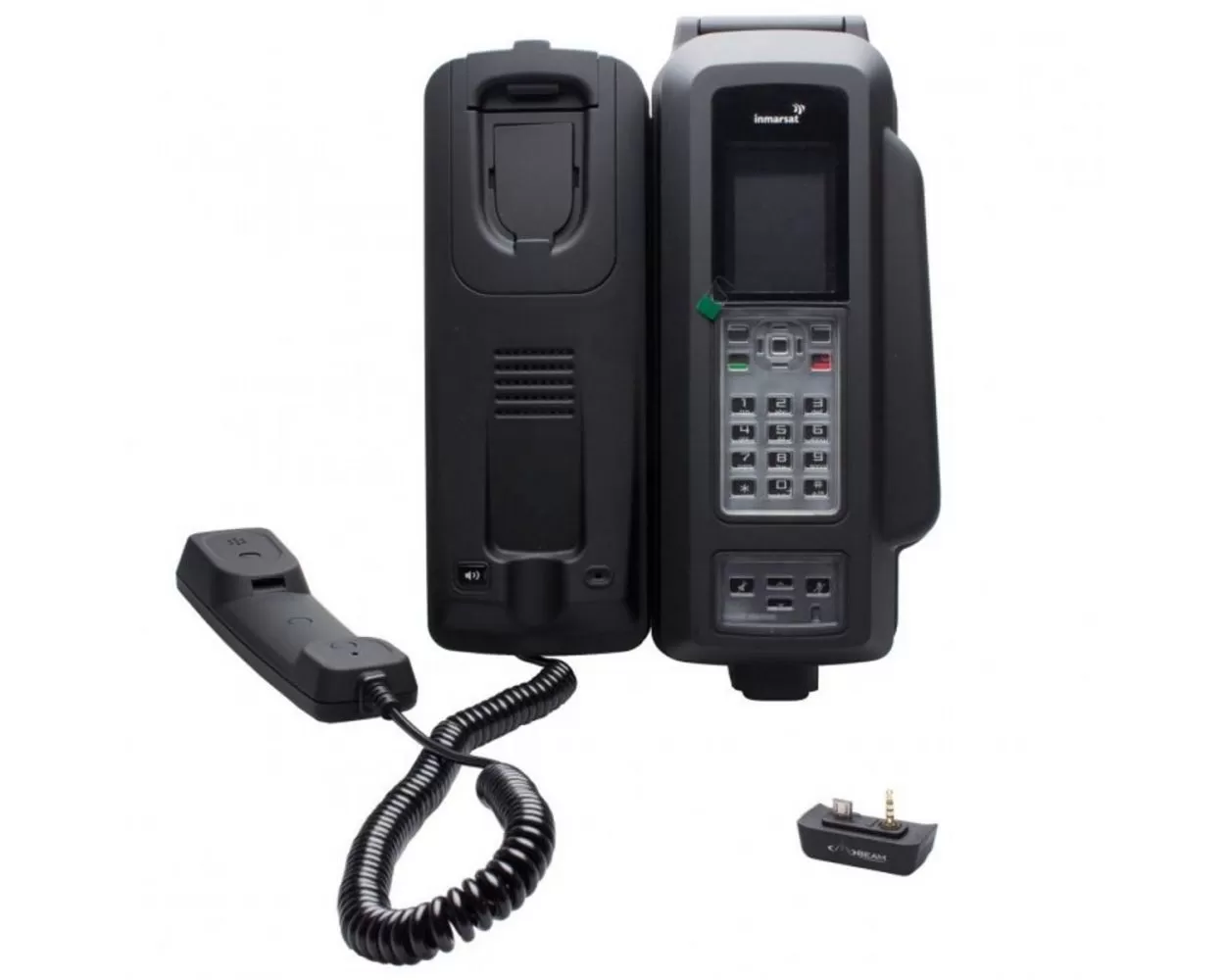

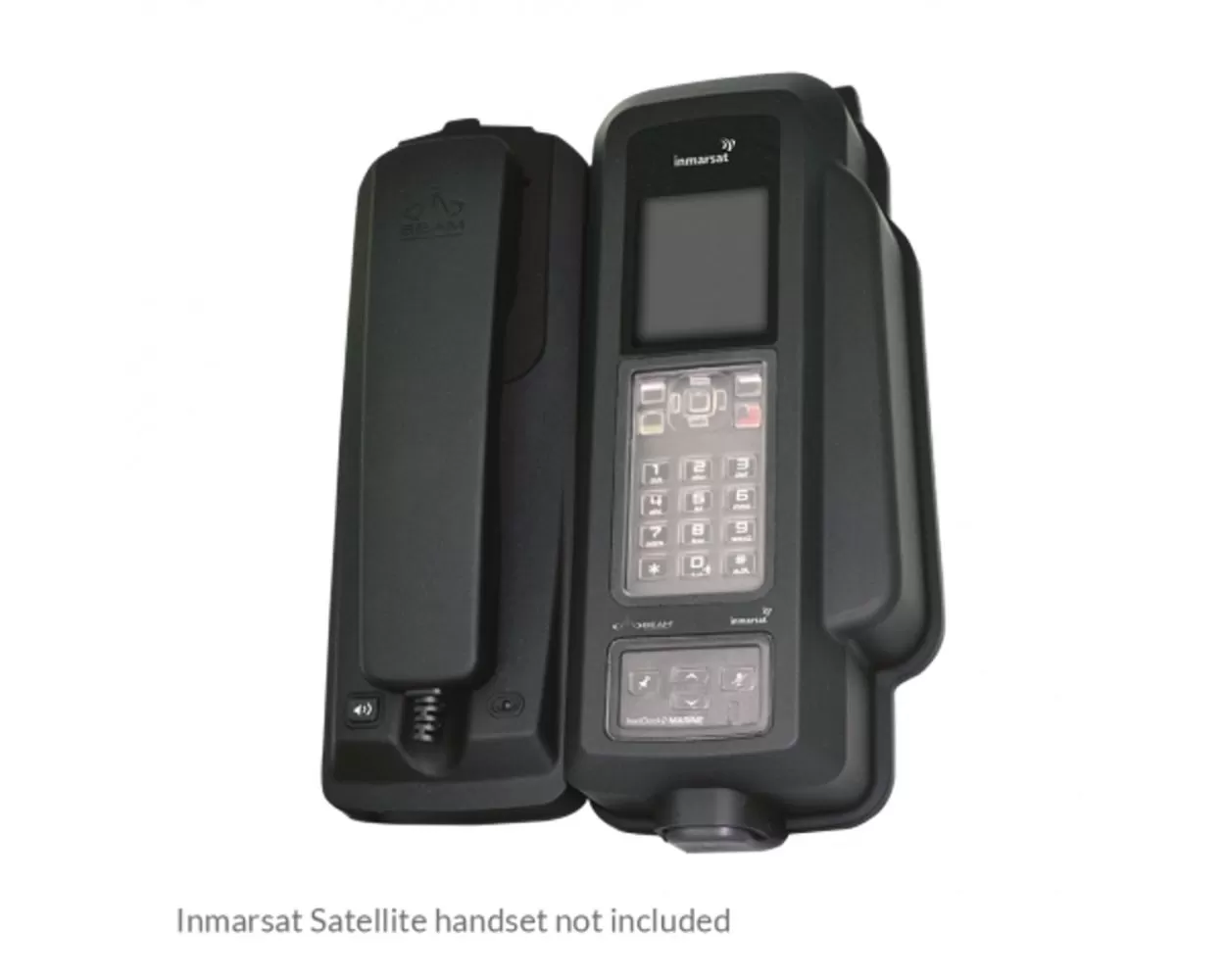

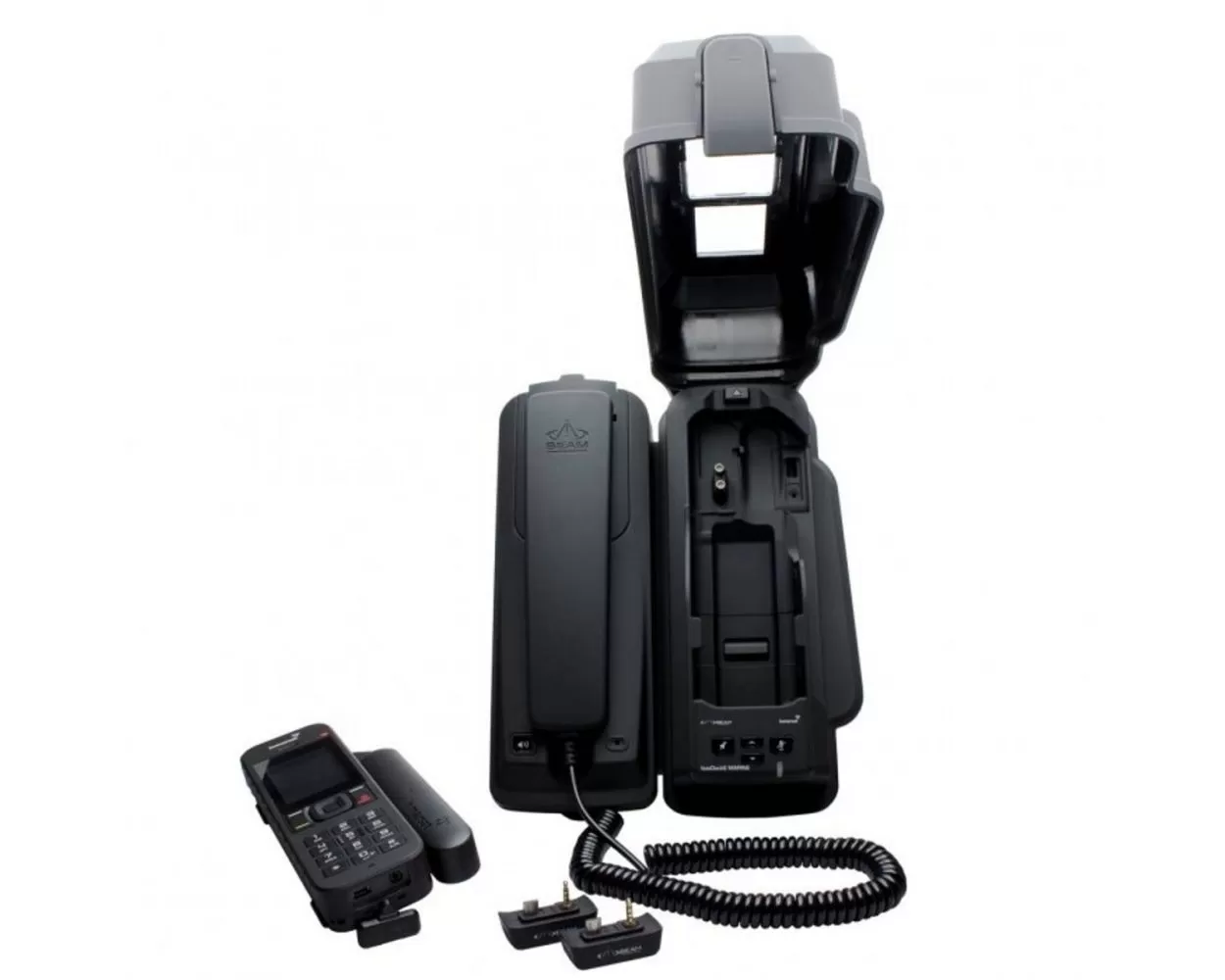

BEAM IsatDock2 MARINE is an IP54 rated intelligent docking station for the IsatPhone 2 specifically designed for maritime application. The MARINE Dock supports voice services via Bluetooth, RJ11/POTS, handsfree speakerphone or the active privacy handset. The IsatPhone 2 is completely enclosed in the docking unit whilst still giving full access and functionality to the user.

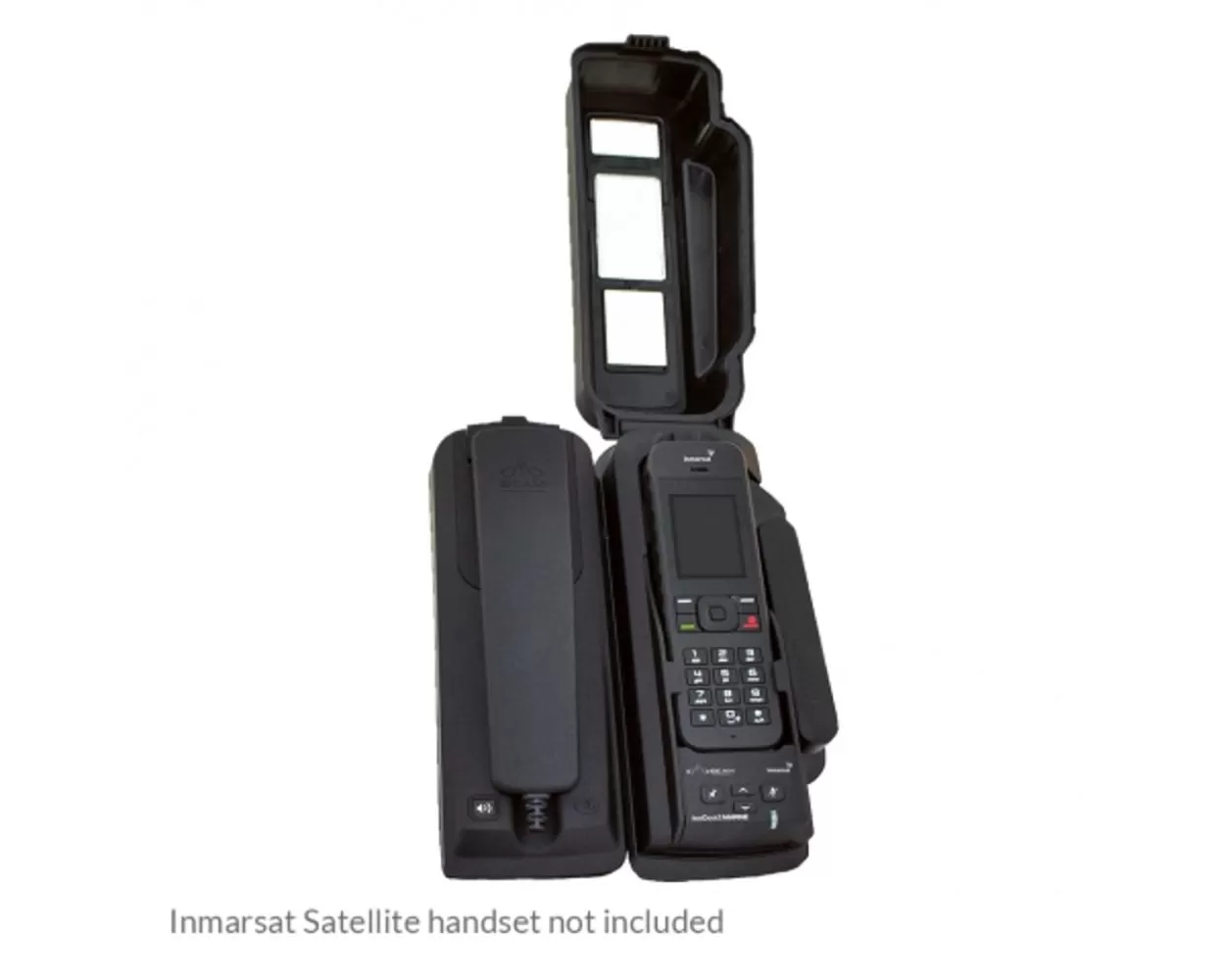

The IsatPhone 2 handset, fits securely in the dock, its features include phone charging, USB data port, in-built ringer and allows antenna and power to be permanently connected to the Dock ready for use
All-in-One Docking Station
The IsatDock2 MARINE supports Personal Alert and Assistance Alert functionality of the IsatPhone 2 handset. Personal Alert messages can be triggered via a single button press on the IsatDock2 MARINE. It will instantly send your GPS position as well as your pre-configured message via SMS or email. The MARINE Dock also supports the installation of an external pendant or alert button that can be fitted in a convenient location.
Intelligent RJ11/POTS Interface
The IsatDock2 MARINE allows the IsatPhone 2 handset to be used in a wide variety of maritime applications, the intelligent RJ11/POTS interface enables cable runs of up to 600m to connect standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network
Instant Message and Tracking Features:
- Dedicated internal GPS receiver
- Tracking:
- Periodic location messages
- SMS, SMS to email
- Location message sent upon button press
- Ignition ON/OFF reporting
- Remote location polling via SMS Instant Message Mode
- Single button press on terminal
- Instant GPS location messages
- Supports external “man down” pendant or button
- Remote clearing of alert via SMS
- Tracking/Instant Message
Key Benefits and Features:
- High quality Marine Grade design
- Bluetooth connectivity, via IsatPhone 2
- RJ11/POTS interface, cable runs up to 600m/2000ft

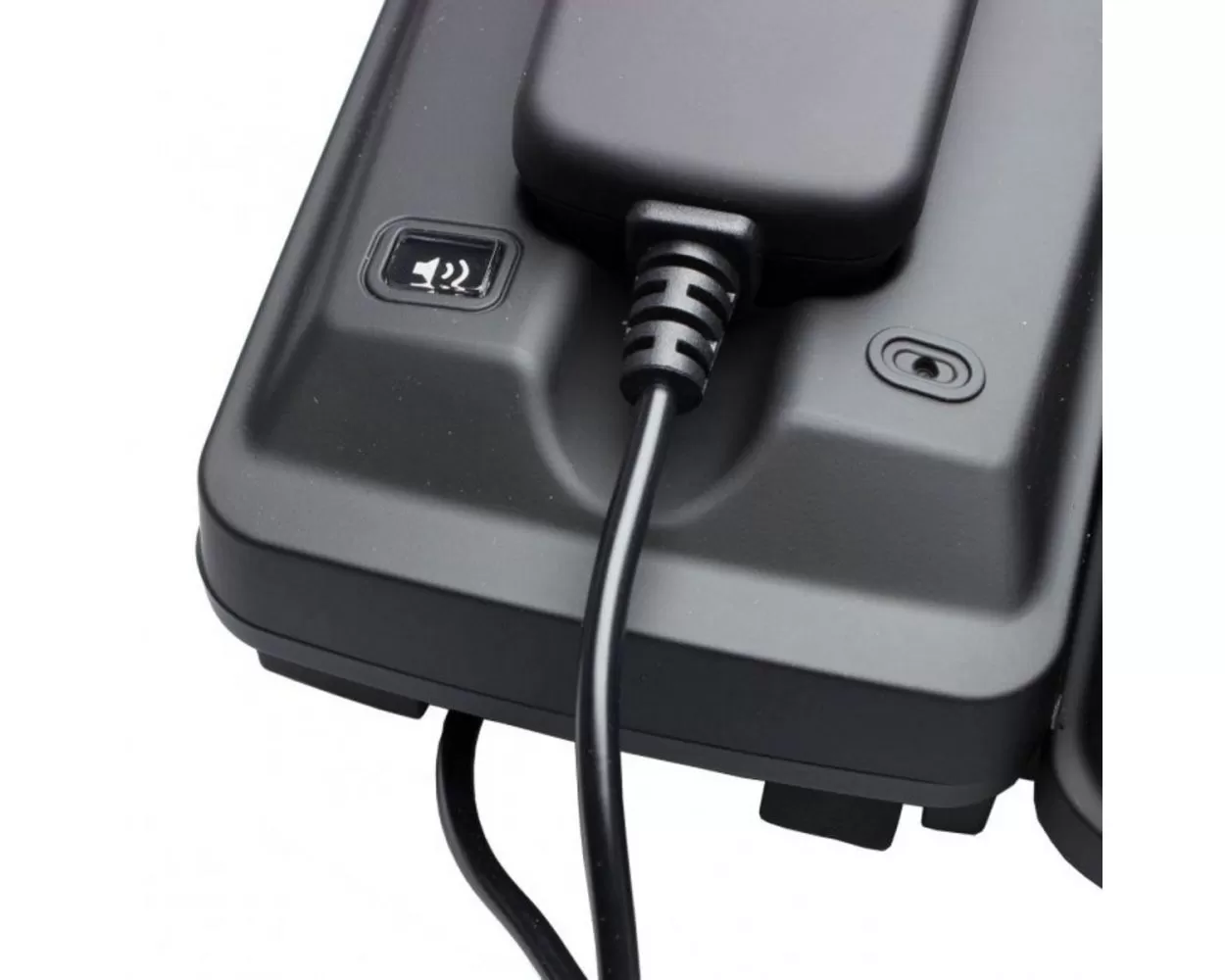

- Dedicated Privacy Handset
- Voice, SMS and Circuit Switched Data capable
- Tracking and SOS (Via the ISatPhone 2 handset)

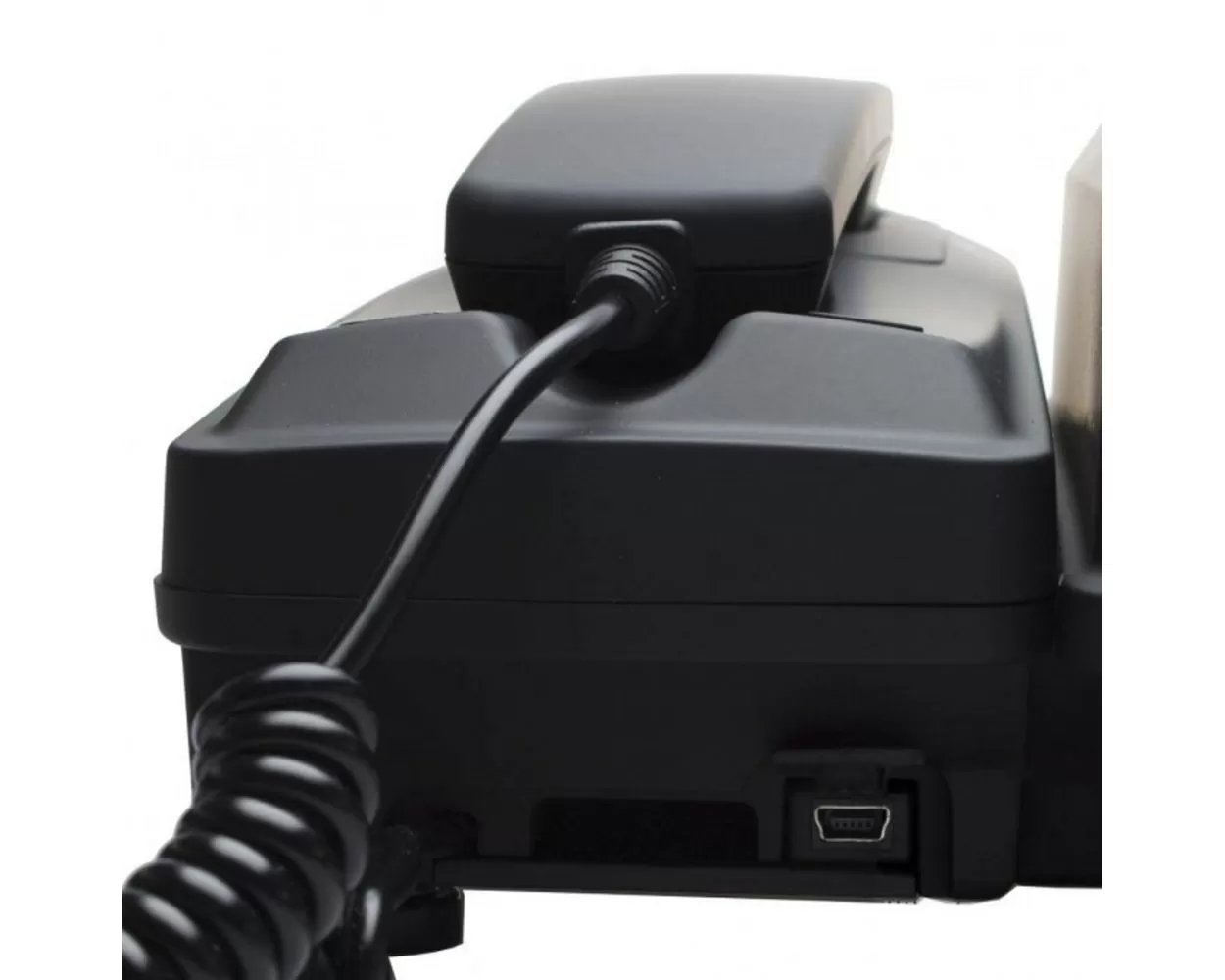

- USB data interface
- Accessory / Ignition sense
- 10-32V DC power input
- AC Plug pack included 110/240 input
- Supports Active and Passive Inmarsat antennas
- Full certified, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
- 2 year repair or replacement warranty
Inmarsat Beam IsatDock2 MARINE Includes:
- IsatDock2 MARINE

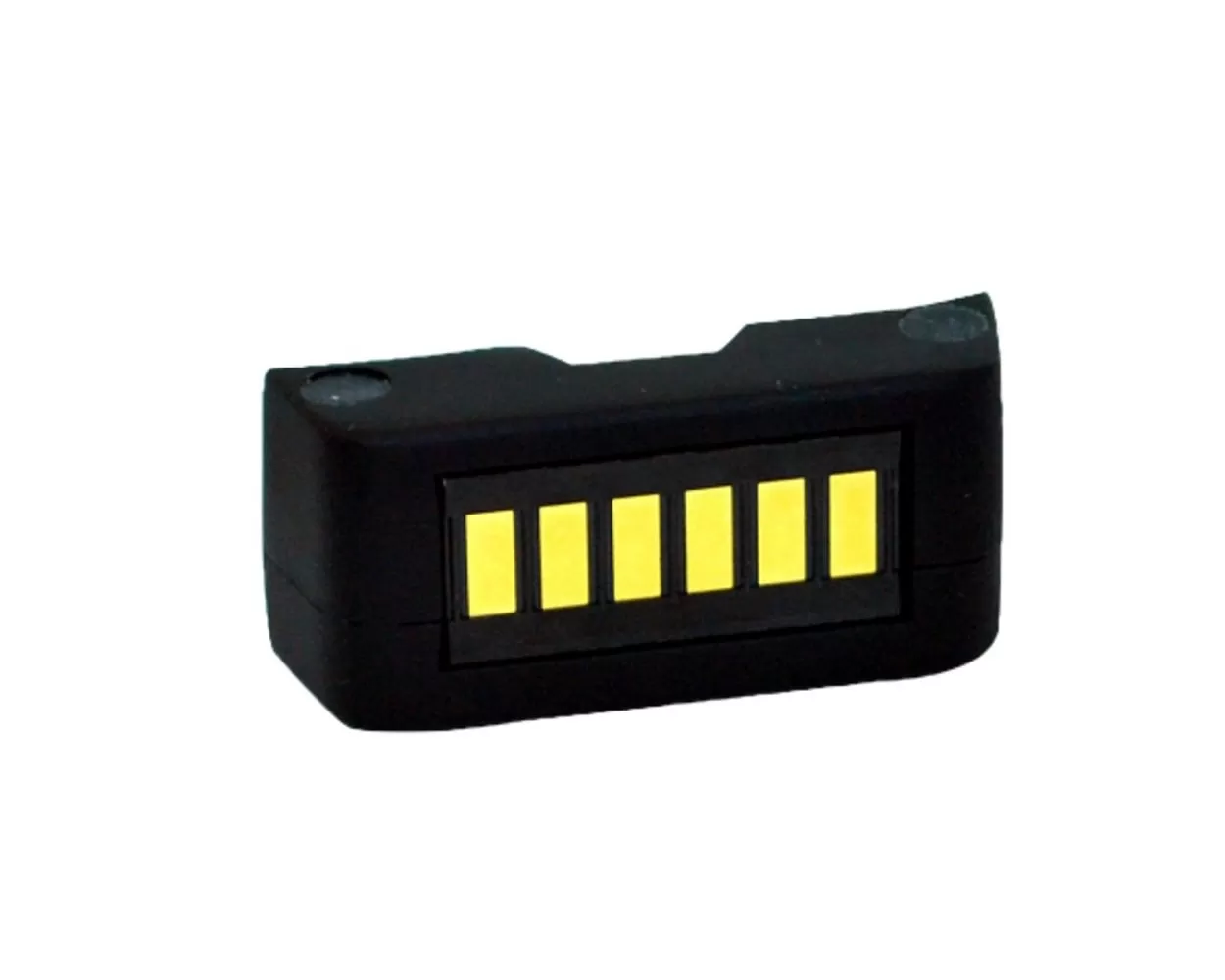

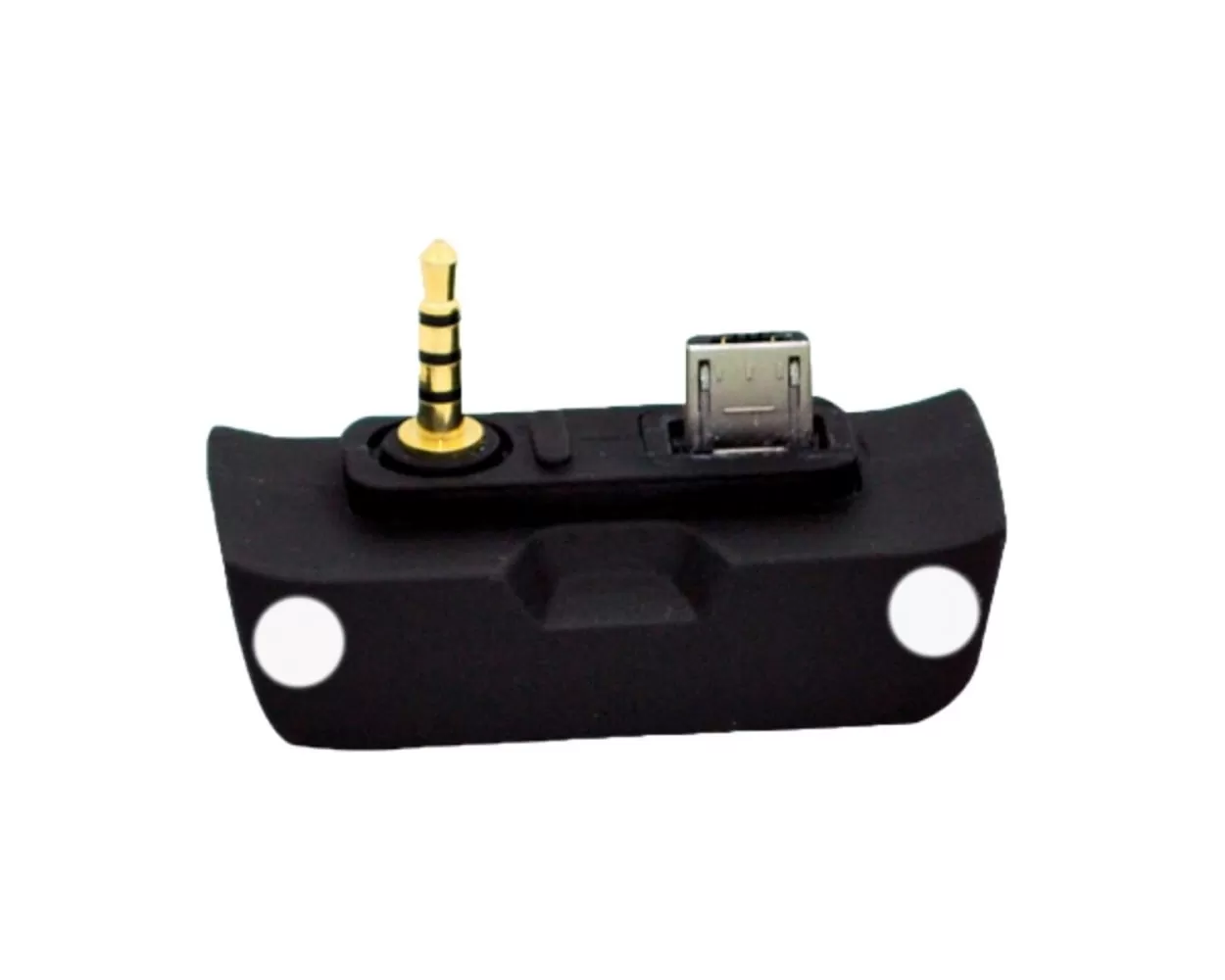

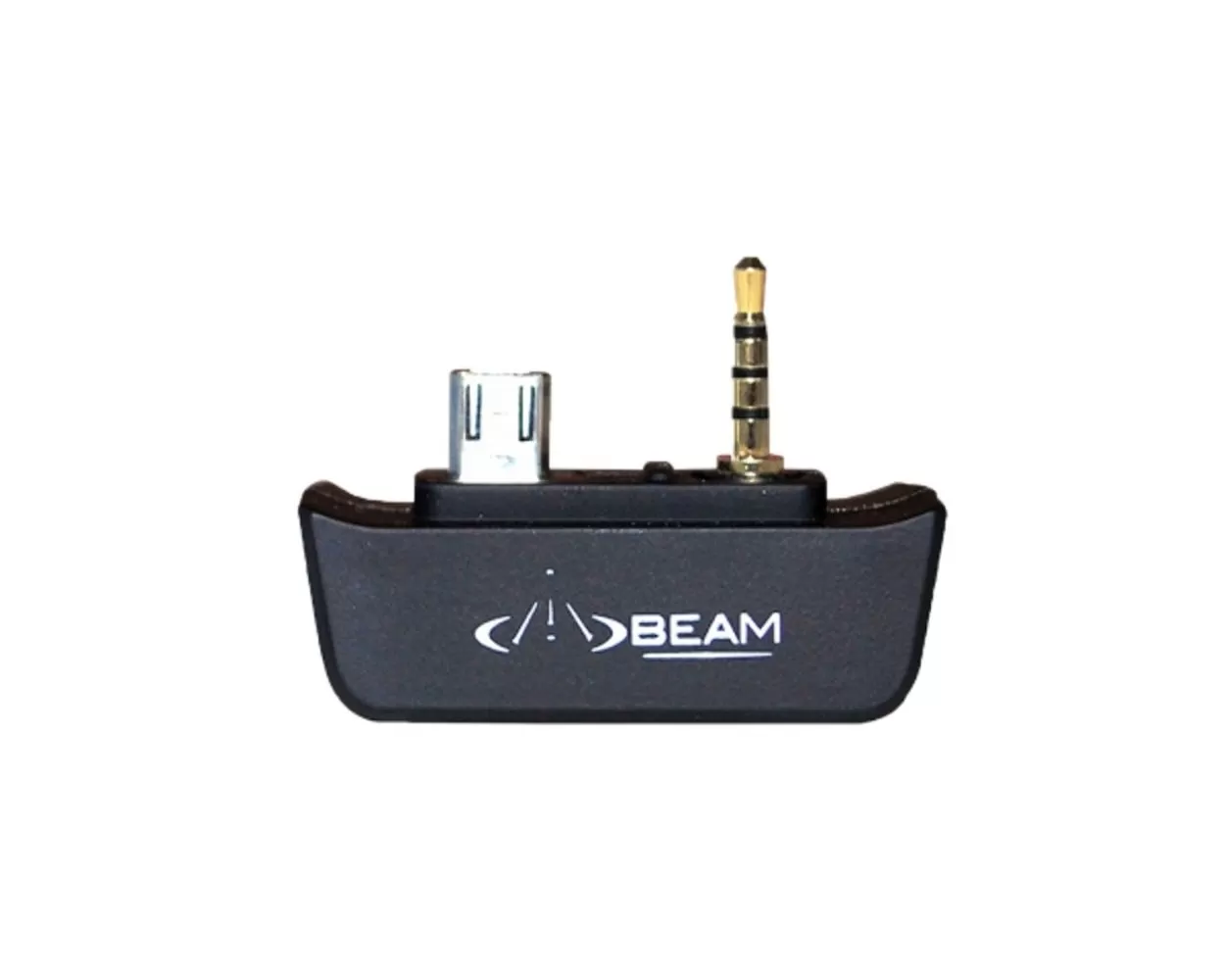

- 2 x IsatDock2 Adaptors

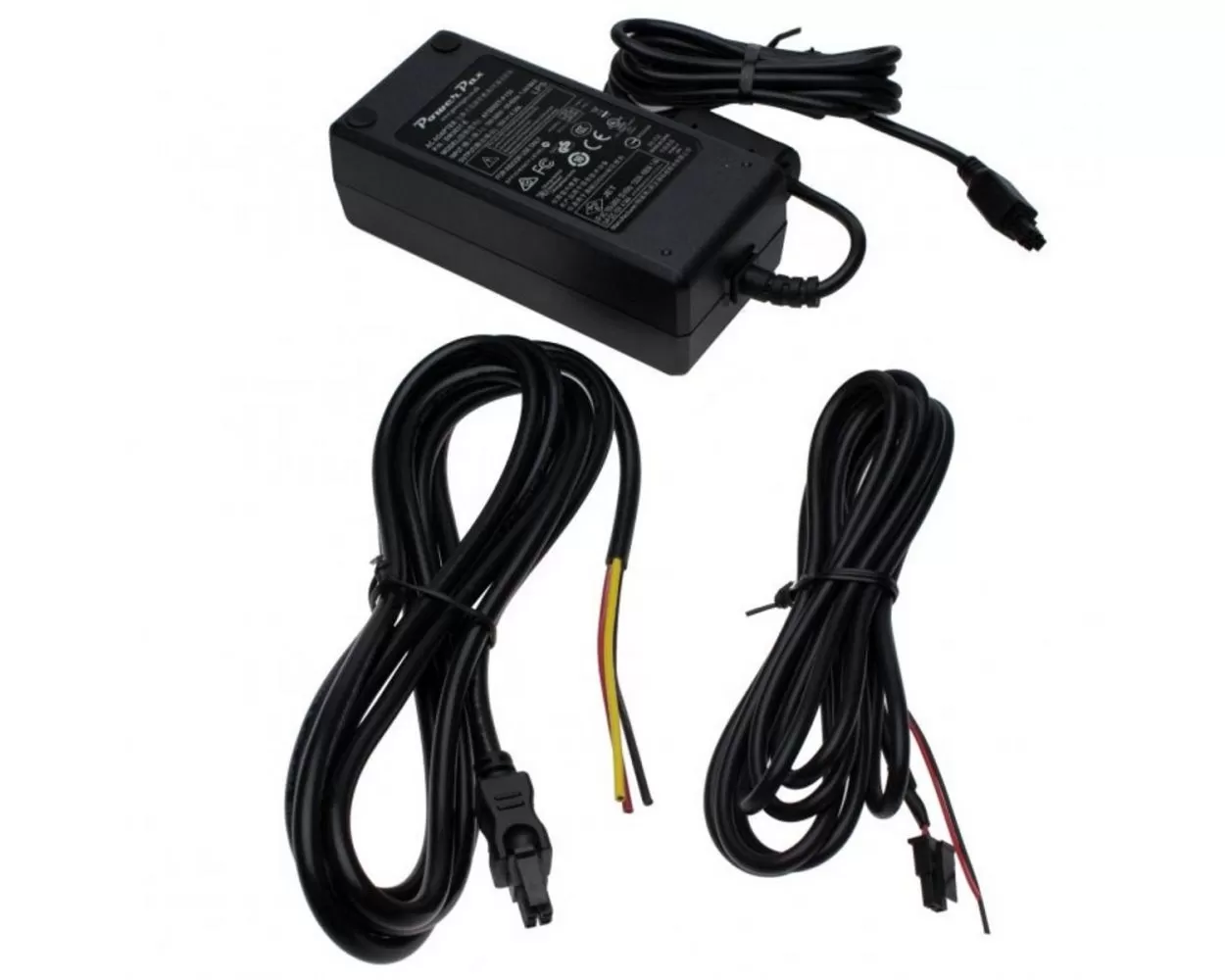

- 10-32 DC Power Cable
- 110-240V AC Plug Pack
- Privacy Handset
- 2m Alert wiring loop
- Wall mounting plate
- User Manual
- Quick Start Guide
Inmarsat Beam IsatDock2 MARINE Features:
- RJ11/POTS
- PABX Integration
- Speakerphone
- Privacy Handset
- Tracking
- Docking
- Charging
- Ringer
- Mute
- USB
- External IO
- Alert
Inmarsat Beam IsatDock2 MARINE Power Specifications:
| Average Power Consumption Current @ 12V | Average | Watts |
| Power w/o IsatPhone 2 | 130mA | 1.6W |
| Standby + Charging | 360mA | 4.3W |
| Transmit + Charging | 875mA | 10.5W |
| Sleep Mode | 5mA | 60mW |
| Peak Current | 3.5A | 42W |
Inmarsat Beam IsatDock2 MARINE I/O Alarm/Alert Specifications:
| Track | In-built - single key press |
| 1 x Alarm Loop | Bare wire - Normally Closed loop IN to OUT |
Inmarsat Beam IsatDock2 MARINE Connectors / Interfaces Specifications:
| POTS/RJ11 | RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance. |
| Antenna | TNC-Female |
| GPS Antenna | SMA-Female |
| 10-32 V DC | 4-way microFit (AC/DC adapter, or DC lead) |
| Privacy Handset Port | RJ9 connector |
| Configuration / Data | USB Micro |
| Speakerphone | In-built speaker/microphone |
| LEDs/Buttons | Status LED, Personal Alert/Track, Mute, Speakerphone, Up and Down |
Inmarsat Beam IsatDock2 MARINE Environment Specifications:
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30 to +70 | -22°F to +158°F |
| Storage | -35°C to +85°C | -31°F to +185°F |
| Battery Charging | 0°C to +45°C | 32°F to +113°F |
| Humidity | < = 75% RH |
Inmarsat Beam IsatDock2 MARINE Physical Specifications:
| Dimensions | mm | inches |
| Unit | 276L x 208W x 100H | 10.87L x 8.18W x 3.93H |
| Outer Box | 330W x 190D x 230H | 13W x 7.5D x 9.1H |
| Weight | kgs | lbs |
| Unit | 1.67 | 3.67 |
| Outer Box | 2.72 | 5.99 |
Inmarsat Beam IsatDock2 MARINE Certifications Specifications:
| Inmarsat Type Approval |
| EMC Compliance |
| FCC |
| CE Compliance |
| Electrical Safety |
| RoHS |
| Industry Canada |
| C-Tick |
| IP54 Rating 5 = Protected against dust limited ingress (no harmful deposits). 4 = Protection against water sprayed from all directions - limited ingress permitted. |
