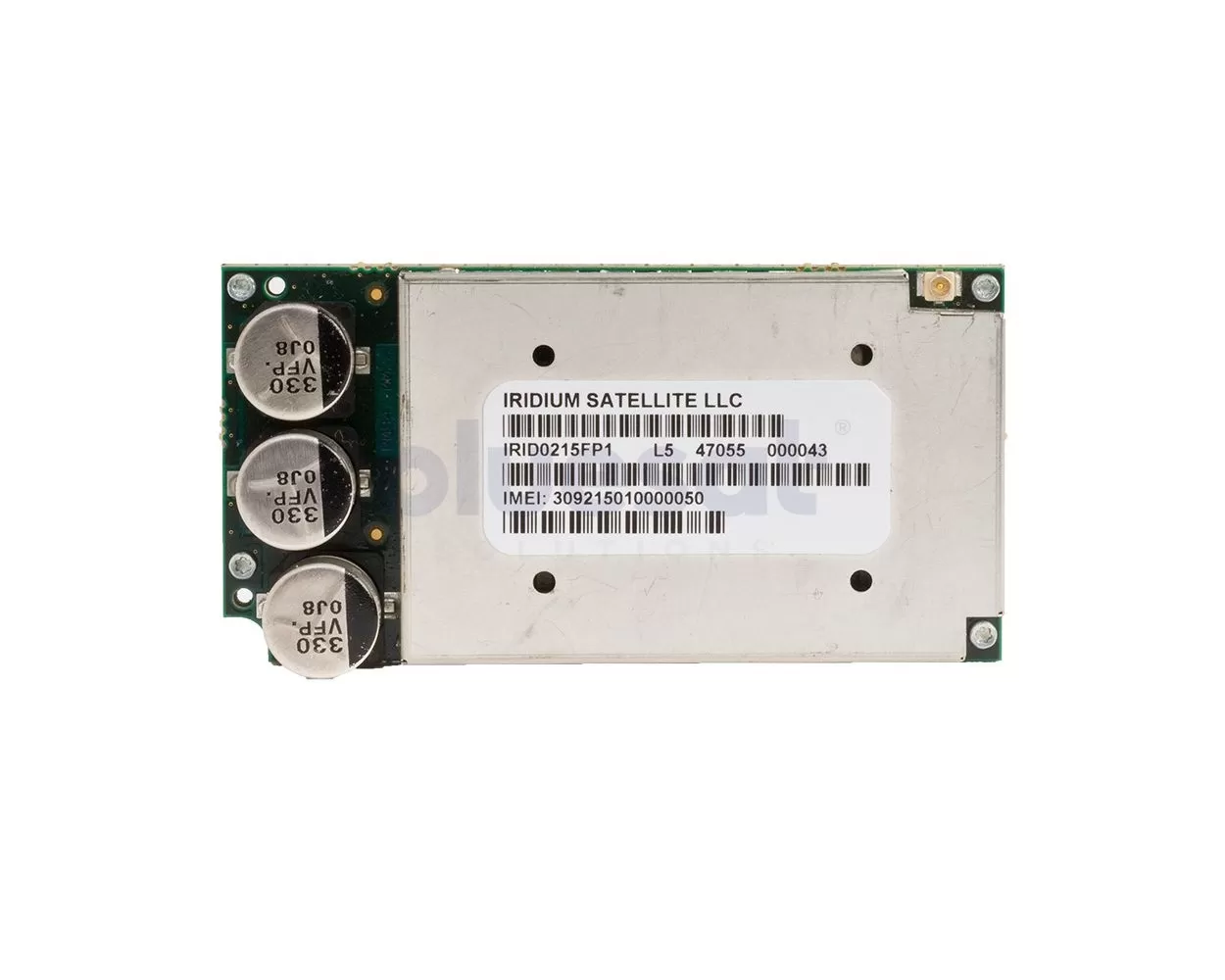

Iridium 9523 Transceiver (LBT9523)
The Iridium Core 9523 module is Iridium’s smallest, lightest and most advanced voice, data, SMS and Short Burst Data (SBD) satellite transceiver in a compact form factor, enabling simplified global voice and data connectivity through the world’s furthest reaching network.
Integrated Solution
The 9523 is ideal for integrators who need a very compact satellite transceiver to incorporate into an integrated solution for a specific application or vertical market.
Over 90% more compact than the 9522b model and featuring standardized connectors, it easily integrates into new partner products to reach previously under-served consumer and vertical markets.
Key Benefits and Features
- Ultra compact form factor
- Pole-to-pole global coverage
- Voice, SMS and Circuit Switched Data capable
- Single board transceiver
- Simple AT Command Set
- Iridium DPL communications
- Iridium Push-To-Talk capable
- Direct PCB integration
- Larger SBD message capability
- FCC, Industry Canada, and ITU approval
- 12 month warranty
The Iridium 9523 transceiver has a larger SBD (Short Burst Data) message capability than the smaller compact SBD modules. Mobile originated - 1960 bytes, Mobile terminated - 1890 bytes.
The 9523 transceiver is capable of simplified global voice and data connectivity through the worlds furthest reaching network, Iridium.
FCC, Industry Canada and ITU approval.
Connectivity, Simplified.
The Iridium Core 9523 easily integrates into connectivity solutions to drive global communications in ways never thought possible.
Simplified Integration
Features standardized connectors and direct printed circuit boards (PCB) integration
Ultra Compact Form Factor
Small, lightweight module offering a compact footprint for powerful connections
Single Board Module
Capacity for embedded applications such as GPS, location-based services (LBS), Wi-Fi, and Bluetooth
Capabilities
Enables all Iridium narrowband voice and data services in one tiny module
Compliance
FCC, Industry Canada, CE, and ITU Approvals
Iridium 9523 Transceiver Mechanical Specifications:
| Dimensions (L x W x H) | 70.44mm x 36.04mm x 14.6mm |
| Weight | 32 g |
Iridium 9523 Transceiver Environmental Specifications:
| Operating Temperature Range | -30 to +70 ℃ |
| Operating Humidity Range | ≤75 % RH |
| Storage Temperature Range | -40 to +85 ℃ |
| Storage Humidity Range | ≤93 % RH |
| Vibration Standard | EN60068-2-14:2009, IEC60068-2-64:2008, EN60068-2-27:2009, SAE J1455, and MILSTD 810 |
Iridium 9523 Transceiver RF Interface Specifications:
| Duplexing Method | TDD (Time Domain Duplex) |
| I / O Impedence | 50 Ohm |
| Multiplexing Method | TDMA/FDMA |
Iridium 9523 Transceiver Power Specifications:
| Input Voltage Range | +3.2 to +6 V |
| Calling Current Average | 110 average mA |
| Calling Current Peak | 300 peak A |
Iridium 9523 Transceiver VBOOST Power Specifications:
| Nominal Voltage | 27 V |
| Absolute Maximal Voltage | +35 V |
| Minimal Voltage During Call Transmit Burst | 10.5 V |
| Typical Power on Call | 2.3 average W |
| Maximal Power on Call | 3.1 average W |
Iridium 9523 Transceiver Network Specifications:
| Telephony | Yes |
| Location Based Services | Yes |
