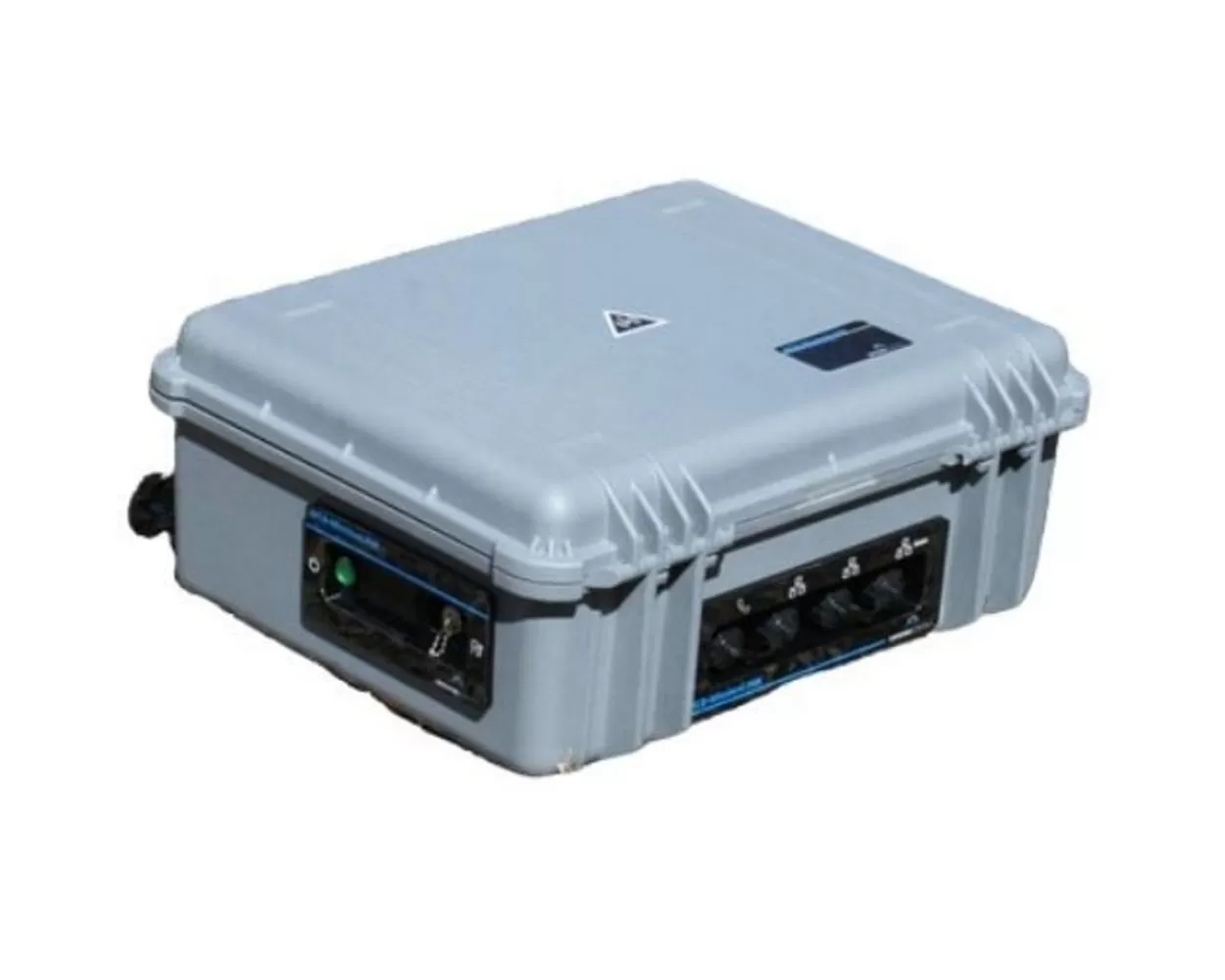

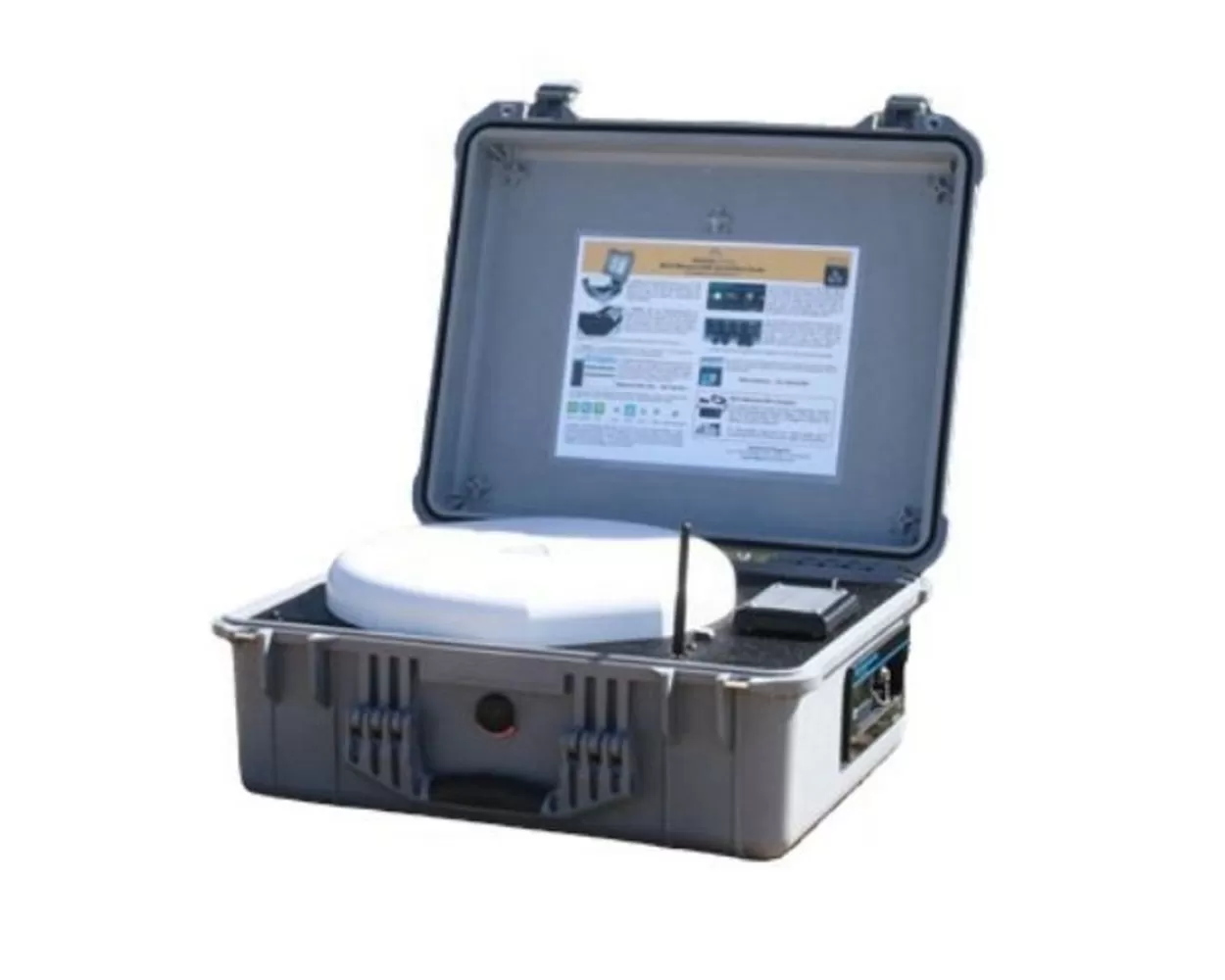

Iridium MCD-MissionLINK Portable Satellite Internet Terminal

Iridium MCD-MissionLINK Portable Satellite Internet Terminal
Global, Portable, Iridium Certus Internet Hotspot. The MCD-MissionLINK is a portable, easy to operate, auto-pointing Certus satellite terminal which provides a powerful Wi-Fi hotspot in any environment.

No pointing, no setup, just place the weather proof case on the ground, boat deck or any surface with a clear view of the sky, then simply turn it on and close the lid.


MCD-MissionLINK Overview
The MCD-MissionLINK requires no user training to operate. Like all of our MCD products, simply place the ‘closed’ weather-tight sealed case on the ground or on a moving vehicle/platform under an open sky, rain or shine, and turn it on – no pointing necessary – and with the case lid closed.

The terminal connects with the Iridium Certus satellite network with speeds of 700Kbps and then broadcasts a Wi-Fi hotspot (up to 300 meters – 1,000 feet) for up to 12 devices to connect to. It runs for about five hours on its internal battery. This portable case uses the new Thales MissionLINK satellite terminal integrated with our proprietary mobile electronics for a ruggedized, self-contained, in-field, user-friendly worldwide communications solution.

100% Global Coverage and Service
Iridium Certus services are 100% global even on the North and South Poles at full available speeds. There’s no place above ground it doesn’t cover – an excellent advantage over other satellite service that have limited service regions or line-of-sight obstructions. The Iridium network uses 66 satellites moving in low-earth-orbit. For more information please visit.





Built for Extreme Environments
The MCD-MissionLINK is enclosed in a watertight hardened plastic Pelican case that is proven to take a beating and keep out the elements. Full operation of the terminal can be done with the case lid closed, so it operates in heavy rain or in sloshing water environments. External ports are inset to avoid breakage with impacts. With an IP rating of IP66, the terminal is dustproof and can take high-pressure water jets from any direction. Besides the onboard cooling fan, there are no moving parts of this system. Cold or hot weather? The MCD-MissionLINK operates from below -22°F to 131°F (-30°C to +55°C).

MCD-MissionLINK Contents
The MCD-MissionLINK integrates the Thales MissionLINK terminal into in a ruggedized Pelican 1450 case (flyaway case) with Iridium's engineered electronics and software.

• MCD-MissionLINK Flyaway Portable Case
• AC/DC power supply (110/240 VAC)
• Standard analog phone
• Mini DC inverter for running off vehicle power
• AC plugs for U.S., U.K., EU, AU, China, N. Europe
• Ethernet cable – 10′ feet / 3 meters
• Compass
• USB flash drive with user manuals
• Carry bag to hold accessories


• Iridium MCD-MissionLINK Terminal Key Features:
• Easy to set up and use. Online within one minute
• 100% Global satellite internet connectivity on the Iridium Certus network
• Broadband speeds of up to 700Kbps
• Wi-Fi hotspot up to 300 meters (1,000 feet)
• Internet, email, voice and SMS messaging services
• Housed in a portable, ruggedized, waterproof case
• Operates stationary or in-motion, on land, or open ocean
• Up to 6-hour battery life for normal use.
• No pointing or aiming... Simply turn the unit on under an open sky.

• Does not require user interaction. No software to run. Establishes AP "Hotspot" automatically.
• Ruggedized. Operates in extreme conditions. Case does
• not need to be opened to operate.
• Connect up to 12 wireless devices. WiFi WPA2 Security
• & MAC address whitelisting.
• Compact case size - 20.66" x 17.20" x 8.40" (52.5 x
• 43.7 x 21.3 cm)
• External all weather Ethernet (RJ-45) and Phone
• (RJ-11) connection ports.
• External ports allow for hard-wired waterproof Ethernet
• and phone connections to any device
• May be plugged into a vehicle 12V power port for
• continuous operation or charging.
• Includes standard analog phone. The RJ-14 jack has
• two separate phone lines.
• No rain fade - Operates in heavy rain.
