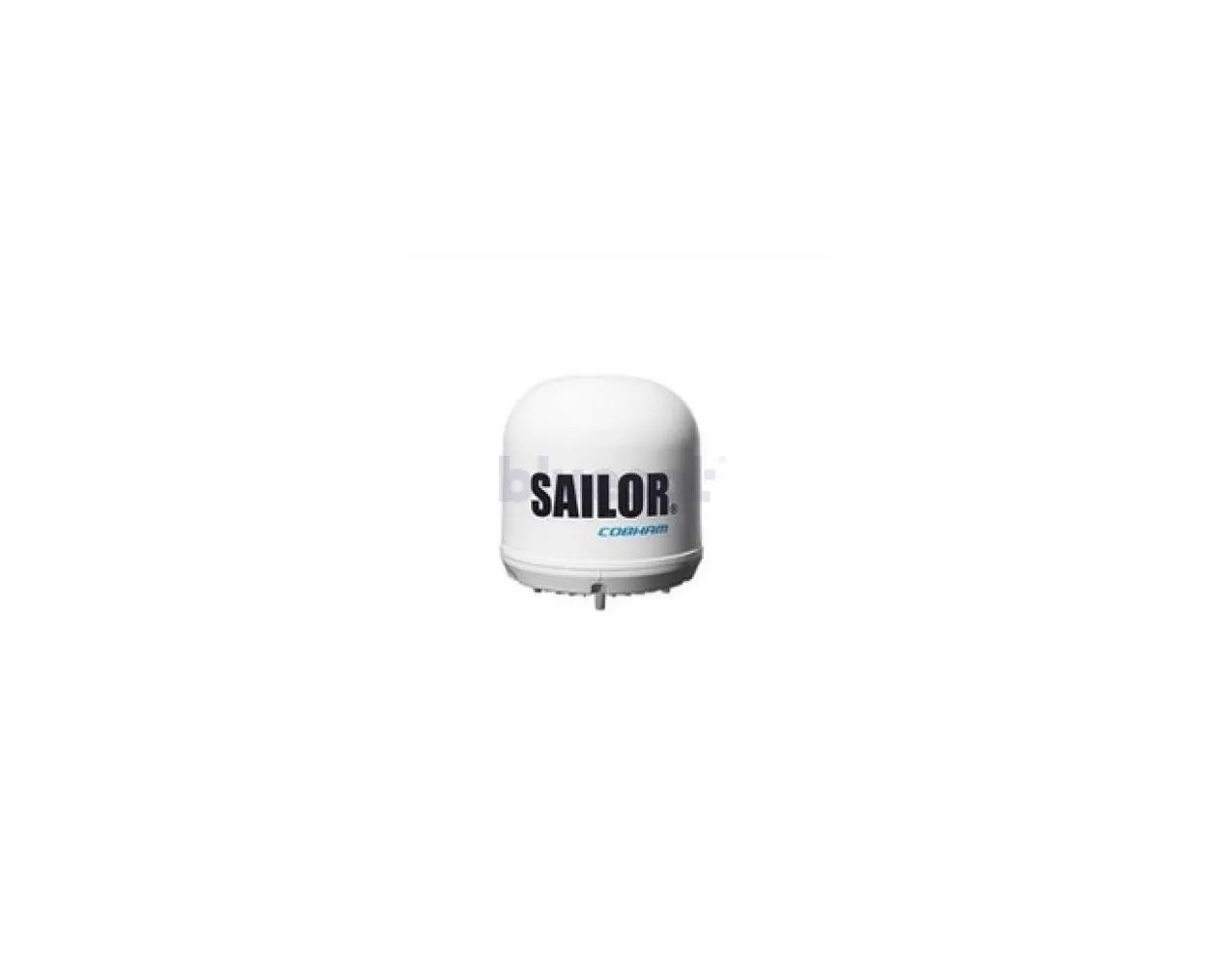

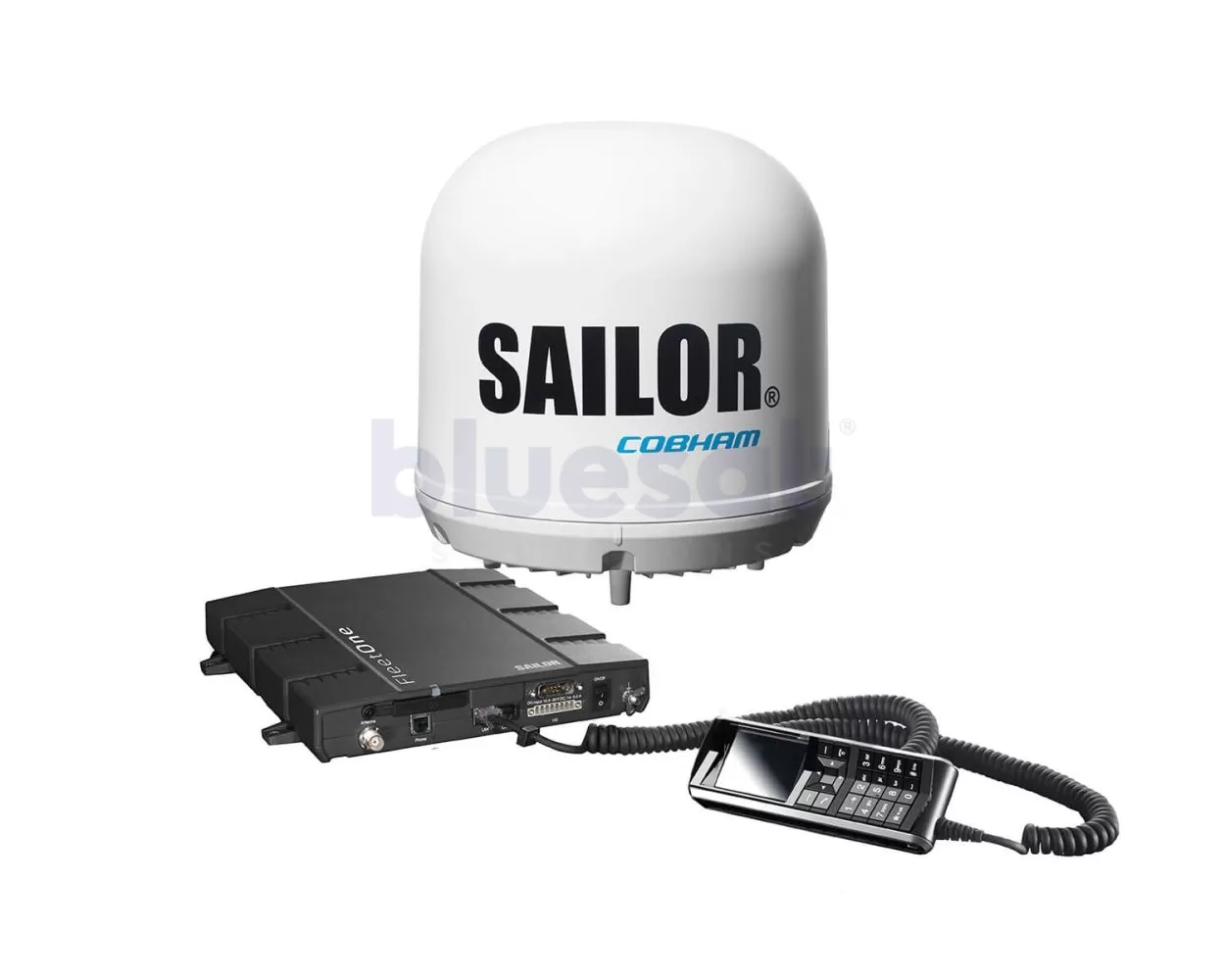

SAILOR Fleet One
Cobham SAILOR Fleet One ensures reliable, global voice calling and Internet connectivity even on smaller boats that don’t have the room, or the budget, for larger satcom antennas.
SAILOR Fleet One is the ideal complement to the new Inmarsat Fleet One service, which utilises the existing Inmarsat-4 satellite constellation to deliver satellite voice and connectivity services that are ideal for use on smaller boats. With its compact, lightweight antenna and simple installation, SAILOR Fleet One is a low-cost entry point to the world of maritime satcoms that keeps you connected at all times.
Small vessels, big power
With its compact, lightweight antenna and simple installation, SAILOR Fleet One is a low-cost entry point to the world of maritime satcom that keeps you connected at all times. It enables reliable voice calling and Internet connectivity on Inmarsat's Fleet One service, which harnesses the power of the established Inmarsat-4 satellite constellation for global coverage.
Diverse applications
SAILOR Fleet One enables data connectivity up to 150kbps and voice calling on a single line. Its capabilities offer significant communications functionality for smaller boat and professional vessel owners. SAILOR Fleet One may be small, but it packs enough power to deliver plenty of bandwidth for email, web browsing, social media, electronic documents/reporting and Machine-to-Machine (M2M) applications.
Easy installation
Because the SAILOR Fleet One antenna is small and light, it is incredibly easy to install. Connecting the antenna to the below deck equipment is simple enough that keen owners can handle the installation and maintenance themselves. Combined with reliable, competitively priced airtime, SAILOR Fleet One is the perfect introduction to satcom for small craft.
Unrivalled pedigree
SAILOR Fleet One is designed to the same high standards as the existing SAILOR FleetBroadband product line, which uses the same Inmarsat-4 satellites as the Fleet One service. This quality is relied on by more than 45,000 users around the world. With ease of use and durability at the forefront, SAILOR Fleet One can be trusted to provide reliable, high quality communications whether cruising offshore or fishing for a living.
Unrivalled pedigree
SAILOR Fleet One is designed to the same high standards as the existing SAILOR FleetBroadband product line, which uses the same Inmarsat-4 satellites as the Fleet One service. This quality is relied on by more than 45,000 users around the world. With ease of use and durability at the forefront, SAILOR Fleet One can be trusted to provide reliable, high quality communications whether cruising offshore or fishing for a living.
Technical Specifications:
APPROVALS
| Inmarsat Fleet One approved. Compliant to RTTE, CE Marked. Testet to FCC part 25 |
FREQUENCY BAND
| Rx | 1518 - 1559 MHz |
| Tx | 1626.5 - 1660.5 MHz 1668.0 - 1675.0 MHz |
| Ch. spacing | 10.5 -189 kHz, Rx 21 - 189 kHz, Tx |
| Ch. size | 1.25 KHz |
RECOMMENDED ANTENNA CABLE
| Cable loss max/min | 20 dB at 1,62 GHz and 1.0 Ω DC loop resistance max. 3 dB at 36 - max. 4 dB at 54 MHz |
POWER SUPPLY AND CONSUMPTION
| DC input range (isolated) | 10.5V to 32V DC |
| Power (max): | 120 W @ 10-32 V |
| incl. antenna & PoE output |
ENVIRONMENTAL CONDITIONS
| Ambient Temperature: | -25 to +55°C |
| Storage: | -40 to +85°C |
| Survival (power on, non functional): | -40 to +80°C |
| Automatic thermal surveillance shuts down system gradually in ease of own temperature | |
| BDU operating humidity: | 95% non-condensing at +40°C |
| ADU enclosure: | IPX6 |
| ADU operating humidity: | “Exposed” according to EN60 945 |
| BDU enclosure: | IP30 |
| Icing (survival): | Max 25 mm |
VIBRATION (ADU)
| Vibration, operational: | Random spectrum 1.05 g rms x 3 axes: 5 to 20 Hz: 0.02 g2/Hz 20 to 150 Hz: -3 dB/octave |
| Vibration, non-operational: | Random spectrum 1.7 g rms 2 h x 3 axes (6 h total): 5 to 20 Hz: 0.05 g2/Hz, 20 to 150 Hz: -3 dB/octave |
SHIP MOTION
| Roll: | +/- 30 deg. per. 4 s, max 0.7 g tan. |
| Pitch: | +/- 15 deg. per. 3 s, max 0.6 g tan. |
| Yaw: | +/- 10 deg. per. 5 s, max 0.3 g tan. |
| Surge: | +/- 0.5g |
| Sway: | +/- 0.5g |
| Heave: | +/- 0.7g |
| Turning rate: | +/- 36˚/s; ACC 12˚/s² |
| Headway speed: | 22 m/s (42 knots) |
| Wind: | 100 knots |
MECHANICAL SHOCK
| 20g/11 half-sine |
ANTENNA CONNECTOR
| ADU: | TNC, female |
| BDU: | TNC, female |
SERVICES
| Standard IP | Up to 150 kbps |
| Streaming IP | - |
| ISDN Data | - |
| SMS (standard 3G | 160 characters |
| Standard Voice | 4 kbps |
INTERFACES
| Ethernet/PoE | 2 ports |
| Phone/Fax (2-wire) | 1 port |
| I/O Connector | 1 connector with 5 configurable inputs/outputs |
| Status LED | LED power indicator |
| SIM Card Slot | 1 SIM Card slot for Fleet One SIM card |
| Router Integral | DHCP/NAT router |
| PBX | Built-in PBX |
Inmarsat Fleet One Postpay Service Plans
