Thales MissionLINK 700
Thales MissionLINK provides global terrestrial communications coverage, anywhere in the world. Unaffected by weather or landscape, it is the solution to depend on for essential communications wherever your mission takes you.
Whether you operate as part of a deployed force or a single individual, this solution is designed to meet your unique challenges through a simple, adaptable and robust design.
MissionLINK operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for fixed sites and mobile users.
Safety Services
- Real-time emergency alert and distress notifications
- Voice and data-enabled delivering up to 3 dedicated voice channels
- Telemedicine capable
- Location tracking
Operational Enhancements
- Enhanced reporting, service logging, mobile connectivity, system/cargo monitoring and other operational requirements
- Embedded 802.11b/g Wi-Fi Access point
- Multiple user capability, up to 12 connected devices
- Application enabled functionality for Android and iOS devices
Thales MissionLINK 700 Includes
- 1100789-501 Kit, Terminal Unit, Mounting Hardware

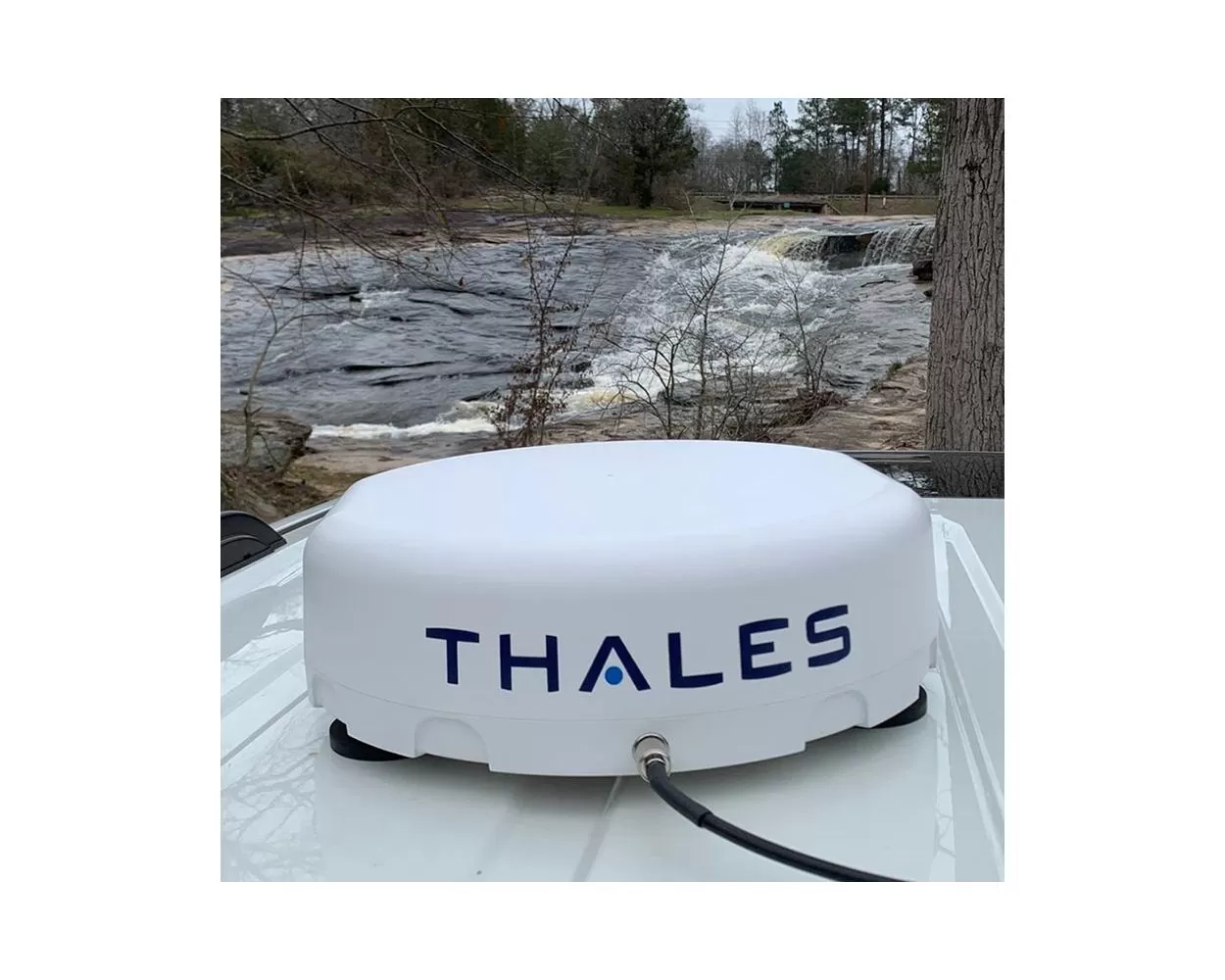

- 1100790-501 Kit, Antenna Magnetic Mount

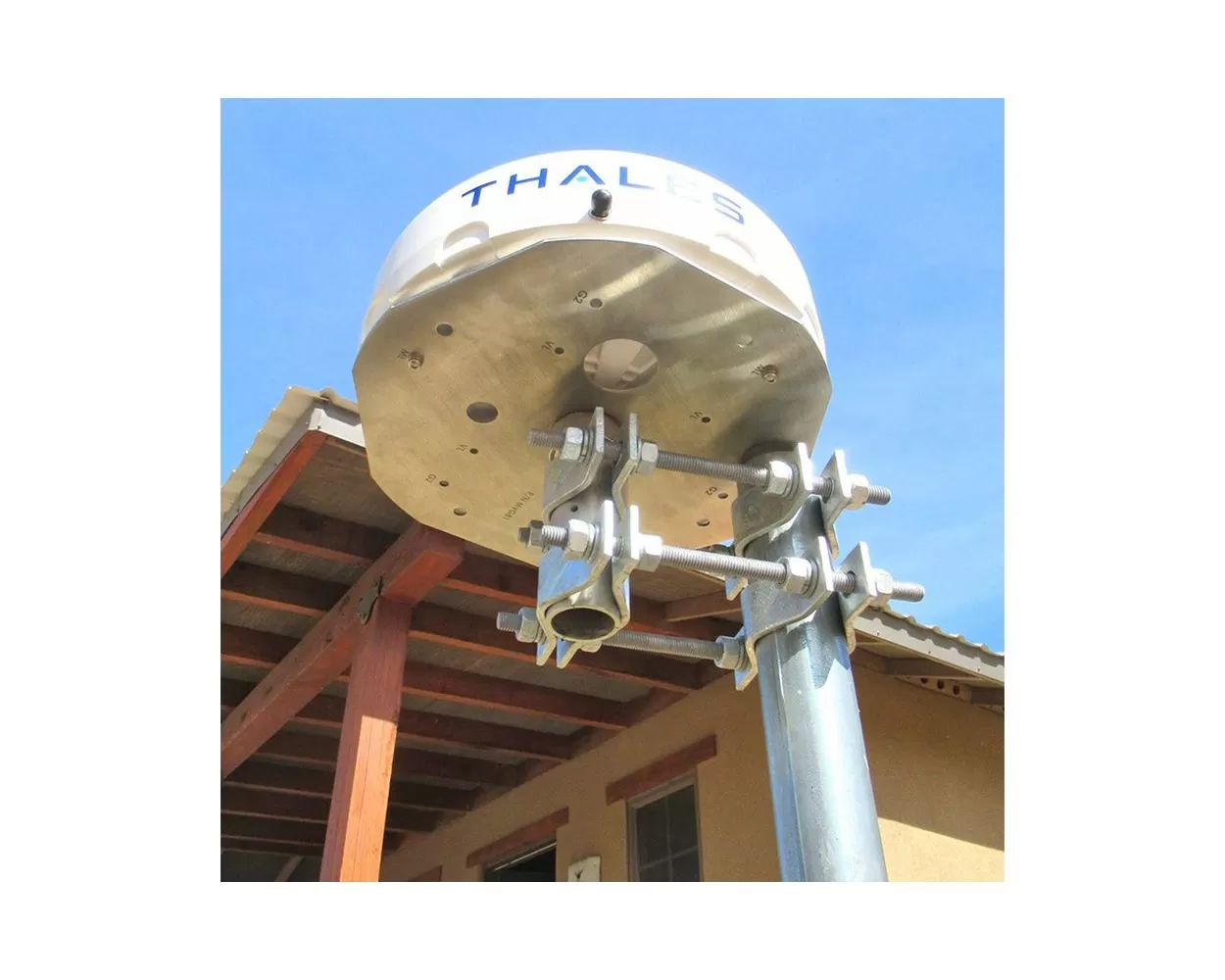

- 1100792-501 Kit, Antenna Mounting Hardware Land

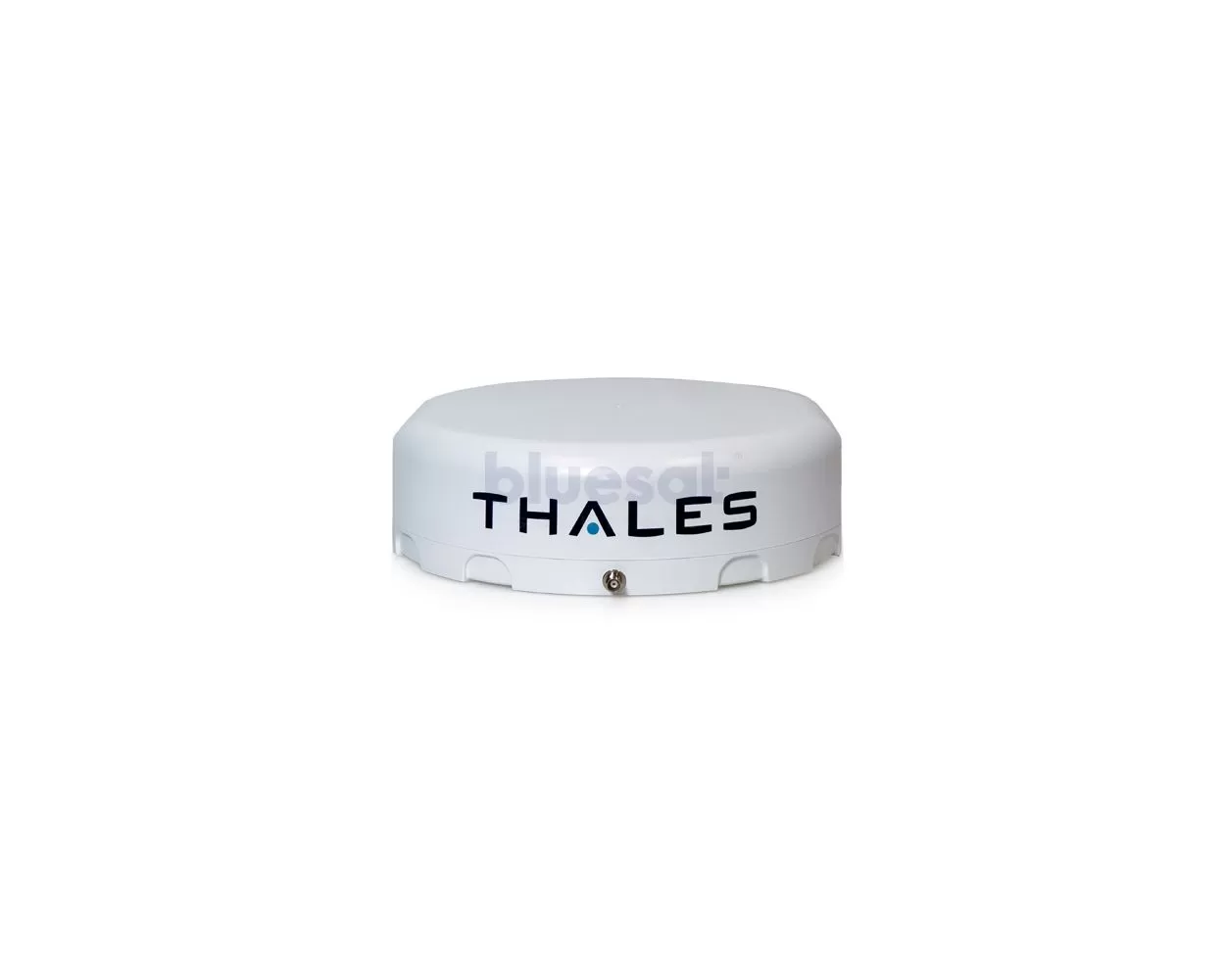

- 1600899-1 Broadband Active Antenna (BAA)
- 3402174-1 Quick Start Guide (QSG) MissionLINK
- 3900011-1 Paper Mounting Template, Terminal Unit
- 3900013-1 Paper Mounting Template, BAA

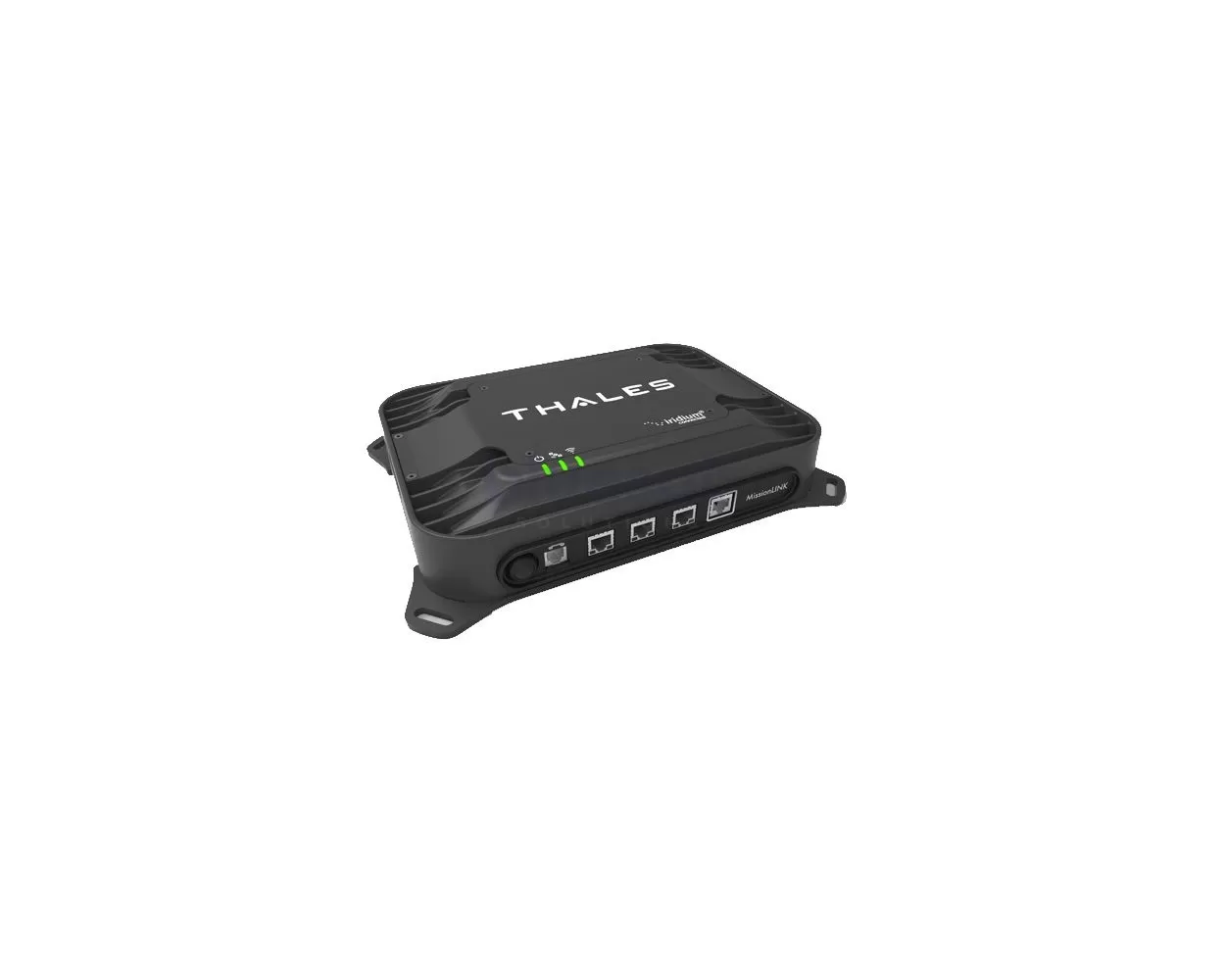

- 4102947-502 Terminal Unit 350, IRIDIUM CERTUS Land
- 855021-010 RF Cable, 10 ft LMR240
- 855024-020 Cable, Vehicle DC Power Harness 20 ft
- 855026-010 Cable, RJ-45 Ethernet, 10 ft
- 85728-001 Wi-Fi Antenna, 2.4 GHz Dipole 2 dBi"
Iridium MCD-MissionLINK Terminal Key Features:
- Easy to set up and use
- High-speed satellite broadband on the Iridium Certus 700 network provided by Ground Control
- 100% Global, Low Latency satellite coverage for critical data and communications
- Connects up to 12 wireless devices (laptops, smartphone, tablets) simultaneously
- 300 meter - 1,000 feet WiFi range. Excellent for working at a distance
- 3 phone lines 2 on the RJ-14 phone jack, and 1-3 for VoIP phones via Ethernet
- Operates in extreme environments -30°C to +55°C / -22°F to +131°F
- WPA2 wireless security with MAC address whitelisting
- Internet domain whitelists and blacklists configurable from terminal
- Location tracking services - Send coordinates to any server with any time frequency
- Equipment manufactured in the USA
- 2 year standard warranty with 3 and 5 year extended warranties available
Thales MissionLINK 700 Specifications:
| Height | 2.3 inches (5.8 cm) |
| Width | 12 inches (30.5 cm) |
| Depth | 9 inches (22.9 cm) |
| Weight | 7.5 pounds (3.4 kg) |
| Power Options 1 | 10–32 VDC |
| Power Options 2 | AC/DC supply with 12 VDC (65 watt nominal/120 watt max) |
| IP Rating | IP31 |
| Front Connectors | RJ-45 LAN (3) Class 2 PoE RJ-45 WAN (1) for cellular, VSAT and other IP connections, RJ-14 POTS (2 independent phone lines) |
| Rear Connectors | DC Power Input (10–32V) MIL-STD-1275D, DC Power Input (+12V Regulated), GPIO (RS-232, +12V out, Emergency, Radio Gateway, Discrete I/O), TNC — RF connection to Antenna, Wi-Fi — Reverse SMA, SIM card slot |
| Mechanical Vibration and Shock | MIL-STD-810G, Test Method 514.6, Procedure 1, Category 4, Annex C MIL-STD-810G, Test Method 516.6, Procedure IV |
Thales MissionLINK 700 Coverage Map:
Thales MissionLINK 700 Comparison Table:
Thales MissionLINK 700 Mechanical Specifications:
| Antenna (ADU) | MissionLINK® 700 | |
|---|---|---|
| Dimensions ( H x Ø ) | 104.1mm x 368.3mm | - |
| Weight | 2810 g | - |
| Iridium Embedded Technology | Iridium Certus 9810 Module | - |
Thales MissionLINK 700 Environmental Specifications:
| Antenna (ADU) | MissionLINK® 700 | |
|---|---|---|
| Operating Temperature Range | -40 to +55 ℃ | - |
| Durability Standard | MIL-STD-810G | - |
| Ingress Protection | IP66 | - |
| Vibration Standard | MIL-STD-810G, Test Method 514.6, Procedure 1, Category 20, Annex D MIL-STD-810G, Test Method 516.6, Procedure IV | - |
Thales MissionLINK 700 Antenna Specifications:
| Antenna (ADU) | MissionLINK® 700 | |
|---|---|---|
| Antenna Design | - | High-Gain, Electronic Phased Array Antenna with No Moving Parts |
Thales MissionLINK 700 Power Specifications:
| Antenna (ADU) | MissionLINK® 700 | |
|---|---|---|
| Power Supply | Directly Powered by Terminal | - |
| Input Voltage Range | 24 VDC | - |
Thales MissionLINK 700 Network Specifications:
| Antenna (ADU) | MissionLINK® 700 | |
|---|---|---|
| Additional Networks | - | Easily Integrates with Terrestrial Cellular or VSAT with Built-in Preferred Routing Switch |
| Telephony | - | Up to Three (3) Concurrent Voice Lines |
| Streaming Data | - | 256 Kbps Streaming Capable |
| Location Based Services | - | Yes |
Thales MissionLINK 700 Broadband Specifications:
| Antenna (ADU) | MissionLINK® 700 | |
|---|---|---|
| Data Speed Uplink (UL) | - | 352 Kbps |
| Data Speed Downlink (DL) | - | 704 Kbps |
Thales MissionLINK 700 Wi-Fi Specifications:
| Antenna (ADU) | MissionLINK® 700 | |
|---|---|---|
| Wi-Fi Enabled | - | Yes |
