Thales VesseLINK 700 Certus Marine Terminal

Fastest, Most Featureful Certus Terminal on the market
Thales VesseLINK provides global satellite coverage for maritime communications. With uninterrupted coverage from pole to pole, it is the solution to depend on for essential communications.

Suitable for ships or fleets of any size, VesseLINK easily integrates with your existing equipment to fully digitize your vessel. VesseLINK operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe, including deep oceans and poles. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for captain and crew. VesseLINK comes with an intuitive, user-friendly interface and can be quickly integrated into existing vessels or new fleets. It also includes built-in upgradeability to future-proof your investment and ensures peak speed and performance.

Reliable Communications
VesseLINK provides dependable global maritime communications for users to stay connected whilst at sea, anywhere in the world. Through the Iridium Certus® broadband service, VesseLINK operates on a network with over 66 satellites that cover 100% of the globe, including deep oceans and polar regions.

The VesseLINK solution utilises Iridium Certus® to provide a highly reliable service for mobile and voice, text and web communications for all crew.

Safety Services

• Voice and data-enabled delivering up to 3 dedicated voice channels
• Telemedicine capable
• Location tracking

Operational Enhancements

Enhanced at-sea reporting, service logging, crew connectivity, system/cargo monitoring and other operational requirements
Real-time weather
Embedded 802.11b/g Wi-Fi Access point
Multiple user capability, up to 12 connected devices
Application enabled functionality for Android and iOS devices

Multi-Services Platform

• IP data sessions up to 700kbps (down) /352kbps (up)
• Streaming up to 256kbps (future)
• 3 high quality voice lines
• Location tracking

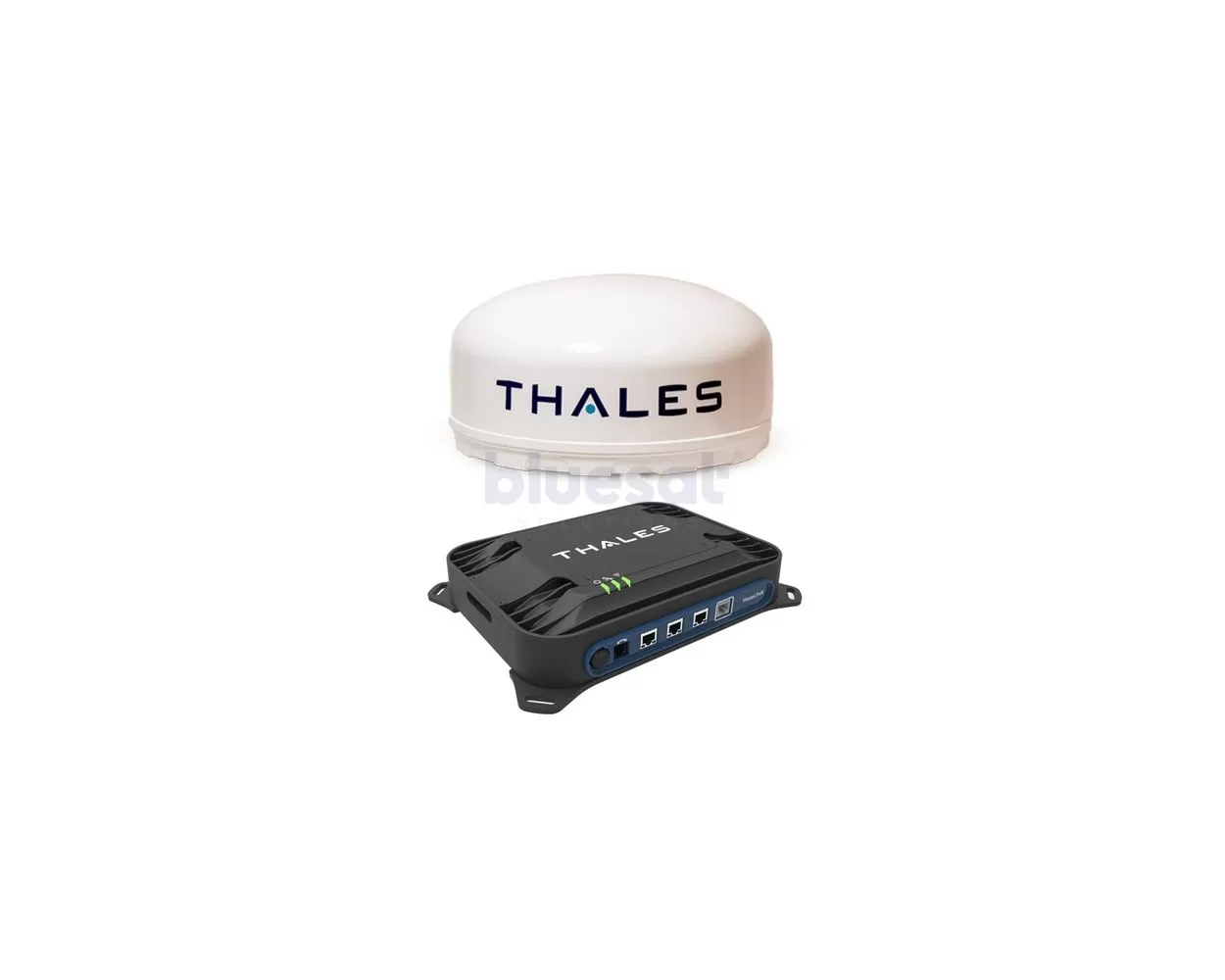

Thales VesseLINK 700 Certus Marine Terminal Includes

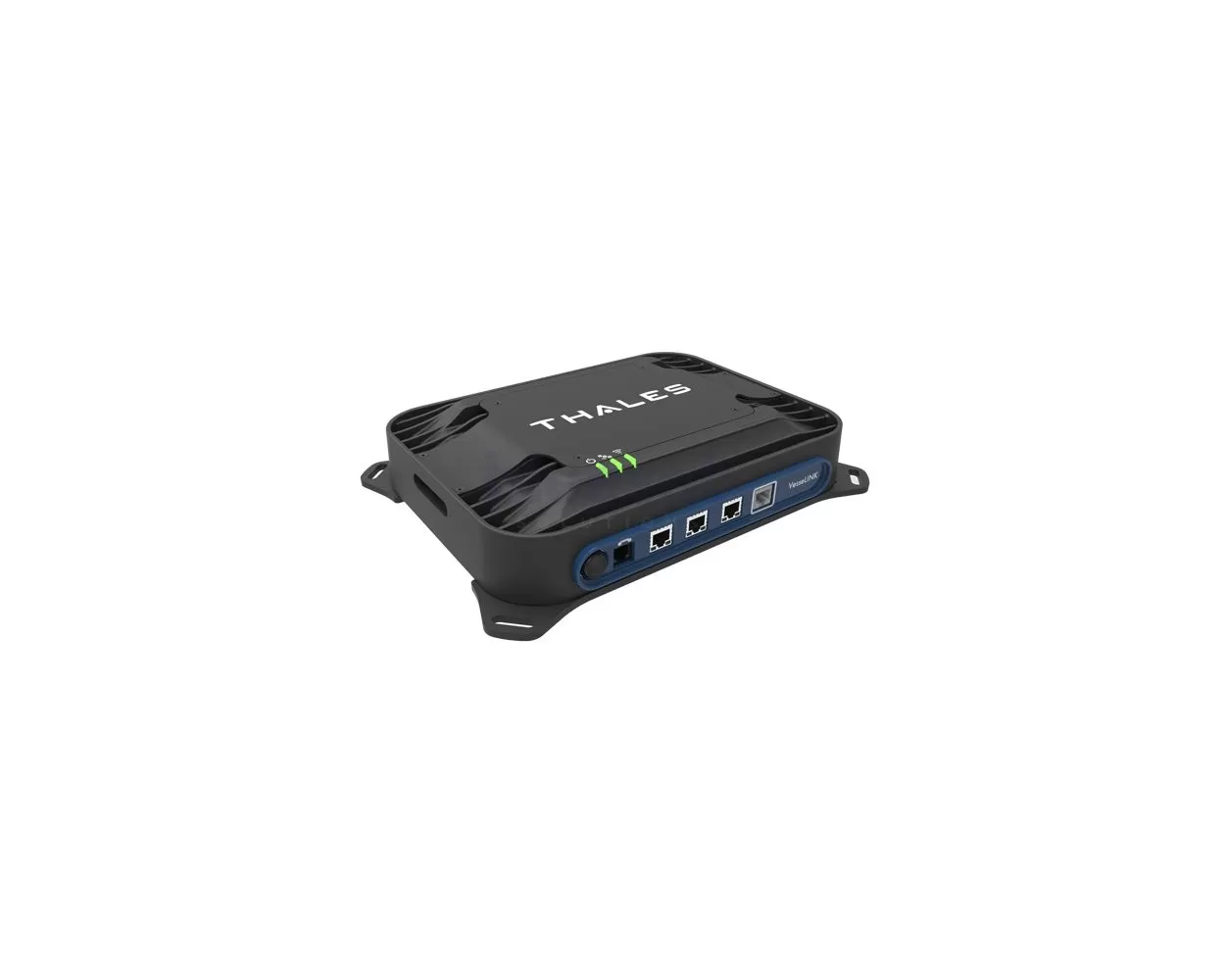

• Thales VesseLINK 700 Below Deck Unit (BDU terminal)

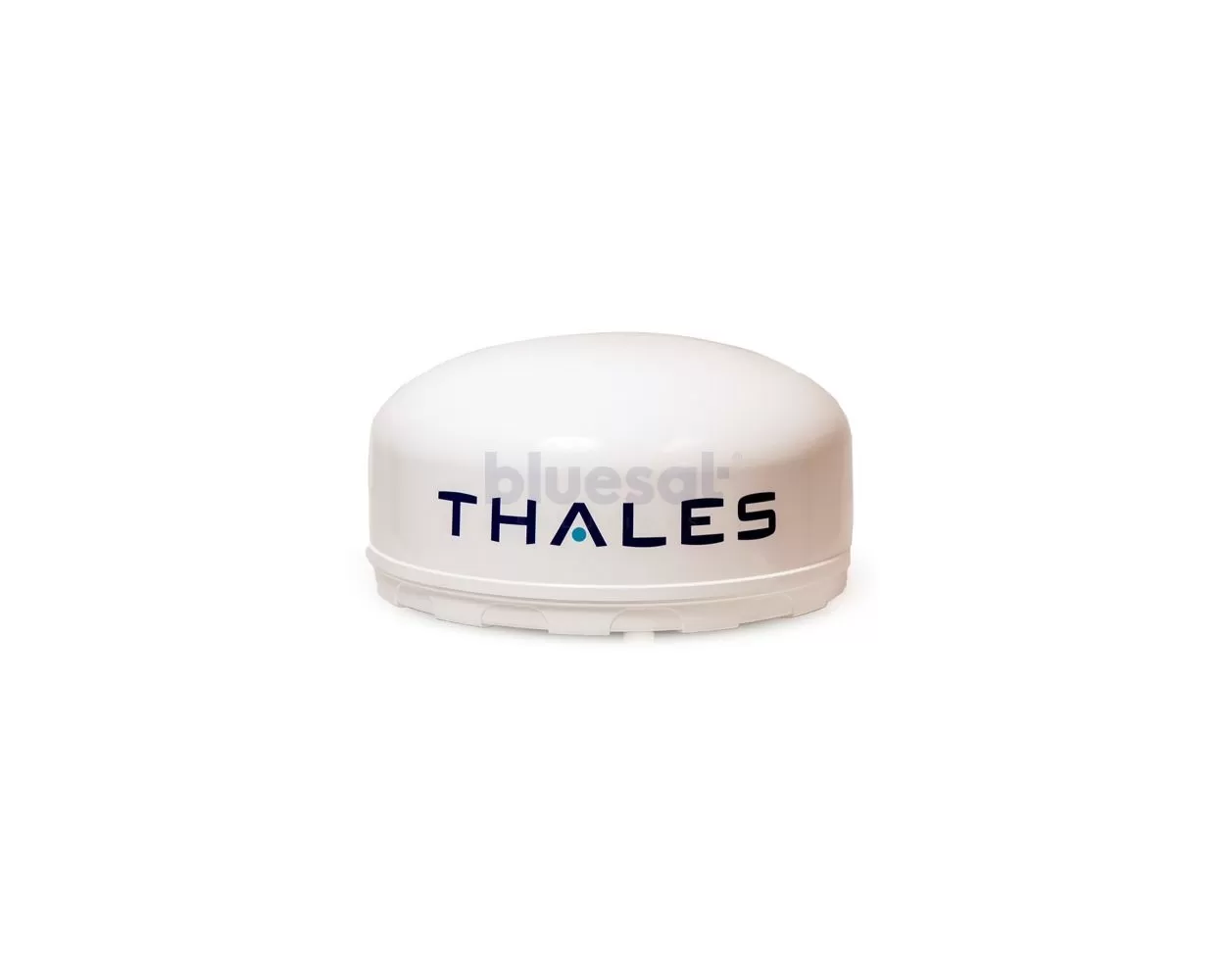

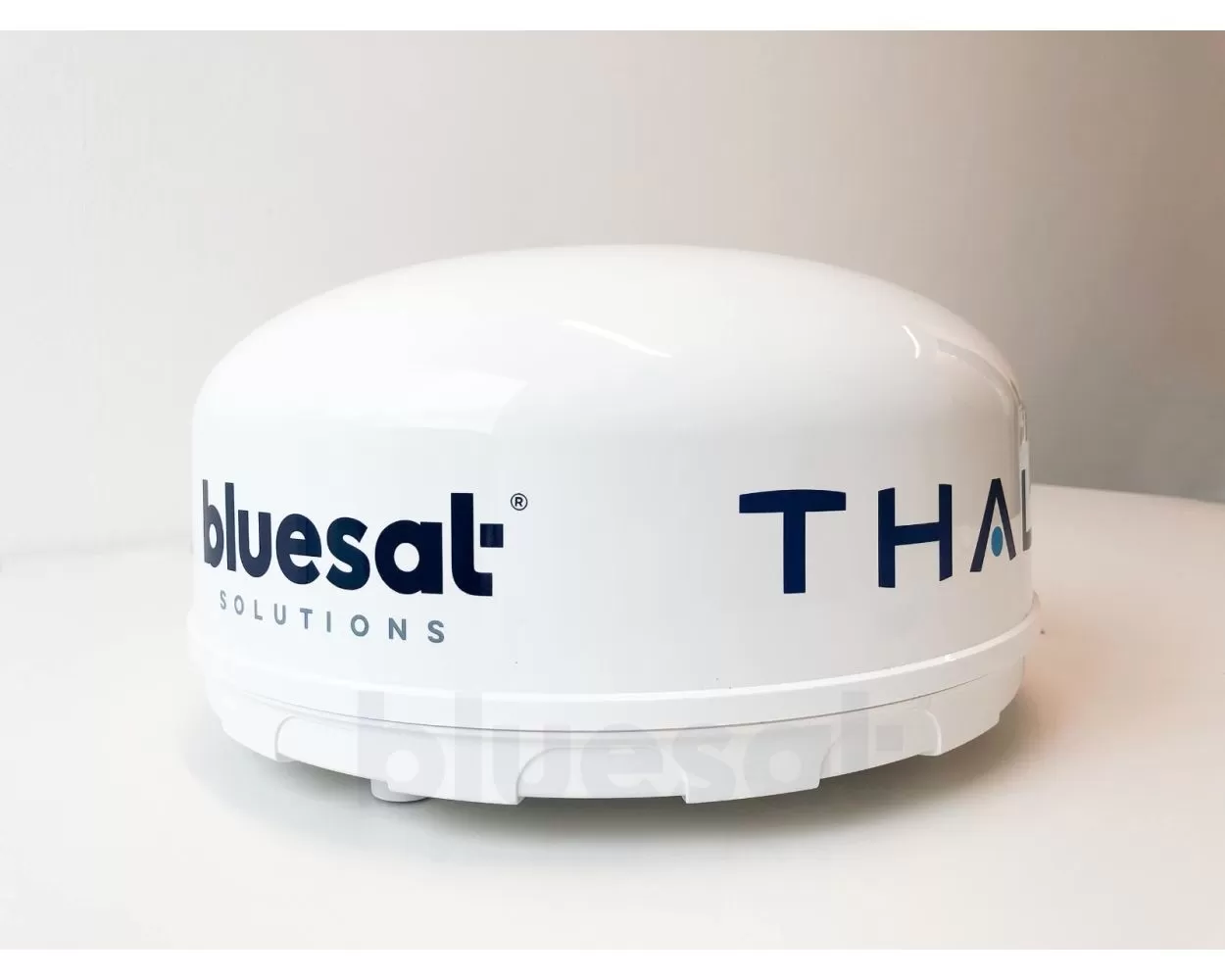

• Thales VesseLINK 700 Above Deck Unit (ADU antenna)
• Wi-Fi antenna

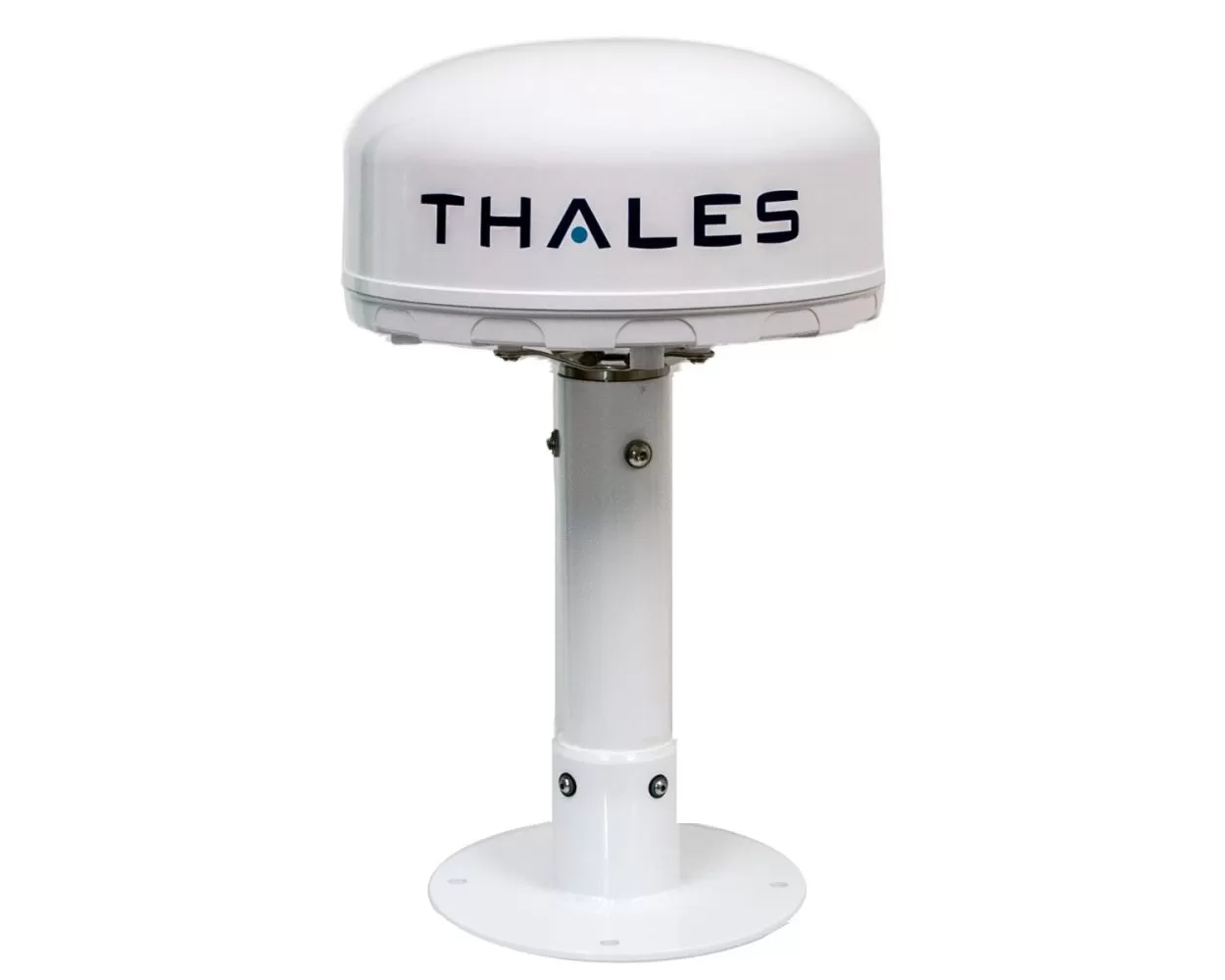

• ADU standard mounting kit
• BDU standard mounting kit
• 3 m Ethernet cable
• Template drawings antenna and terminal
• VesseLINK 700 Quick Start Guide (QSG)

Thales VesseLINK 700 Certus Marine Terminal Key Features:

• Easy to set up and use. Once the unit is on, there's global internet and phone
• High-speed satellite broadband on the Iridium Certus 700 network provided by Ground Control
• 100% Global, Low Latency satellite coverage for critical data and communications
• 300-meter - 1,000-feet Wi-Fi range. Excellent for penetrating thicker walls.
• Connects up to 12 wireless devices (laptops, smartphone, tablets) simultaneously
• 3 upgraded phone lines, 2 on the RJ-14 phone jack, and 1-3 for VoIP phones via Ethernet
• Designed to operate in extreme environments
• Location tracking services (GNSS: GPS) - Send coordinates to any server with any time frequency
• Equipment manufactured in the USA
• 2 year standard warranty with 3 and 5 year extended warranties available
• Robust, Light-Weight Communications for at Sea Operations and enhanced safety features
• Delivering data and voice communications with low latency
• IP Data Delivers Up to 352 Kbps Transmit/704 Kbps Receive
• Streaming IP data up to 256 kbps
• Rated for Water, Vibration, and Shock Resistance
• Optimized for VSAT Companion Use with Built-In Preferred Routing Switch
• WAN port with automatic failover between alternate WAN(VSAT, Cellular, etc) and Certus Service
• Option to use as a Reliable VSAT Back-Up
• High-Gain, Electronic Phased Array Antenna with No Moving Parts - Solid State
• SBD & circuit switch (up to 64kbps) (Iridium Short Burst Data service)
• Easy to use interface, all functionality available at a distance
• Accessible Remote Admin Management
• Ruggedized Android tethered handset - IP67 rated single cable Antenna
• 4G LTE ready, softphone application for iOS and Android
• WiFi multiuser capability for up to 5 devices, Android and iOS Apps
• Rack or hull mounted installation
• Embedded 802.11b/g Wi-Fi access point
• Multiple user capability, up to 12 connected devices
• Voice mailbox, no call forwardiung under Iridium Certus
• outdoor range 10 m - 20 m
• Built-in traffic filter (blacklist (domain) / whitelist (domain) / port blocking )
• Antenna type Planar Helix
• API and command set for secure remote management by Partners
• Multi language interface (English, French, German, Russian, Spanish)
• PTT (Iridium Push-To-Talk)
• Flexible and attractive 3 months pricing plans.
• Future-proofed solutions for higher speed services
• Full-Featured Compact System
